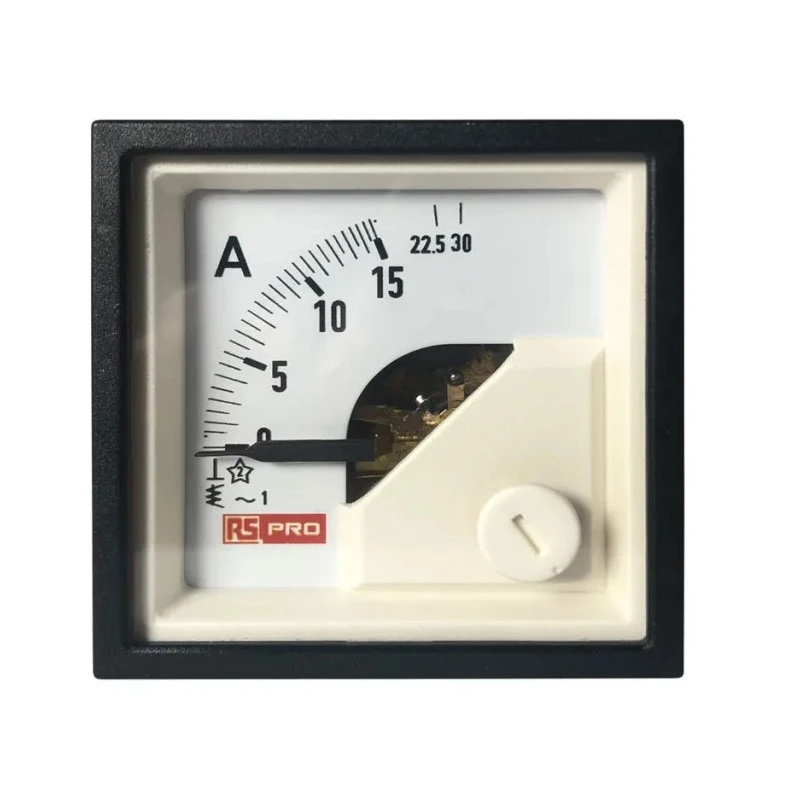

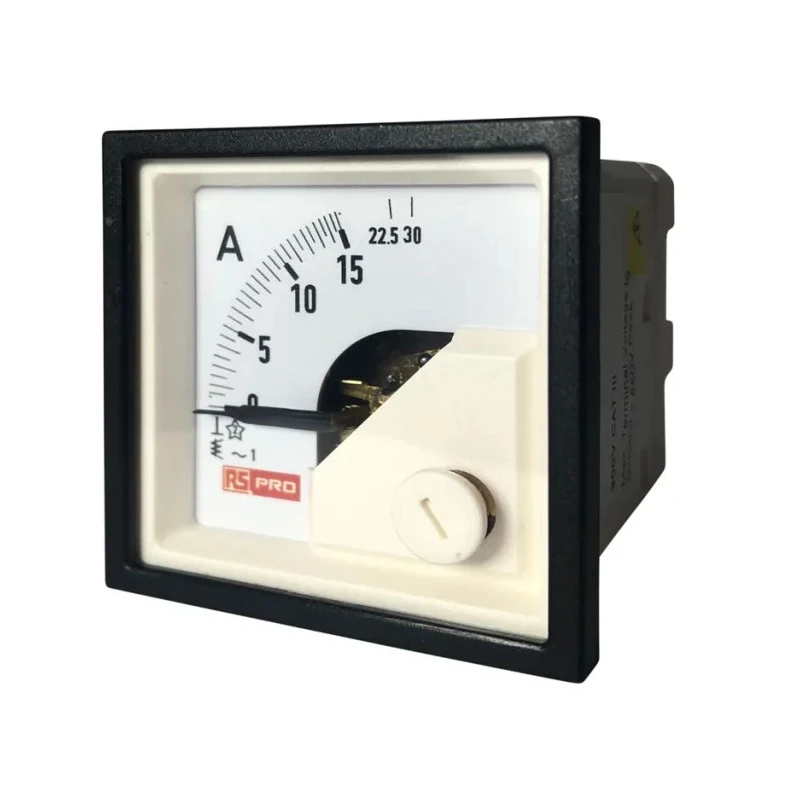

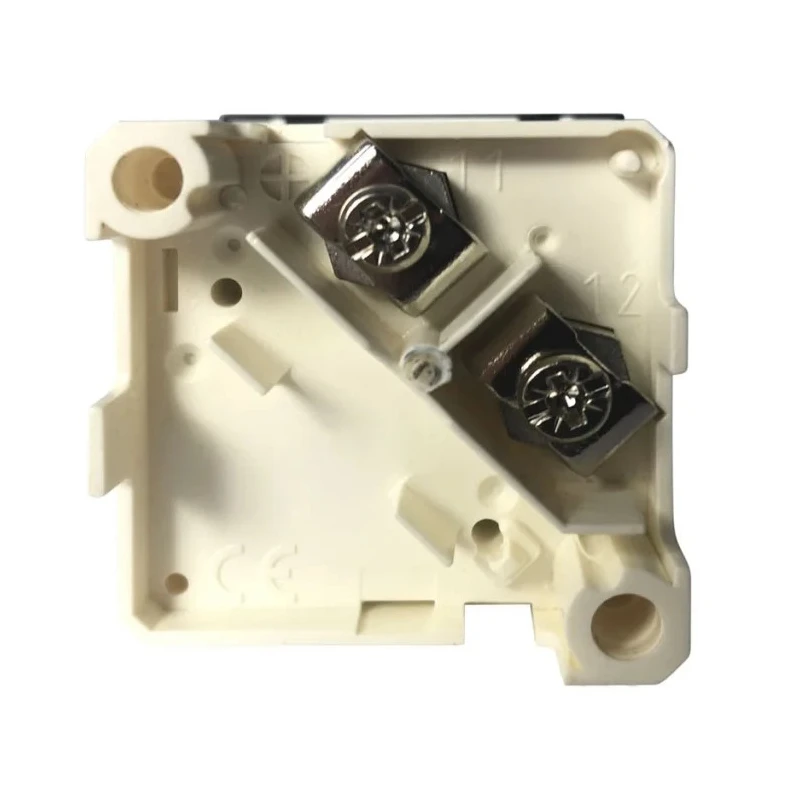

RS PRO Analogue Panel Ammeter 30 A AC, 45 mm x 45 mm, 1 % Moving Iron 186-2423
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2423 |
| Depth | 72mm |
| Series | RS PRO |
| Maximum Operating Temperature | 65°C |
| Current Type | AC |
| Pointer | Knife-edge type |
| Meter Accuracy | 1 % |
| Minimum Operating Temperature | -10°C |
| Shock Resistance | 15g for pulse duration of 11 milliseconds |
| Overload | 2 times nominal current (continuous) |
| Standards/Approvals | DIN 46200/46282, VDE / VDI 3540, IEC 529, 2014/35/EC, CE, IEC 61010, DIN 43701, DIN 43802, DIN 43807, ISO 20653:2006-08, UL 94 V-0, IEC51/DINEN60051, DIN 43718, 93/68/EEC, VDE 0100-410:2018-10, 2014/30/EC, DIN IEC 61554, EN 61010 |
| Cutout Height | 45mm |
| Cutout Width | 45mm |
| Maximum Measurement | 600 V dc, 1000 V ac |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 30 A |
| AC Ammeter nominal range | 100mA to 100A direct connection |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
Key Features
- The ammeter utilizes a moving iron element for true RMS value measurement.
- Its compact 45 mm x 45 mm square polycarbonate case suits panel mounting.
- Operating temperature ranges from -10°C to 65°C, ensuring reliable industrial use.
- Features include knife-edge pointer, 0° to 90° deflection, and 2 times overload capability.
- Compatible frequency range spans 15 Hz to 400 Hz for versatile applications.
- The device is shock-resistant withstanding 15g pulses lasting 11 milliseconds.
- Suitable for machinery consoles, control gear panels, and switchgear mounting.
- Complies with multiple standards such as IEC 61010, VDE 0100-410, UL 94 V-0, and CE certification.
Product Description
RS PRO 186-2423 Analogue Panel Ammeter is a reliable AC measurement instrument designed for industrial and process control applications. This ammeter features a 30 A maximum current input with 1% meter accuracy, ensuring precise readings on machinery and control panels.
The instrument employs a moving iron mechanism that enables true RMS current measurement, providing accuracy substantially independent of waveform variations. The scale is calibrated down to 10% and supports overload measurement up to 6 times nominal current, useful for evaluating motor inrush currents.
Housed in a rugged moulded polycarbonate square enclosure with a 45 mm cutout height and width, it fits neatly into standard panels and consoles for industrial and electrical automation systems. The 72 mm depth allows easy installation in control boxes.
With an operating temperature range spanning -10°C to 65°C and less than 75% noncondensing relative humidity, this ammeter is robust for demanding environments. Its knife-edge type pointer smoothly deflects 0° to 90° to indicate current values. Shock resistance up to 15 g pulse adds durability in harsh industrial settings.
The meter meets wide international standards including DIN, IEC, VDE, UL, and CE, ensuring compliance and safety in electrical installations. It is rated IP52 for protection against dust and water ingress, making it suitable for factory floors, laboratories, HVAC systems, manufacturing lines, and water treatment plants.
The ammeter utilizes a moving iron element for true RMS current readouts. Compact 45 mm x 45 mm panel cutout with moulded polycarbonate case. Current range from 0A to 30A with 1% accuracy and overload up to twice nominal current.
Operating temperature from -10°C to 65°C with shock resistance to 15 g pulses. Standards certified including IEC 61010, VDE 0100-410, UL 94 V-0, and CE. IP52 rated for dust and water protection in industrial environments.
This analogue panel ammeter is ideal for electrical monitoring, automation control panels, industrial machinery, and process instrumentation tasks. Its durable design and compliance with multiple standards ensure reliable operation.
Explore RS PRO products and Analogue Panel Ammeters at EnvMart for professional industrial and electrical instrumentation solutions.
