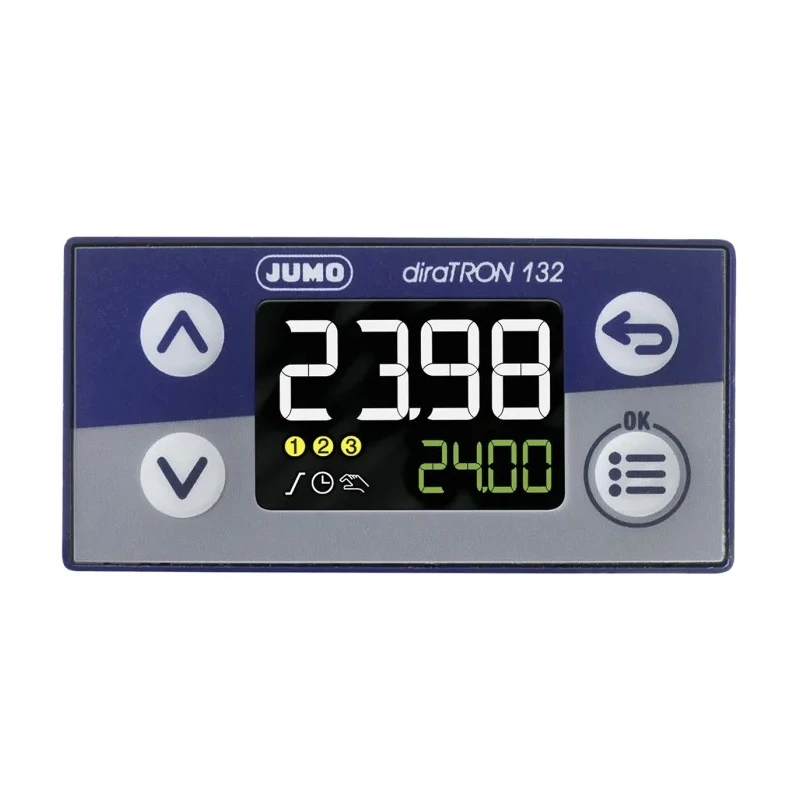

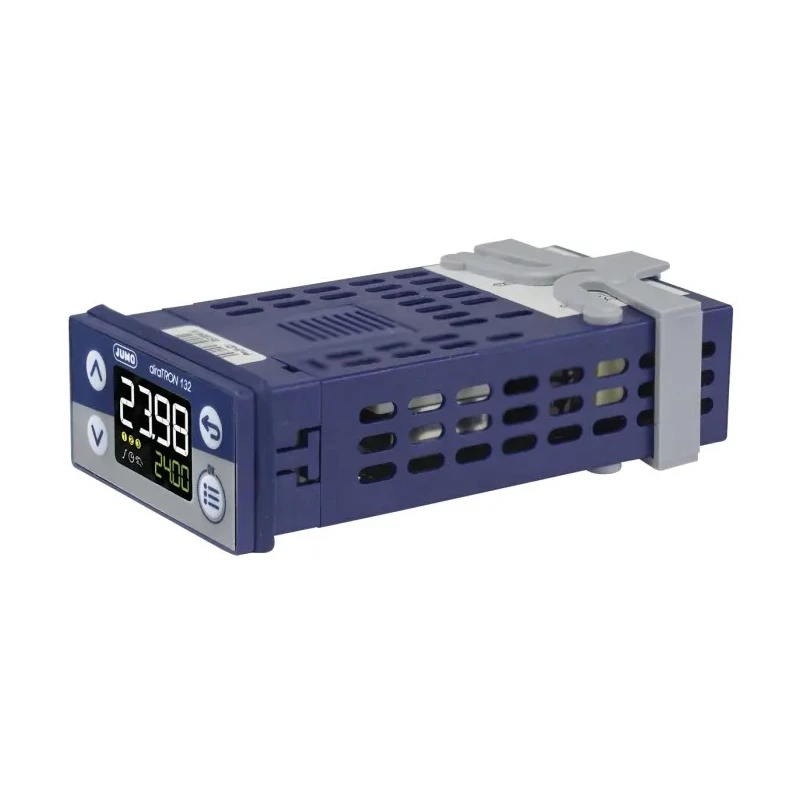

Jumo diraTRON Panel Mount PID Temperature Controller 2 Input, 1 Output Relay 240V ac 702110/8-0300-23/000

Jumo 702110/8-0300-23/000 is a high precision diraTRON panel mount PID temperature controller designed to regulate temperature using two inputs and one relay output at a maximum supply voltage of 240V ac. This device runs a PID control algorithm for accurate process variable management, ideal for industrial and laboratory environments.

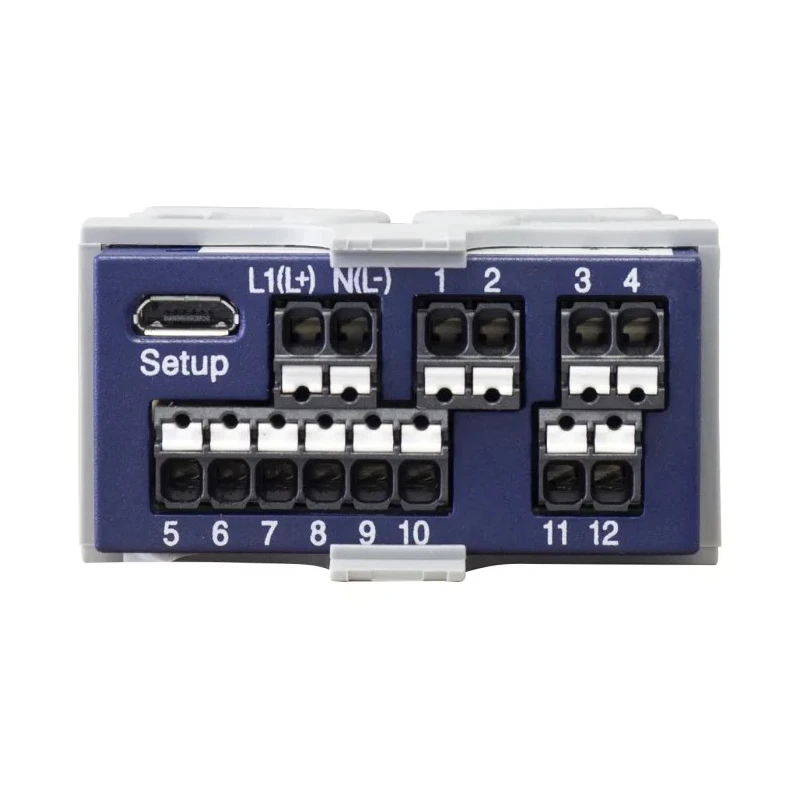

The controller supports analogue and digital input types, enabling flexible sensor interfacing, and features a spring cage terminal type for secure and fast wiring. The segment-type digital display provides a clear and reliable representation of process parameters.

Its compact size with a length of 48mm and panel depth of 89mm fits standard panel mounts, making it suitable for integration within existing control systems. The unit is rated for a maximum operating temperature of 55°C and a minimum of -10°C, allowing reliable functioning under varied thermal conditions.

Robust IP20 and IP65 protection ratings ensure durability against dust and moisture, suitable for demanding industrial settings. The Jumo diraTRON series features additional functions such as auto-tuning, setpoint changeover with four setpoint values, ramp function, timer function, and multiple limit value monitoring options. It also supports RS485 Modbus RTU communication for integration into digital control networks.

Safety and electromagnetic compatibility are assured through compliance with c UL US, UL 61010-1, EN 61326-1, EN 61010-1, and CAN/CSA-22.2 No. 61010-1 standards.

This temperature controller is ideal for precise control of temperatures, pressures, and other process variables in manufacturing, HVAC, laboratory, and automation applications, where accurate and reliable temperature regulation is critical.

Equipped with a PID controller for temperature regulation. Supports 2 inputs allowing analogue and digital signals. One relay output for controlled switching. Maximum operating temperature up to 55°C and minimum down to -10°C.

Panel mount type with spring cage terminal connections for easy wiring. Features RS485 Modbus RTU slave for digital communication. Durable segment display type for clear readouts. Compact dimensions: length 48 mm and panel depth 89 mm.

IP20 and IP65 rated for protection against ingress. Complies with multiple safety and EMC standards including UL and EN certifications. Explore more precision instrumentation and Temperature Controllers available in the EnvMart temperature control category.
