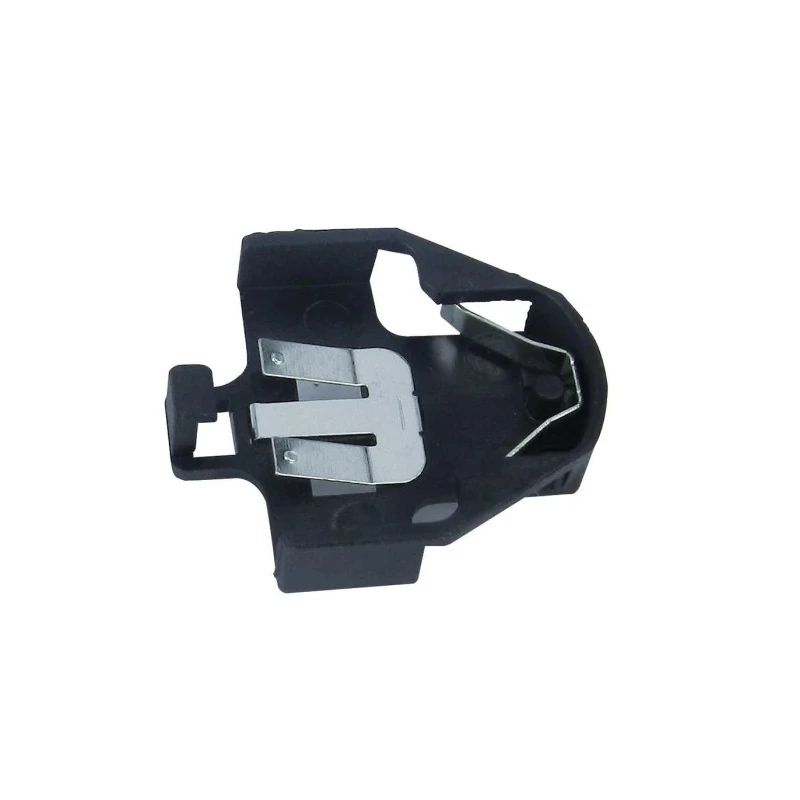

RS PRO CR2032 Battery Holder Surface Mount, PCB Mount Type, Polybutylene Terephthalate Body, 500V, 2A CR2032
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 20mm |
| Brand | RS PRO |
| Material | PBT |
| Body Material | Polybutylene Terephthalate |
| Height | 5.8mm |
| Humidity | 40°C |
| Length | 27mm |
| Model | CR2032 |
| Width | 23mm |
| Mount Type | PCB |
| Series | RS PRO |
| Number of Cells | 1 |
| Termination Type | Surface Mount |
| Insulation resistance | 1000megaohms |
| Sub Type | Battery Holder |
| Compatible Battery Size | CR2032 |
| Contact Resistance | 50milliohms maximum |
Key Features
- Constructed with durable polybutylene terephthalate material for enhanced insulation and mechanical strength.
- Suitable for a single CR2032 cell with a surface mount termination type for easy installation.
- Operates efficiently across a temperature range of -55°C to 85°C, ensuring durability in various environments.
- Offers a high voltage rating of 500V AC/DC and current rating of 2A for safety and performance.
- Features phosphor bronze electrodes plated with 0.2mm thick tin over nickel, reducing contact resistance.
- Insulation resistance of 1000 megaohms and maximum contact resistance of 50 milliohms ensure electrical reliability.
- Compact dimensions of 27mm length, 23mm width, and 5.8mm height for space-saving PCB applications.
- Tested for humidity resistance up to 40°C enhancing long-term stability in humid environments.
Product Description
RS PRO CR2032 Battery Holder Surface Mount is a specialized PCB mounting holder designed for CR2032 button batteries. It features a robust polybutylene terephthalate (PBT) body offering excellent electrical insulation and mechanical stability suitable for industrial and electronic applications.
Designed to hold a single CR2032 cell, this surface mount battery holder ensures an easy and secure soldering process onto printed circuit boards, enabling efficient power management in compact electronic devices.
The holder supports a voltage rating of 500V AC/DC and a current rating of 2A, which satisfies standard electronic safety requirements. Its phosphor bronze electrodes are tin-plated over nickel providing low contact resistance (maximum of 50 milliohms) and reliable conductivity essential for stable electrical performance.
Operating temperature ranges from -55°C to 85°C, making it suitable for use in harsh operating conditions found in industrial, laboratory, and commercial electronics. The insulation resistance rating of 1000 megaohms significantly reduces leakage currents, ensuring device safety and longevity.
Compact dimensions (27mm length, 23mm width, and 5.8mm height) allow integration into space-constrained assemblies. Additional resistance to humidity up to 40°C extends usability in environments prone to moisture.
Constructed from polybutylene terephthalate (PBT) for reliable insulation and strength. Phosphor bronze 0.2mm thick electrodes tin plated over nickel for optimal contact. Voltage rating of 500V AC/DC and current rating of 2A for electrical safety.
Temperature range from -55°C to 85°C for versatile use. Insulation resistance of 1000 megaohms and contact resistance limited to 50 milliohms. Compact size for efficient PCB mounting in electronic assemblies.
This battery holder is suited for industrial, commercial, and laboratory electronic equipment applications requiring secure CR2032 battery mounting. It ensures durability, electrical reliability, and easy integration into diverse electronic designs.
Explore more high-quality Battery Holders and electronic components available at EnvMart to support your projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 500V AC/DC and a current rating of 2A, ensuring safety and performance in electronic applications.
This model is designed to hold a single CR2032 cell, making it suitable for various electronic devices that require this battery type.
The compact dimensions are 27mm in length, 23mm in width, and 5.8mm in height, allowing for efficient PCB mounting in space-constrained applications.
It is constructed from polybutylene terephthalate (PBT), which provides enhanced insulation and mechanical strength.
The insulation resistance is rated at 1000 megaohms, which helps reduce leakage currents and ensures device safety.
The maximum contact resistance is 50 milliohms, which contributes to reliable conductivity and stable electrical performance.
It operates efficiently across a temperature range of -55°C to 85°C, making it suitable for various environments.
It is tested for humidity resistance up to 40°C, enhancing long-term stability in humid environments.
This model features a surface mount termination type, allowing for easy installation onto printed circuit boards.
This battery holder is designed to accommodate a single cell, specifically for the CR2032 battery.
The phosphor bronze electrodes are plated with 0.2mm thick tin over nickel, which reduces contact resistance and enhances electrical reliability.
It is suited for industrial, commercial, and laboratory electronic equipment applications requiring secure CR2032 battery mounting.
