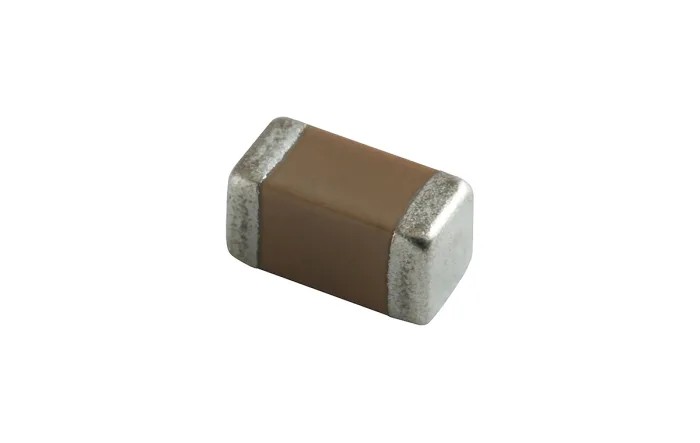

Murata 180 pF Multilayer Ceramic Capacitor, 50V DC, ±2% Tolerance, Surface Mount, 0201 Package GRM0335C1H181GA01D

Free Delivery in India | Lowest Global Shipping Charges

Murata 180 pF Multilayer Ceramic Capacitor, 50V DC, ±2% Tolerance, Surface Mount, 0201 Package GRM0335C1H181GA01D

Name: Murata 180 pF Multilayer Ceramic Capacitor, 50V DC, ±2% Tolerance, Surface Mount, 0201 Package GRM0335C1H181GA01D
Brand: Murata
SKU: 156852
Availability: InStock



Category Multilayer Ceramic Capacitor Brand Murata Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	Murata
Height	0.3mm
Length	0.6mm
Model	GRM0335C1H181GA01D
Packaging	180 mm Dia Reel Paper Tape W8P2
Width	0.3mm
Mount Type	Surface
Construction	Stacked
Series	GRM
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±2 %
Capacitance	180pF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0201
Dielectric	C0G

Key Features

Compact 0201 package size with dimensions 0.6mm length, 0.3mm width, and 0.3mm height.
Constructed with a stacked multilayer ceramic and C0G dielectric ensuring excellent stability and performance.
Termination type is solder for reliable mounting on printed circuit boards.
Operating temperature range from -55°C to 125°C for robust use in various environments.
Complies with RoHS standards for environmental safety.
Suitable for decoupling, smoothing circuits, and high-frequency applications.
Sn plating on electrodes provides excellent solderability and reliability with no polarity constraints.
Manufactured in Japan under the GRM series known for advanced technology and compact size.

Product Description

Murata GRM0335C1H181GA01D is a highly reliable Multilayer Ceramic Capacitor featuring a capacitance of 180 pF with a rated voltage of 50V DC and a tight tolerance of ±2%. This surface mount device is housed in a compact 0201 package, measuring 0.6mm in length, 0.3mm in width, and 0.3mm in height, making it ideal for modern electronic circuitry with space constraints.

Constructed using a stacked multilayer ceramic technology with C0G dielectric, it delivers high stability and excellent performance across the temperature range from -55°C to 125°C. The solder termination ensures good solderability with Sn plating applied to the external electrodes, providing robust mounting on printed circuit boards for industrial and commercial applications.

This capacitor complies with RoHS environmental standards and is manufactured in Japan, reflecting Murata's commitment to quality and advanced manufacturing processes. It is supplied on a 180 mm diameter reel with paper tape, supporting high-volume automated assembly.

Its application range includes decoupling, smoothing, and use in high-frequency circuits such as tuning, oscillating, and snubber circuits for power supplies. The capacitor’s no polarity design simplifies installation and improves reliability.

Compact 0201 package with micro dimensions suitable for space-sensitive electronics. High-performance C0G dielectric material for low losses and stable capacitance. Wide operating temperature supports industrial and commercial environments.

Manufactured to meet RoHS environmental requirements and standards. Optimal solderability and long-term reliability supported by Sn-plated electrodes. Easy automated assembly with reel packaging ensuring efficient production lines.

Ideal for use in decoupling, smoothing, tuning, and high-frequency circuits. Produced by Murata, a leader in electronic components manufactured in Japan.
