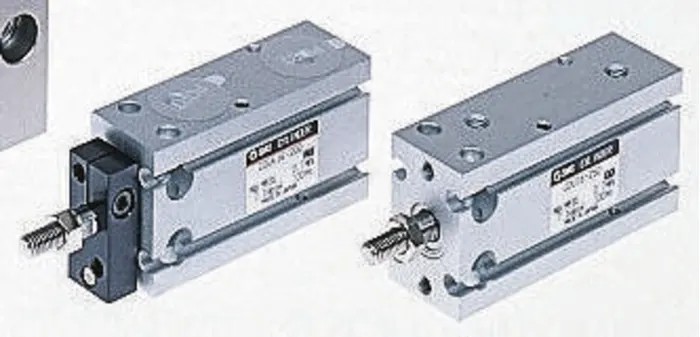

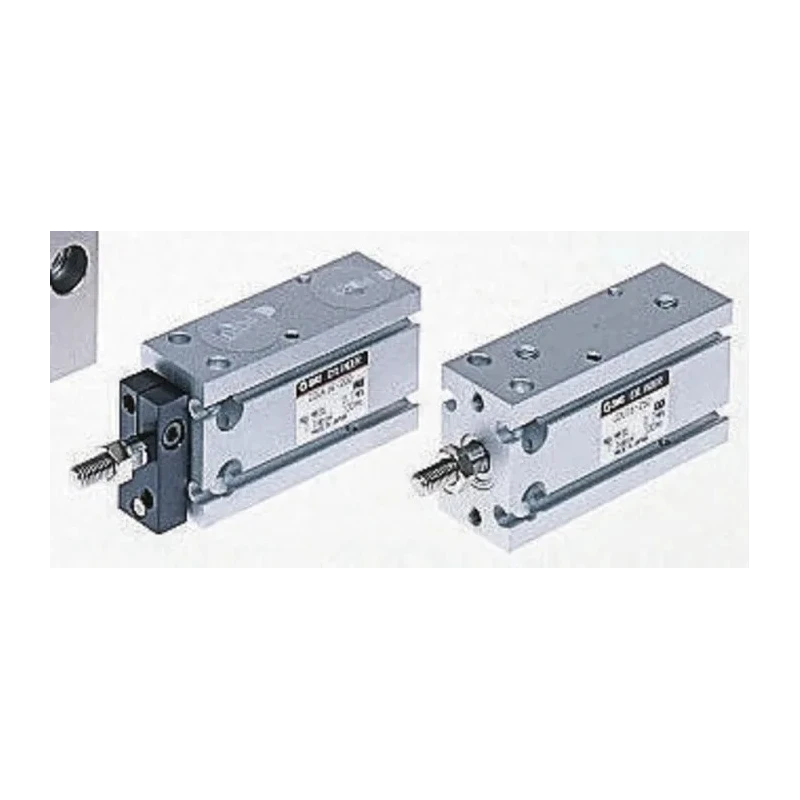

SMC 50 mm Pneumatic Piston Rod Cylinder CDU Series Double Acting Aluminium Alloy Body CDU20-50D

SMC CDU20-50D Pneumatic Piston Rod Cylinder features a compact and robust aluminium alloy body with a 50 mm stroke length and a total length of 105 mm. This double acting cylinder offers dependable linear actuation with rubber cushioning on both ends to reduce impact and noise during operation. The single male piston rod with metric threading facilitates easy integration into pneumatic systems.

This cylinder operates effectively within a maximum temperature of 70 degrees Celsius and does not require lubrication, making it suitable for a variety of industrial environments including manufacturing automation, packaging, and fluid power applications. The CDU series is known for direct, precise mounting and space-saving design.

The rubber cushions improve shock absorption, enhancing the cylinder's durability and operator safety. Its maximum piston speed reaches up to 500 mm/s allowing for efficient pneumatic actuation cycles. The aluminium alloy construction ensures a lightweight yet strong structure resisting corrosion under normal conditions.

Key features include a magnetic piston standard for sensor integration options, free mount configuration enabling flexible installation choices, and an extended service life due to its robust design. Port size is M5, facilitating compatibility with standard pneumatic fittings.

Typical uses for this pneumatic piston rod cylinder include industrial automation lines, assembly machinery, pneumatic presses, and material handling equipment. The product supports a maximum operating pressure of 7 bar with a proof pressure of 10.5 bar, meeting industrial-grade requirements.

Double acting pneumatic cylinder for precise linear motion control. Constructed with durable aluminium alloy for lightweight and corrosion resistance. Rubber cushioning on both ends enhances operational smoothness. Single rod type with metric threaded male piston rod.

Maximum operating temperature of 70 degrees Celsius. Stroke length of 50 mm and overall length of 105 mm ensures compact installation. Suitable for industrial automation, fluid power systems, and pneumatic actuation. No lubrication required, saving maintenance time.

Designed for mounting versatility and precise positioning applications. Explore more pneumatic solutions and accessories in the Industrial Tools & Equipment Pneumatic Piston Rod Cylinder category at EnvMart.
