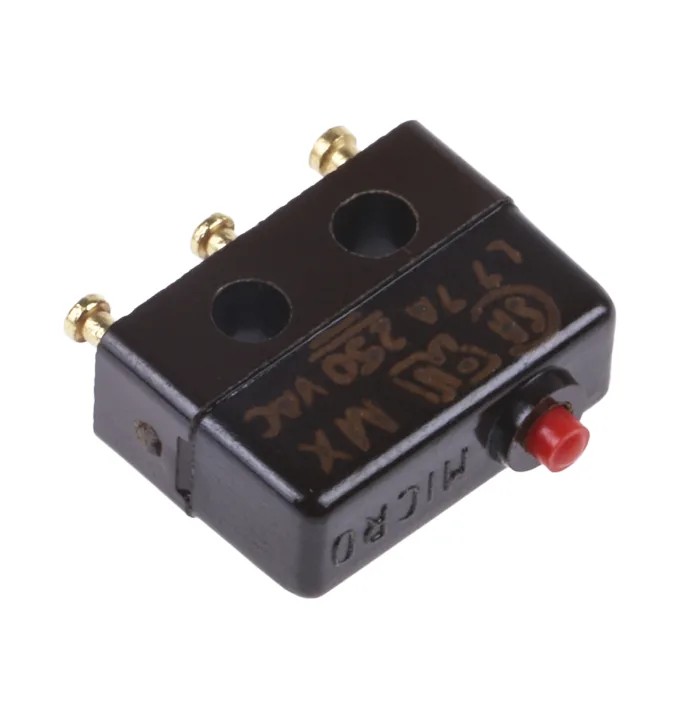

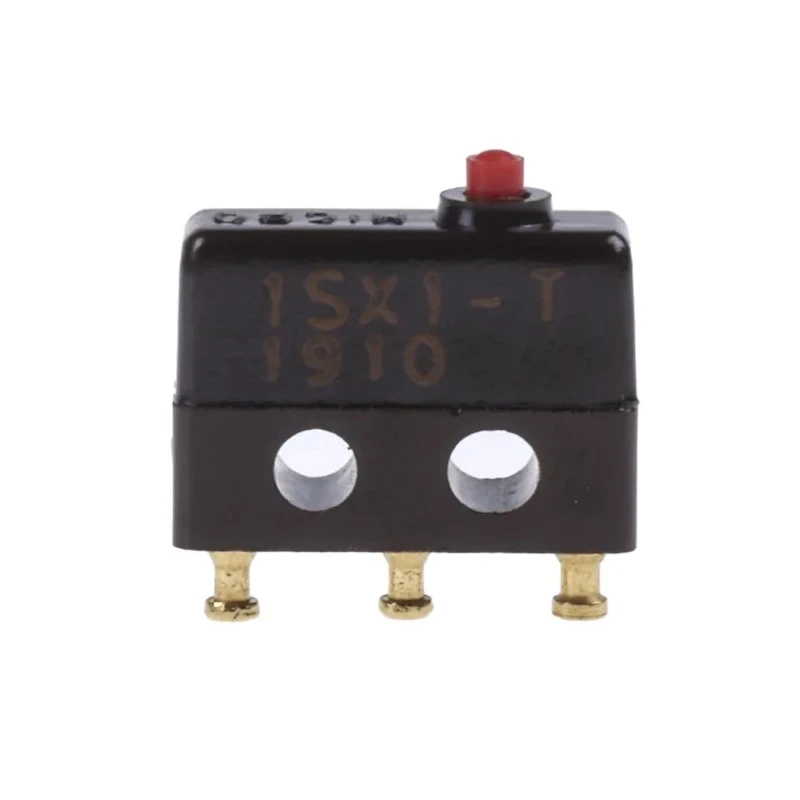

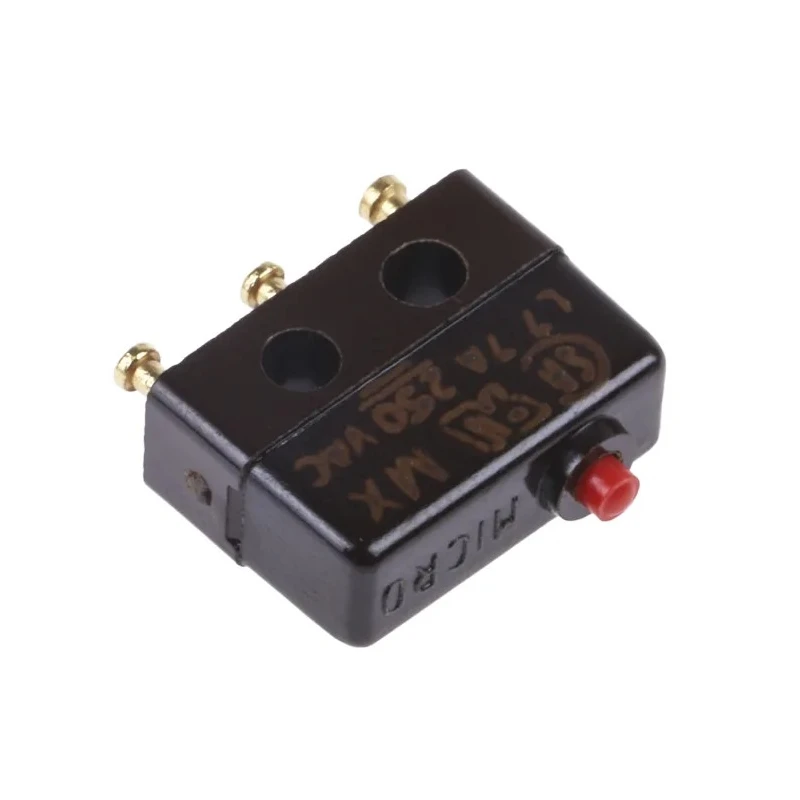

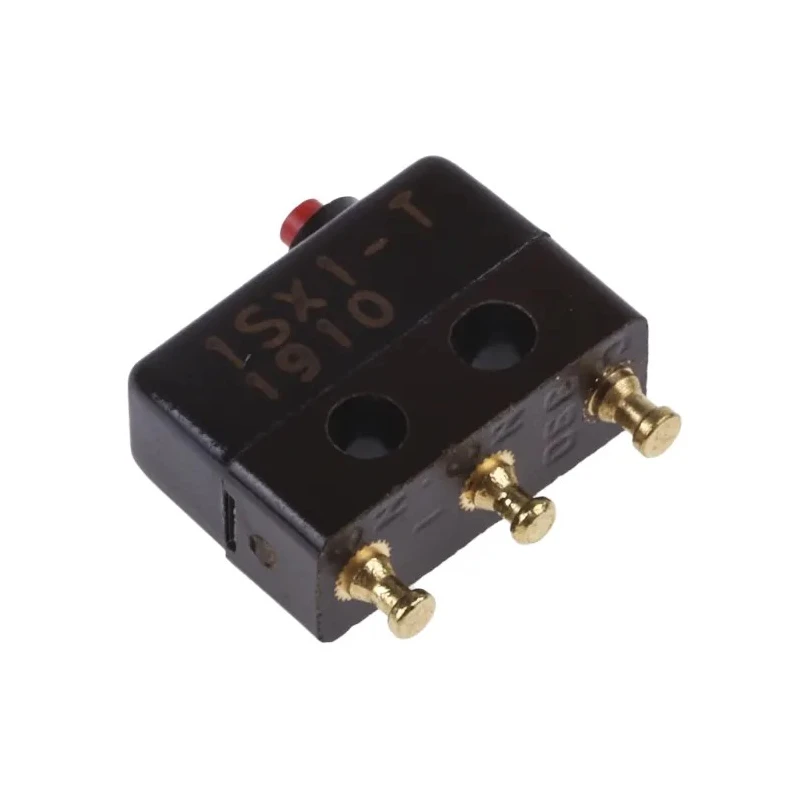

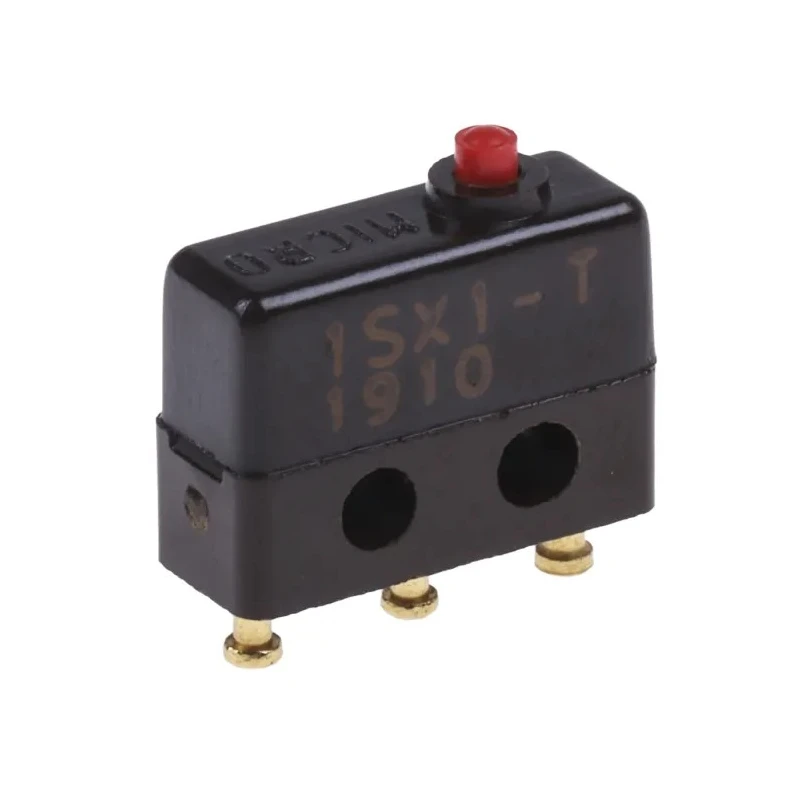

Honeywell Technologies Button Subminiature Micro Switch, Solder Terminal, 7A, 250 V AC, SPDT 1SX1-T

Name: Honeywell Technologies Button Subminiature Micro Switch, Solder Terminal, 7A, 250 V AC, SPDT 1SX1-T
Brand: Honeywell Technologies
SKU: 156028
Price: 37.89 USD
Availability: InStock



Category Micro Switch Brand Honeywell Technologies Condition New

Specifications

Country of Origin	Mexico
Brand	Honeywell Technologies
Length	12.7mm
Model	1SX1-T
Width	5.08mm
Housing Material	Phenolic
Series	SX
Maximum Operating Temperature	121°C
Contact Configuration	SPDT
Actuator Type	Button
Minimum Operating Temperature	-54°C
Terminal type	Solder
Standards/Approvals	CE, UL, RoHS, CSA
Switch Contact Current	7A
Operating Force	1.39N
Mechanical Life	1000000Operations
Contact AC Voltage	250V ac
Microswitch Type	Subminiature

Key Features

Features a button actuator for clear tactile response in confined spaces.
Solder terminal type enables secure PCB or wire connections.
Operates reliably at forces around 1.39N for consistent switching.
Built with phenolic housing providing excellent electrical insulation.
Wide operating temperature range from -54°C to 121°C tolerates harsh environments.
Mechanical durability supports up to 1,000,000 operations for long service life.
Compliant with CE, UL, RoHS, and CSA standards ensuring safety and quality.
Compact dimensions of 12.7mm length and 5.08mm width for small device integration.

Product Description

Honeywell Technologies 1SX1-T Button Subminiature Micro Switch is a compact electrical switching device engineered for precise actuation in small-scale automated and electronic systems. Its solder terminal design facilitates reliable PCB or wire attachment, accommodating robust loads with a 7A switching current at 250 V AC.

The SPDT (Single-Pole Double-Throw) contact configuration provides flexible circuit design options, allowing one input to switch between two outputs for changeover and signalling tasks. The button-type actuator delivers a clear tactile interface suited to low-profile assembly enclosures.

Constructed with a phenolic housing for electrical insulation, this microswitch operates across a broad temperature range from -54°C to 121°C, making it suitable for demanding industrial environments. Mechanical integrity supports up to one million operations, ensuring longevity and reliability in continuous-use applications.

Certified to meet CE, UL, RoHS, and CSA approvals, the 1SX1-T is compliant for use in regulated installations. Its compact dimensions of 12.7 mm length and 5.08 mm width enhance suitability for tight assembly spaces.

Button actuator delivers precise tactile switching response. Solder terminal construction ensures secure electrical connection. Rated for 7A current load at 250 V AC for industrial-grade operation. Phenolic housing provides excellent dielectric strength.

Wide operational temperature range from -54°C to +121°C. Long mechanical life of 1,000,000 switch operations. Single-pole, double-throw contact configuration for versatile control. Certifications include CE, UL, RoHS, and CSA compliant.

Compact size fits small-scale electromechanical devices. Manufactured in Mexico with high-quality standards.

This microswitch is well-suited for applications including limit switching in automated assembly mechanisms, end-stop detection in small actuators, manual push-button controls in control panels, and signal switching in measurement and sensing equipment. Its robust specifications and certifications make it a reliable component across industrial automation, manufacturing, instrumentation, and testing domains.
