TDK 33 pF Multilayer Ceramic Capacitor 100V DC ±5% Tolerance Surface Mount CGA3E2C0G2A330J080AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 33 pF Multilayer Ceramic Capacitor 100V DC ±5% Tolerance Surface Mount CGA3E2C0G2A330J080AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E2C0G2A330J080AA
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	33pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

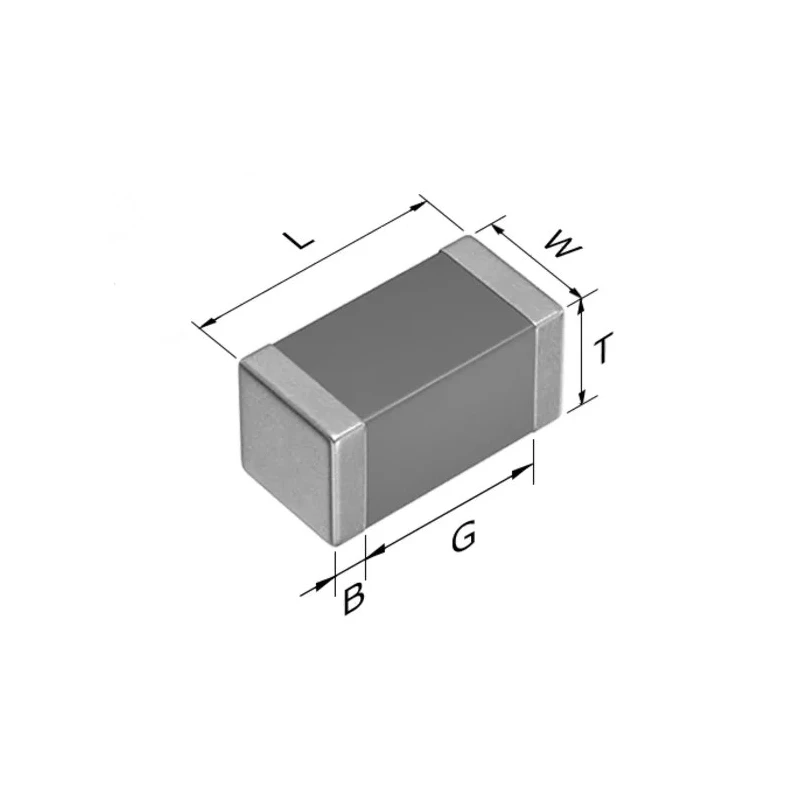

Compact 0603 package size with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height.
Constructed with stable C0G dielectric for high precision and low loss.
Automotive grade compliant with AEC-Q200 standard.
Wide operating temperature range from -55°C to 125°C.
Features minimal DC bias effects ensuring stable capacitance under voltage.
Suitable for decoupling, smoothing, and snubber circuit applications in power electronics.
Packaged on tape and reel for easy automated assembly in manufacturing.
Termination designed specifically for surface mount technology (SMT) assembly.

Product Description

TDK CGA3E2C0G2A330J080AA is a high-quality 33 pF multilayer ceramic capacitor engineered for precision electronic applications. Rated for a maximum of 100 volts DC with a tolerance of ±5%, this surface mount device uses a Class I C0G dielectric known for exceptional stability and low loss characteristics.

The capacitor is housed in a compact 0603 package measuring 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, making it ideal for space-constrained circuit designs. Its automotive standard certification (AEC-Q200) ensures reliable performance in harsh environments and critical automotive electronic systems.

This component can operate reliably over a wide temperature range from -55°C up to 125°C. It features low residual inductance and excellent frequency response due to the precision layering technology, which also allows for superior DC bias characteristics ensuring minimal deviation in capacitance under varying voltage conditions.

Applications include use in decoupling, smoothing, and snubber circuits within inverters or DC-DC converters prevalent in hybrid and electric vehicles (HEVs and EVs). It also effectively mitigates voltage surges and electrical noise in connector circuits.

Packaged in tape and reel format, the CGA3E2C0G2A330J080AA supports automated pick and place processes to optimize manufacturing efficiency and consistency. Compact 0603 package facilitating high-density PCB layouts. Stable C0G dielectric material providing excellent electrical performance.

Compliant with AEC-Q200 automotive standards. Wide temperature range from -55°C to 125°C. Surface mount termination ensuring reliable solder connections. Designed for use in power electronics including HEVs and EVs. Available in tape and reel packaging for high-volume production.

Excellent DC bias stability and low residual inductance.

This Multilayer Ceramic Capacitor is a reliable choice for industrial, automotive, and electronic manufacturing sectors. Explore our full range of capacitors and electronic components to meet diverse project requirements at EnvMart.
