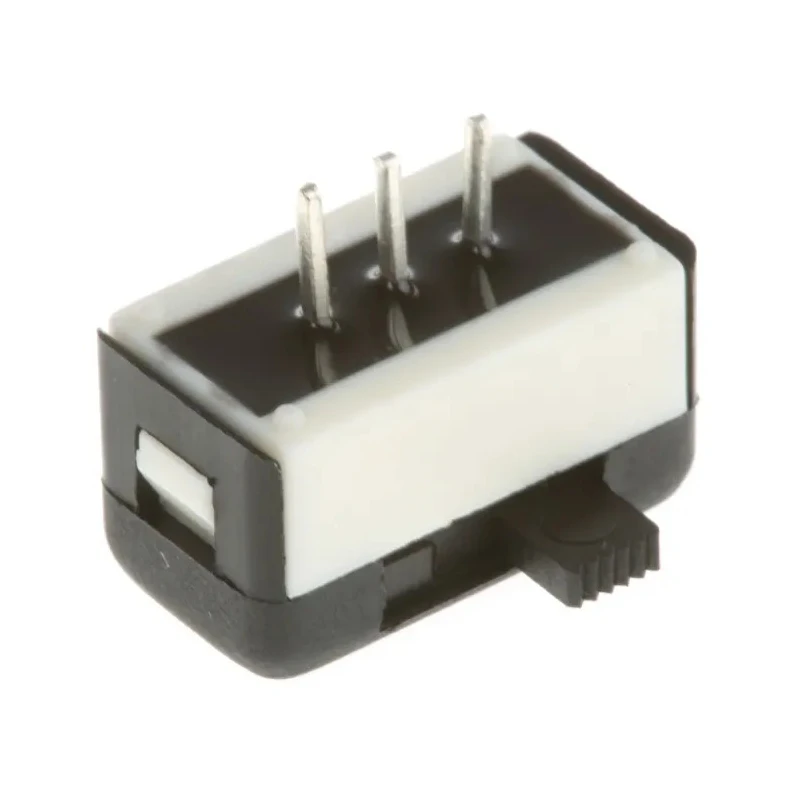

APEM PCB Slide Switch SPDT Latching 1A Fibreglass Reinforced Polyamide 25336NA

APEM 25336NA PCB Slide Switch SPDT Latching 1A Fibreglass Reinforced Polyamide is engineered for reliable performance in electrical and electronics applications requiring compact and durable switching solutions. This miniature slide switch with a fibreglass reinforced polyamide actuator offers excellent mechanical robustness and longevity.

The switch features a single pole double throw (SPDT) contact configuration with On-None-On latching operation, allowing stable switching positions without spring return. Its through hole PCB mount terminals ensure secure mechanical and electrical connections during assembly.

Operating under a rating of 1 Amp contact current at 30 Volts DC, this slide switch is designed for low power electronic control circuits and instrumentation. Its compact size with dimensions of 14.1 mm length, 18.5 mm width, and 8.1 mm depth supports installation in space-constrained applications.

Constructed with UL approved materials, including a fibreglass reinforced polyamide actuator and a PBT high temperature thermoplastic case, the switch can withstand elevated temperatures up to 85°C and function reliably from -40°C, making it suitable for industrial environments.

With a mechanical life expectancy of 20,000 operations and an electrical life of 10,000 cycles, this switch delivers durability required in demanding manufacturing, automation, and electronics assembly processes. It is manufactured in France ensuring high quality standards and conformity to industry certifications.

Single Pole Double Throw (SPDT) contact configuration for versatile switching. Latching On-None-On operation for stable user control. Through hole PCB mounting for robust installation. Fibreglass reinforced polyamide actuator ensures mechanical strength.

Compact form factor with dimensions 14.1 x 18.5 x 8.1 mm. Operating temperature range from -40°C to 85°C for industrial use. UL standards approved with 20,000 mechanical operations lifespan. Electrical life rated at 10,000 cycles for reliability.

Non-illuminated version suitable for electronics and automation. Manufactured in France delivering premium quality assurance.

This APEM PCB Slide Switch is ideal for use in industrial automation, electrical control equipment, instrumentation, and electronic projects demanding low current latching slide switches. Browse EnvMart for a wide range of switches and electrical components by trusted brands.
