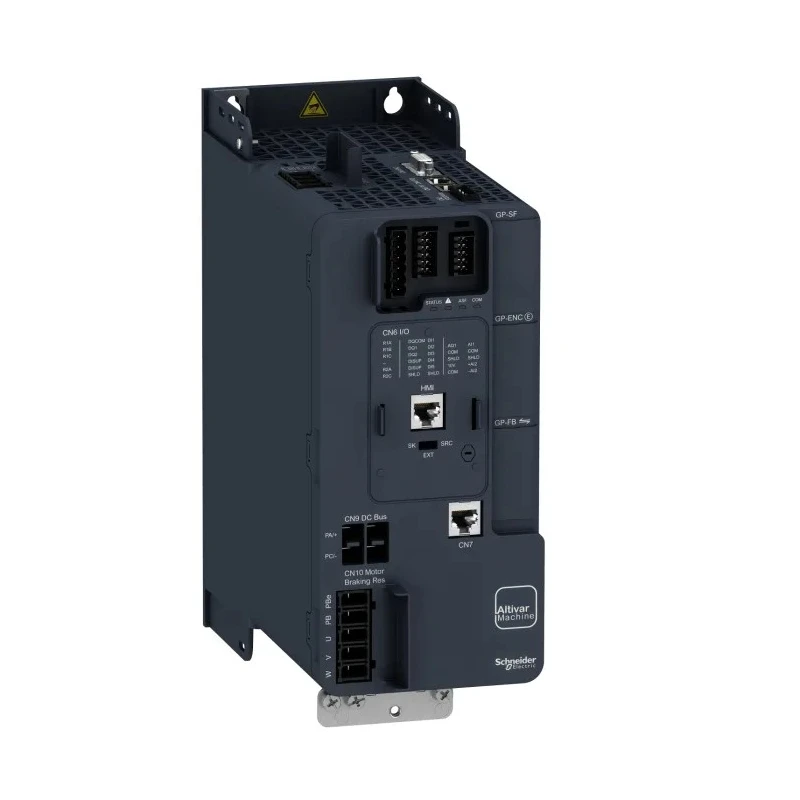

Schneider Electric Inverter Drive ATV340U55N4 5.5 kW 3 Phase 380V-480V Variable Speed 9.4A Cabinet Mount IP20
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Model | ATV340U55N4 |
| IP Rating | IP20 |
| Drive Type | Variable Speed |
| Mount Type | Cabinet |
| Overall Length | 110mm |
| Series | Altivar |
| Overall Width | 234mm |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | 0°C |
| Interfaces | Ethernet option (ATV340…E) |
| Number of Phases | 3 |
| Maximum Output Current | 9.4A |
| Standards/Approvals | RoHS, CE, C-Tick, EAC, REACH, TUV, UL, EAN, IEC, CSA |
| Maximum Supply Voltage | 480V |
| Overall Depth | 270mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Permanent Magnet Motor, Reluctance Motor |
Key Features
- Designed for permanent magnet and reluctance motors.
- Cabinet mount type with IP20 protection rating.
- Wide output frequency range from 0.1 to 599 Hz.
- Operating temperature range from 0°C to 50°C for harsh environments.
- Compact dimensions of 110mm length, 234mm width, and 270mm depth.
- Compliant with international standards including RoHS, CE, UL, and TUV.
- Advanced communication with Modbus protocol and optional Ethernet interface.
- Features Master/slave function and embedded web server for monitoring and control.
Product Description
Schneider Electric ATV340U55N4 is a 5.5 kW inverter drive designed for 3-phase synchronous and asynchronous motor control in industrial and automation applications. It supports permanent magnet and reluctance motors, offering precise variable speed control from 0.1 to 599 Hz and rated voltages from 380V to 480V AC.
This device is built to withstand harsh conditions, including vibration, shock, and dust, while operating reliably up to 50°C ambient temperature. Its cabinet mount form factor and IP20 rating make it suitable for panel integration.
With compact dimensions of 110mm (length) x 234mm (width) x 270mm (depth) and a light weight of 2.9 kg, the ATV340 can be easily installed vertically with four fixing holes. It complies with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3, as well as certifications like CE, UL, CSA, and TUV.
The inverter drive integrates Modbus serial communication as standard and offers optional Ethernet communication modules (ATV340...E), enabling advanced connectivity and control. Its embedded webserver and master/slave capability facilitate coordinated machine performance and diagnostics.
The drive features constant torque rating with overload capacity (150% for 60s and 180% for 2s) and supports expansion via encoder, I/O, and fieldbus modules. It is optimized for applications including packaging, material handling, hoisting, and material working, enhancing machine efficiency and productivity.
Designed for harsh environments with high temperature and dust resistance. Flexible communication options including embedded Ethernet and Modbus. Energy-efficient Green Premium certified product for sustainable usage. Compact and light design for ease of installation and maintenance.
Conforms to multiple international safety and performance standards. Supports wide range of industrial motor types and control schemes.
This Inverter Drive is ideal for industrial automation, manufacturing lines, HVAC systems, and heavy machinery requiring precise motor speed and torque control. Fully compatible with Schneider Electric's EcoStruxure Machine platform, it enables integration and configuration with SoMachine and SoMove software.
Explore more Schneider Electric automation products and drives with EnvMart for improved system performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ATV340U55N4 inverter drive has a power rating of 5.5 kW.
This inverter drive supports an output frequency range from 0.1 to 599 Hz.
The dimensions of this model are 110mm in length, 234mm in width, and 270mm in depth.
The maximum operating temperature for the ATV340U55N4 is 50°C.
It is compatible with permanent magnet motors and reluctance motors.
The inverter drive has an IP20 protection rating.
The ATV340U55N4 includes Modbus communication as standard and offers an optional Ethernet interface.
This model features a constant torque rating with overload capacity of 150% for 60 seconds and 180% for 2 seconds.
It can be installed vertically and includes four fixing holes for mounting.
It complies with several international standards including RoHS, CE, UL, and TUV.
The maximum supply voltage for the ATV340U55N4 is 480V.
This inverter drive is optimized for applications such as packaging, material handling, hoisting, and material working.
