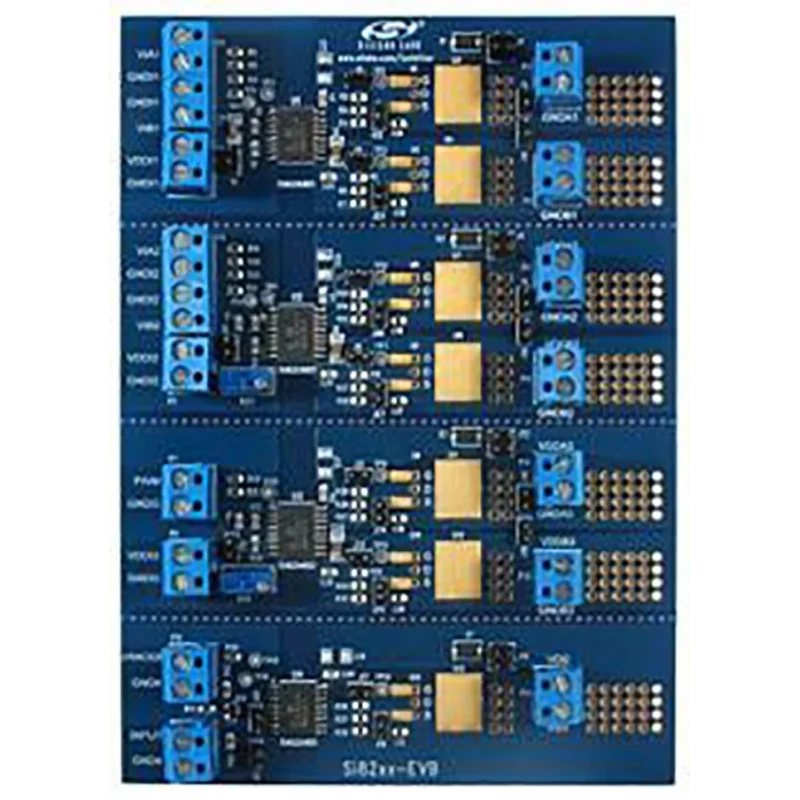

Skyworks Solutions Inc MOSFET Gate Driver 2 Outputs 4 A 16-Pin SOIC 24V SI8233BD-D-IS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Skyworks Solutions Inc |
| Height | 2.35mm |
| Length | 10.3mm |
| Model | SI8233BD-D-IS |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | Si823x |
| Output Current | 4A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Rise Time | 12ns |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 5.5V |
| Number of Drivers | 2 |
| Fall Time | 12ns |
| Driver Type | MOSFET |
Key Features
- Provides two independent MOSFET drivers optimized for high switching frequency applications.
- Supports maximum supply voltage up to 24V with a minimum operating voltage of 5.5 V.
- Fast switching with 12 ns rise and fall times ensures efficient performance.
- Designed for automotive applications meeting AEC-Q100 standard.
- Compact surface mount SOIC package with 16 pins for easy PCB integration.
- Wide operating temperature range from -40°C to 125°C.
- High isolation rating up to 5 kVRMS between input and output.
- Driver-to-driver withstand voltage of ±1500 VDC supports robust electrical insulation.
Product Description
Skyworks Solutions Inc SI8233BD-D-IS is a high-performance MOSFET gate driver IC engineered for isolated dual MOSFET driving in industrial and automotive applications. This device features two completely isolated drivers packaged in a standard 16-pin SOIC footprint, enabling facile PCB integration while providing robust electrical isolation.
With a peak output current capability of 4 A per channel, this gate driver supports efficient switching at frequencies up to 8 MHz, complemented by fast 12 ns rise and fall times, reducing switching losses and improving system efficiency. The device operates over a wide voltage range from 5.5 V to 24 V supply, and a wide temperature range from -40°C to 125°C, satisfying the reliability and thermal requirements common in automotive electronics.
The SI8233BD-D-IS gate driver meets the automotive standard AEC-Q100 for quality and durability, ensuring suitability for automotive control systems where stringent validation is required. Isolation ratings up to 5 kVRMS and 1500 VDC driver-to-driver differential voltage enhance safety by preventing unwanted voltage transmission between circuits.
Ideal for industrial controls, power management, automotive motor drives, and isolated power supplies, this device combines high electromagnetic immunity and compact packaging for integration into space-constrained designs.
Dual isolated MOSFET drivers with high current capability. Up to 5 kVRMS isolation voltage for enhanced safety. Fast switching with 12 ns rise and fall times. Automotive qualified as per AEC-Q100. Wide operating voltage and temperature ranges.
Compact 16-pin SOIC surface mount package.
This MOSFET Gate Driver complements various isolated and digital input configurations, supporting versatile designs requiring dual driver outputs with isolation. It is part of the Si823x series designed for integrated power management solutions in automotive and industrial sectors.
Discover a comprehensive range of Gate Drivers and Power Management ICs from Skyworks Solutions Inc and other leading manufacturers on EnvMart for your advanced semiconductor component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 4 A per channel.
It operates with a supply voltage range from 5.5 V to 24 V.
The rise and fall times for the SI8233BD-D-IS are both 12 ns.
It has an isolation rating of up to 5 kVRMS between input and output.
This model operates over a temperature range from -40°C to 125°C.
This device features two independent outputs.
It comes in a compact 16-pin SOIC surface mount package.
Yes, it meets the AEC-Q100 automotive standard for quality and durability.
It is suitable for industrial controls, automotive motor drives, and isolated power supplies.
The driver-to-driver withstand voltage is ±1500 VDC.
The height of this model is 2.35 mm.
It is part of the Si823x series of gate drivers.
