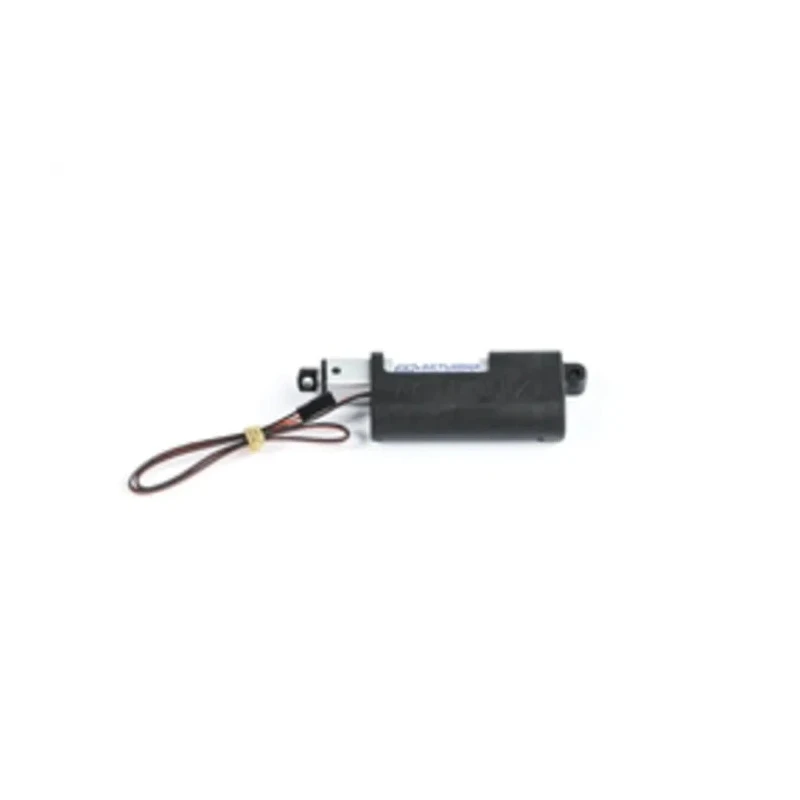

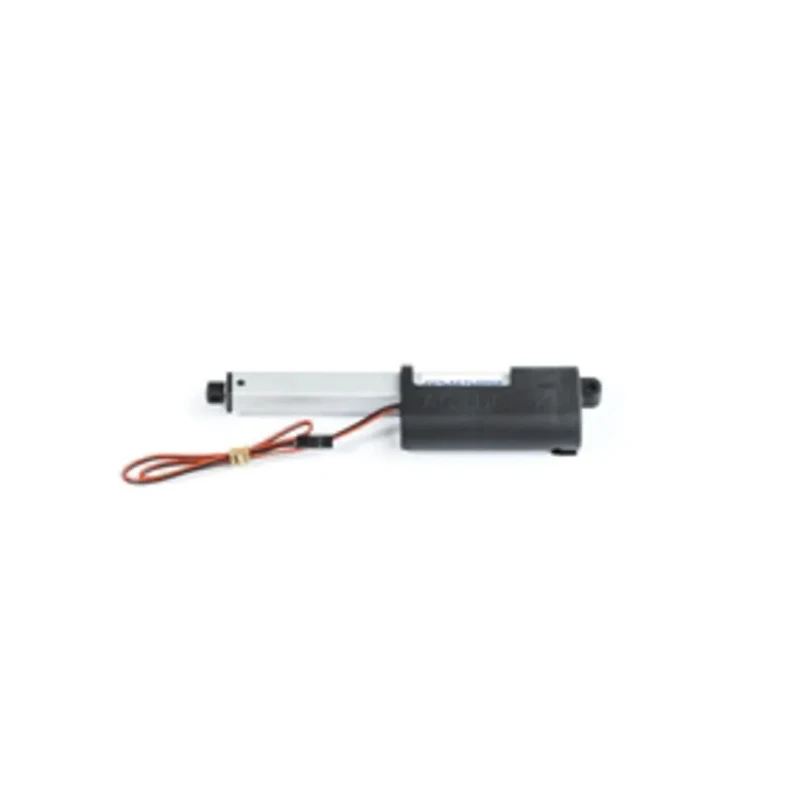

Actuonix Electrical Linear Actuator 50 mm Stroke Length 20lb Max Load 12V DC 18mm/s Speed P16-50-64-12-S

Actuonix P16-50-64-12-S Electrical Linear Actuator is a high-performance miniature linear motion device with a 50 mm stroke length and 20lb (90N) maximum load capacity. Powered by 12V DC, it delivers a maximum speed of 18mm/s through a compact side-by-side design featuring a planetary gearbox, which allows faster speeds, higher forces, and improved longevity compared to previous models. This actuator is specialized for precision motion applications requiring compact form factors and reliable control.

The actuator provides end of stroke limit switches to prevent damage by automatically stopping at travel limits, making it suitable for automation requiring precise on/off positioning. It supports reverse polarity operation, enabling easy control with simple DPDT switches, push buttons, wireless controllers, or brushed reversible DC motor controllers.

Its IP54 rating ensures resistance against dust and water spray, contributing to robust performance in industrial and mechanical environments. The actuator functions reliably between -10°C and +50°C and incorporates a lead screw spindle for accurate linear movement.

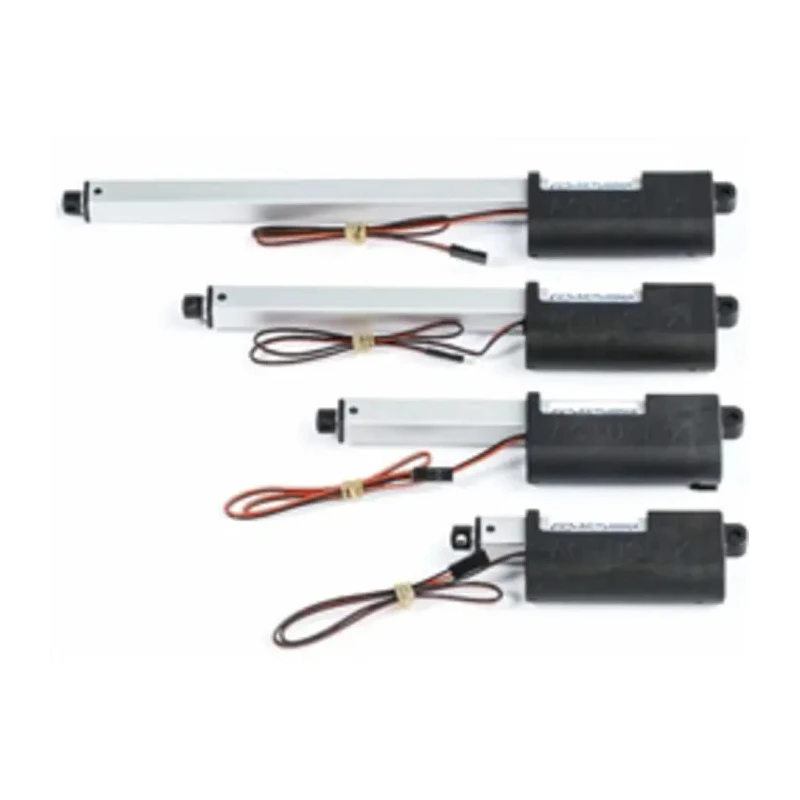

With a lightweight construction of approximately 95 grams, this actuator is easy to mount in various applications such as robotics, fluid power systems, manufacturing automation, and HVAC control mechanisms. This model belongs to the P16 series by Actuonix, which offers various stroke lengths and gearing options suited for different speed and force requirements.

Compact miniature linear motion device with planetary gearbox for enhanced performance. Maximum force capability of 90N supporting industrial and mechanical automation. Rated IP54 for dust and splash resistance ensuring durability in harsh environments.

End of stroke limit switches for simple two-position automation and protection. Supports reverse polarity operation with 20% duty cycle for intermittent use. Ideal for applications in robotics, fluid power, and motion control systems.

Operates within -10°C to 50°C temperature range with lead screw spindle type. Lightweight design at 95g suitable for compact installations.
