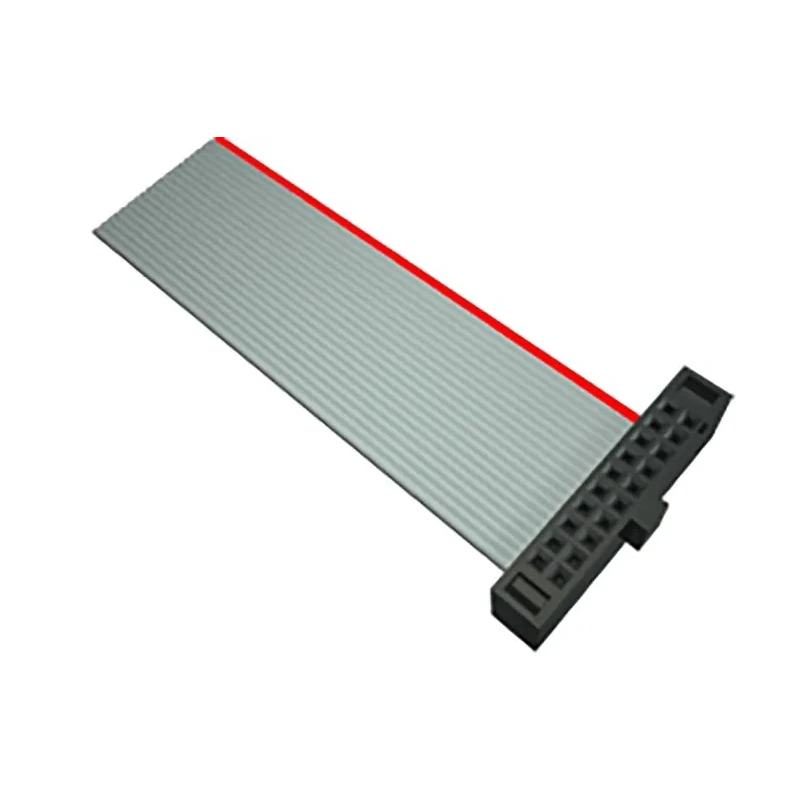

Samtec FFSD Series Ribbon Cable Flat Ribbon 1.27 mm Pitch 10 Conductors 76.2 mm Length FFSD-05-D-03.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | FFSD-05-D-03.00-01-N |
| Cable Length | 76.2mm |
| Series | FFSD |
| Maximum Operating Temperature | 105°C |
| Conductor Material | Beryllium Copper Alloy |
| Cable Type | Flat Ribbon |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polybutylene Terephthalate |
| Pitch | 1.27mm |
| Standards/Approvals | RoHS |
| Jacket Colour | Red |
| American Wire Gauge | 30AWG |
| Number of Conductors | 10 |
Key Features
- The cable uses high-quality beryllium copper alloy conductors ensuring excellent conductivity.
- Its jacket is made from durable polybutylene terephthalate in red color providing protection and insulation.
- The cable operates reliably in temperatures ranging from -40°C to 105°C.
- It features an exceptionally low profile design with multi-finger Tiger Eye contacts for high cycle life.
- The series FFSD supports all common pin counts from 3 to 25 for versatile applications.
- Optional rugged strain relief and various mating headers are available for enhanced robustness.
- Designed for industrial, automation, and electrical wiring uses requiring durable ribbon cable solutions.
Product Description
Samtec FFSD-05-D-03.00-01-N is a new flat ribbon cable from the FFSD series by Samtec, engineered for robust electrical connectivity with a 1.27 mm pitch, 10 conductors, and measured length of 76.2 mm. This cable features precision-engineered beryllium copper alloy conductors, renowned for their conductivity and mechanical strength, enclosed in a polybutylene terephthalate jacket colored red for insulation and durability.
The cable supports a wide temperature range from -40°C to 105°C, making it suitable for demanding industrial environments. Its low profile and Tiger Eye multi-finger contact system provide high reliability and are designed to endure numerous mating cycles, ideal for high-precision applications.
Samtec's FFSD series provides versatility with a variety of pin counts from 3 to 25 and optional rugged strain reliefs to ensure robust performance in harsh conditions. The cable system complements a range of ejector and shrouded headers for secure mating connections, supporting complex wiring configurations including reverses and daisy chains.
This ribbon cable is particularly suitable for electrical automation systems, manufacturing equipment wiring, and other applications requiring compact, durable, and reliable ribbon cable assemblies. The cable is RoHS compliant, underscoring its environmental safety standards.
The cable features flat ribbon form factor for neat wiring. 1.27 mm pitch ensures compatibility with standard IDC connectors. Beryllium copper alloy conductors guarantee high performance and durability. Polybutylene terephthalate jacket offers strong insulation and mechanical protection.
Wide operating temperature makes it usable in various industrial settings. Available options include strain reliefs and various mating connectors. Ideal for automation, industrial electronics, and wiring harness applications.
Explore more Ribbon Cable solutions at EnvMart for reliable electrical and electronic wiring components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this ribbon cable is 1.27 mm.
The length of this cable is 76.2 mm.
This model features 10 conductors.
The conductors are made from beryllium copper alloy, while the jacket is constructed from polybutylene terephthalate.
It operates reliably in temperatures ranging from -40°C to 105°C.
Yes, this ribbon cable is RoHS compliant, indicating it meets environmental safety standards.
The jacket of this cable is red in color.
It is suitable for electrical automation systems, manufacturing equipment wiring, and other applications requiring compact and reliable ribbon cable assemblies.
This series features a low profile design and multi-finger Tiger Eye contacts for high cycle life, enhancing its performance in high-precision applications.
The American Wire Gauge rating for this ribbon cable is 30 AWG.
Yes, optional rugged strain reliefs and various mating headers are available for enhanced robustness.
The country of origin for this cable is India.
