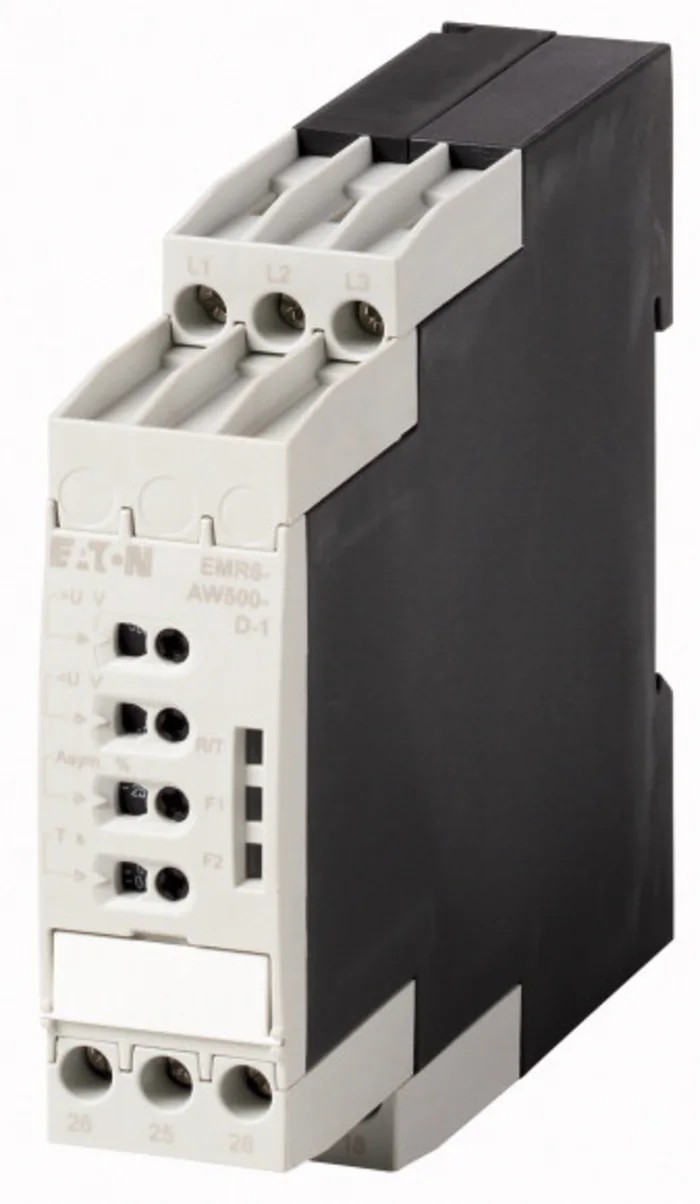

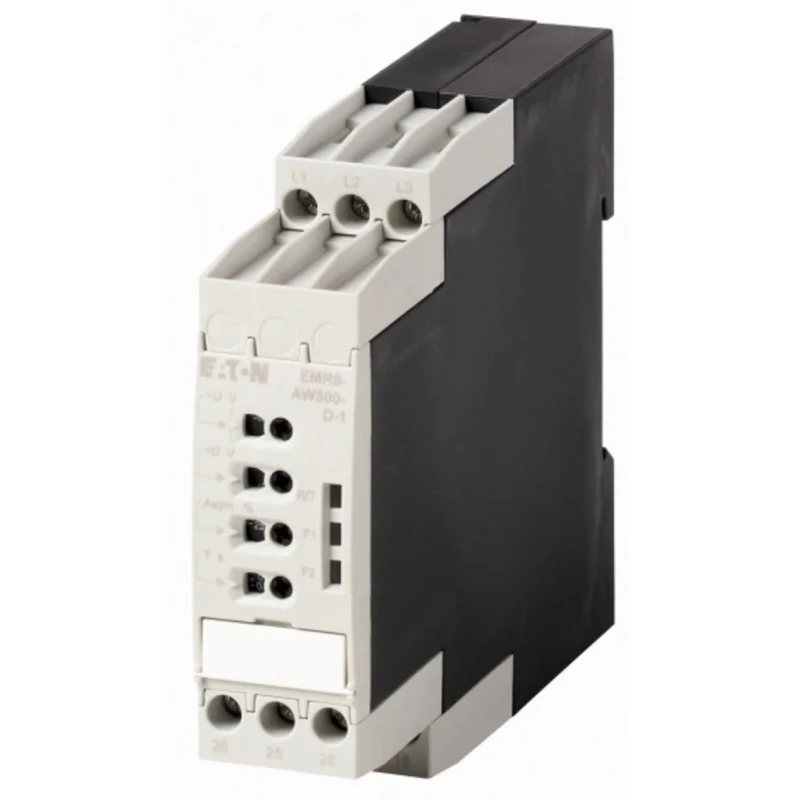

Eaton Monitoring Relay 3 Phase 300/500 V AC DIN Rail Mount 4A Screw Terminals EMR6-AW500-D-1 184764 EMR6-AW500-D-1
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Height | 78mm |
| Length | 109.5mm |
| Model | 184764 EMR6-AW500-D-1 |
| IP Rating | IP50, IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | EMR6 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | RoHS, UL, CSA, CCC, IEC, IEC 60068-2-30:24, GL |
| Contact Current | 4A |
| Supply AC Voltage | 300, 500V ac |
| Monitoring Voltage Range | 300/500 V ac |
| Standards/Approvals RoHS, UL, CSA, CCC, IEC, IEC 60068-2-30 | 24, GL |
Key Features
- Multifunctional phase monitoring for sequence, failure, undervoltage, overvoltage, and current imbalances.
- Flexible monitoring voltage range of 300 to 500 V AC.
- DIN rail mount for easy panel integration.
- Screw terminals provide reliable electrical connections.
- Operating temperature from -25°C to 60°C for harsh environments.
- Ingress protection ratings of IP50 and IP20 against dust.
- Compact size with 109.5mm length, 78mm height, and 22.5mm width.
- Contact current rating of 4A to support various loads.
Product Description
Eaton 184764 EMR6-AW500-D-1 Monitoring Relay is an advanced multifunctional phase monitoring device designed for safe operation of 3-phase electrical systems within 300 to 500 V AC voltage range. It is engineered to detect phase sequence integrity, phase failure, undervoltage and overvoltage conditions, and current imbalances to protect motors and electrical equipment from damage.
The relay is mounted on a standard DIN rail, enabling quick installation into control panels and electrical cabinets. Its screw-type terminals provide reliable and easy wiring connections. The unit operates reliably in industrial environments with a wide ambient temperature tolerance from -25°C up to 60°C and features ingress protection ratings of IP50 and IP20 against dust ingress and mechanical contact.
Designed for industrial and commercial use, this relay supports up to 4A contact current and measures compactly at 109.5mm in length, 78mm in height, and 22.5mm in width. Eaton’s EMR6 series products offer robust standards compliance including RoHS, UL, CSA, CCC, IEC, and GL certifications, emphasizing quality and performance.
The relay employs multicoloured LEDs providing clear visual indications of operational status or detected faults, enhancing maintenance efficiency. It withstands over 30 million mechanical operations, assuring extended service life.
Reliable phase monitoring is critical in three-phase systems to prevent motor overload from phase imbalance, avoiding excess heat and equipment damage. Multifunctional phase monitoring for electrical safety and protection.
DIN rail mounting for standardized panel integration. Screw terminals for secure electrical connections. Wide operating temperature range supporting harsh conditions. Ingress protection safeguarding against dust. Compact form factor for space-saving installation.
Visual LED fault indicators for rapid troubleshooting. High durability with millions of mechanical cycles.
This Eaton monitoring relay is ideal for industrial automation, factory electrical panels, HVAC systems, manufacturing equipment protection, and commercial electrical safety applications. Browse more Monitoring Relays at EnvMart for trusted industrial-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a flexible monitoring voltage range of 300 to 500 V AC.
The contact current rating is 4A, allowing it to support various loads.
This model measures 109.5mm in length, 78mm in height, and 22.5mm in width.
It operates reliably within a temperature range of -25°C to 60°C.
It features screw terminals for reliable electrical connections.
The relay is designed for DIN rail mounting, facilitating easy installation into control panels.
It has ingress protection ratings of IP50 and IP20 against dust and mechanical contact.
This model complies with RoHS, UL, CSA, CCC, IEC, and GL standards.
It monitors for phase sequence integrity, phase failure, undervoltage, overvoltage conditions, and current imbalances.
It is designed to withstand over 30 million mechanical operations, ensuring extended service life.
It is suitable for industrial automation, factory electrical panels, HVAC systems, and manufacturing equipment protection.
This model is part of Eaton's EMR6 series of monitoring relays.
