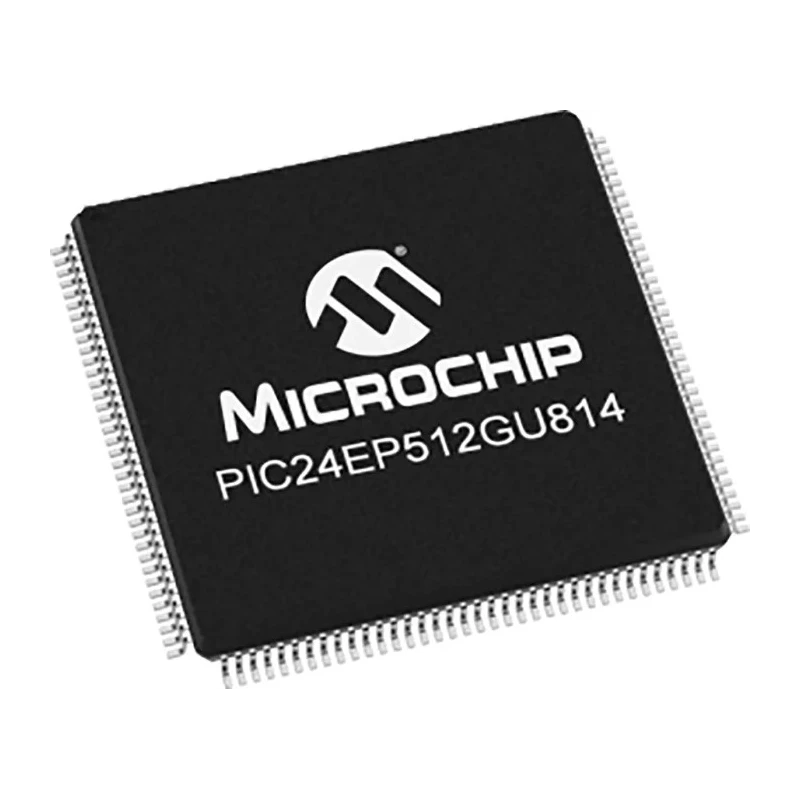

Microchip 16-bit PIC24E Microcontroller, 60 MHz, 536kB FLASH, 144-Pin TQFP PIC24EP512GU814-I/PH
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 16mm |
| Model | PIC24EP512GU814-I/PH |
| Width | 16mm |
| Mount Type | Surface |
| Series | PIC24E |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 52kB |
| Interface Type | QEI, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 144 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 536kB |
| Maximum Clock Frequency | 60MHz |
| Analogue Comparators | 3 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 32 x 10/12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 4 Bit |
Key Features
- Built on a 16-bit PIC architecture optimized for performance.
- Operates at a maximum clock frequency of 60 MHz.
- Includes 536kB of FLASH program memory and 52kB RAM.
- Equipped with 32 ADC channels with 10/12 bit resolution for precise analog input.
- Supports interfaces such as QEI and SPI for versatile connectivity.
- Features 3 analog comparators and 1 DAC with 4-bit resolution.
- Designed for operating voltage range of 3.0 V to 3.6 V.
- Maintains reliable operation from -40°C to 85°C ambient temperature.
Product Description
Microchip PIC24EP512GU814-I/PH is a highly capable 16-bit microcontroller built on the PIC24E series, featuring a 60 MHz maximum clock speed and 536kB FLASH program memory. Packaged in a 144-Pin TQFP surface-mount form, it supports advanced embedded system designs requiring high code density and speed.
This microcontroller incorporates a modified Harvard architecture with 16-bit data paths and 24-bit wide instructions optimized for C language programming. It provides advanced analog capabilities, including 32 ADC channels with 10/12-bit resolution, 3 analog comparators, and a 4-bit DAC, enabling precise sensor interfacing and control in industrial, automotive, and consumer applications.
Communication interfaces such as Quadrature Encoder Interface (QEI) and Serial Peripheral Interface (SPI) facilitate connectivity with a variety of modules and devices.
Operating over a voltage range of 3.0 to 3.6 volts, and supporting ambient temperatures from -40°C to 85°C, the device meets robust environmental requirements, including compliance with AEC-Q100 automotive standards.
The compact 16 mm by 16 mm dimensions and a low profile of 1.05 mm make this microcontroller suitable for space-constrained applications in embedded electronics, automotive systems, medical devices, and instrumentation.
Built on a 16-bit PIC architecture optimized for performance. Operates at a maximum clock frequency of 60 MHz. Includes 536kB of FLASH program memory and 52kB RAM. Equipped with 32 ADC channels with 10/12 bit resolution for precise analog input.
Supports interfaces such as QEI and SPI for versatile connectivity. Features 3 analog comparators and 1 DAC with 4-bit resolution. Designed for operating voltage range of 3.0 V to 3.6 V. Maintains reliable operation from -40°C to 85°C ambient temperature.
Built-in peripherals include 2 timers and supports AEC-Q100 automotive standard. Compact 16 mm x 16 mm x 1.05 mm form factor suitable for embedded system designs.
This Microchip PIC24E microcontroller is ideal for applications in industrial automation, automotive electronics, consumer devices, and other embedded control environments demanding high performance and reliable operation under diverse conditions.
Explore the full range of Microchip Microcontrollers and embedded solutions available at EnvMart for superior design flexibility and innovation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The microcontroller operates at a maximum clock frequency of 60 MHz.
It includes 536kB of FLASH program memory.
This unit is equipped with 32 ADC channels that offer 10/12-bit resolution.
It is designed to operate within a voltage range of 3.0 V to 3.6 V.
The dimensions are 16 mm in length, 16 mm in width, and it has a height of 1.05 mm.
It supports interfaces such as Quadrature Encoder Interface (QEI) and Serial Peripheral Interface (SPI).
It maintains reliable operation from -40°C to 85°C ambient temperature.
This microcontroller features 3 analog comparators.
It is packaged in a 144-Pin TQFP surface-mount form.
Yes, it complies with the AEC-Q100 automotive standard.
It includes 52kB of RAM.
This model includes 2 timers.
