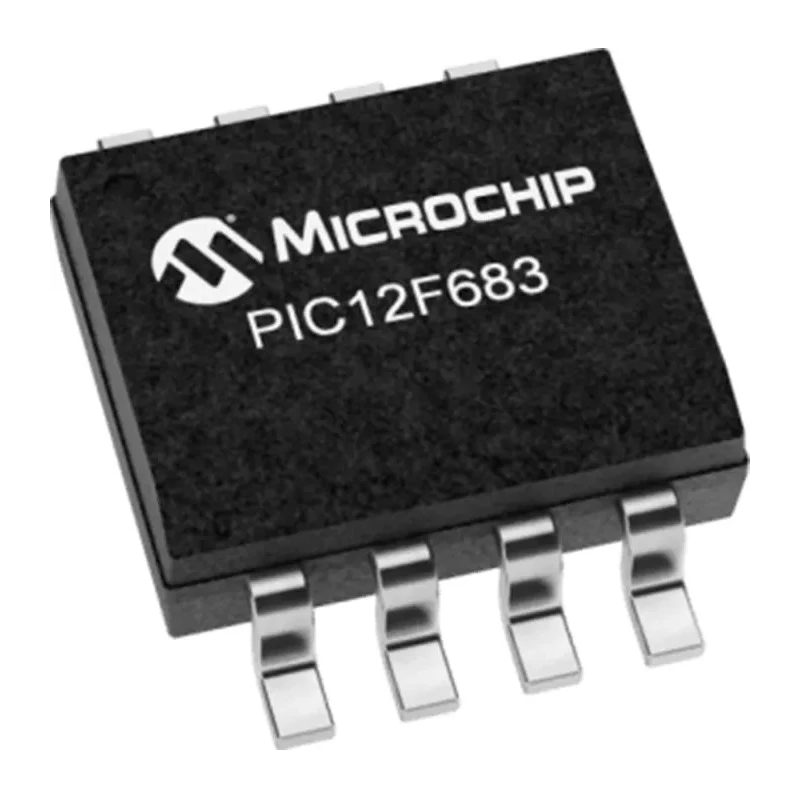

Microchip 8 bit PIC Microcontroller PIC12F683T-I/SN 20 MHz 3.5kB FLASH 8-Pin SOIC

Microchip PIC12F683T-I/SN is a high-performance 8 bit PIC microcontroller operating at a maximum clock frequency of 20 MHz. It features 3.5kB of FLASH program memory and 128-bit RAM size, designed within the PIC device core architecture. Packaged in an 8-Pin SOIC surface mount device, it offers compact dimensions of 4.9 mm length, 3.9 mm width, and 1.5 mm height, making it suitable for space-constrained applications.

This microcontroller supports operating voltages from 2.0 V up to 5.5 V and operates reliably in extreme temperatures ranging from -40°C to 85°C, making it ideal for industrial and automotive environments. It incorporates 4 channels of 10-bit Analog-to-Digital Converters (ADCs), a single analog comparator, on-chip programmable voltage reference, and a Capture/Compare/PWM (CCP) module for versatile control and measurement tasks.

Additional advanced features include 256 bytes of EEPROM data memory for non-volatile data storage, extended Watchdog Timer, precision internal oscillator selectable in software from 8 MHz to 32 KHz, and nanoWatt technology for energy-efficient operation. The device complies with RoHS standards and automotive quality standard ISO/TS 16949, ensuring compliance with environmental and manufacturing quality requirements.

The PIC12F683T-I/SN is designed for applications in consumer electronics, automotive systems, industrial control, and general embedded processing where a small, low-power microcontroller with decent memory and peripheral mix is required.

Features a mid-range x14 architecture with standardized microcontroller capabilities. Operates over a wide voltage range of 2.0 to 5.5 volts for versatile applications. Includes 256 bytes EEPROM data memory for non-volatile storage.

Provides 4 channels of 10-bit analog-to-digital converters and an analog comparator. Equipped with a programmable on-chip voltage reference and standard Capture/Compare/PWM module. Operates within temperature range of -40°C to 85°C for industrial reliability.

Compact design with 4.9 mm length, 3.9 mm width, and 1.5 mm height minimizes PCB footprint. Compliant with RoHS and automotive standard ISO/TS 16949 for quality assurance. Power dissipation rating of 800mW suitable for low power consumption needs.

This microcontroller is widely used in industrial, automotive, consumer electronics, and embedded system applications due to its compact size, feature set, and low power requirements. Explore more Microchip Microcontrollers and related semiconductor components at EnvMart for your development and manufacturing needs.
