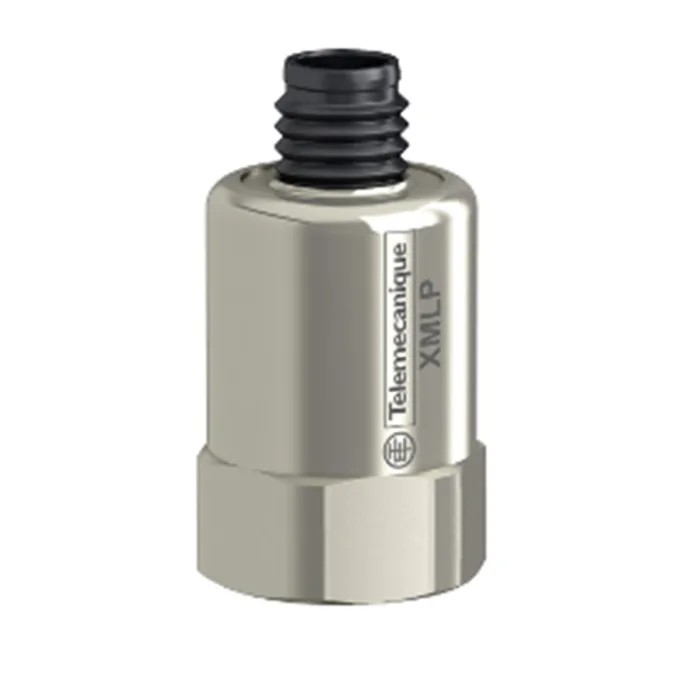

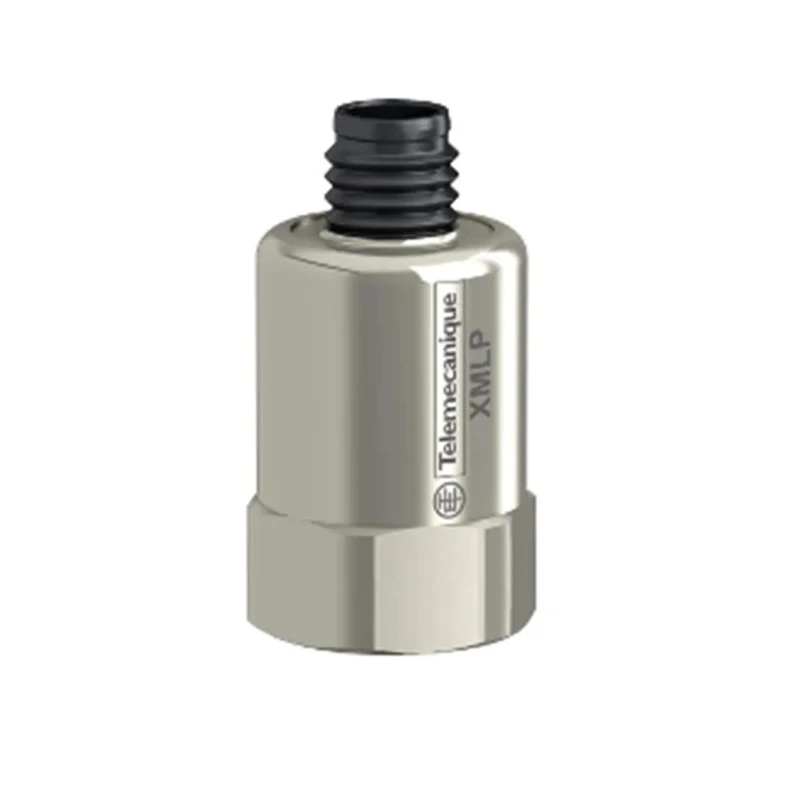

Telemecanique Sensors XMLP Series Pressure Switch Analogue Output 0 bar to 16 bar XMLP016BD190
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | 0.1 %, ±0.5 (Measurement) % |
| Brand | Telemecanique Sensors |
| Response time | 2ms |
| Model | XMLP016BD190 |
| IP Rating | IP67, IP65, IP69K |
| Housing Material | 303 Stainless Steel |
| Output type | Analogue |
| Series | XMLP |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Pressure Measurement | 16bar |
| Minimum Pressure Measurement | 0bar |
| Minimum Supply Voltage | 5V dc |
| Media Measured | Hydraulic Oil, Water, Gas, Refrigeration Fluid, Air |
Key Features
- Operates with a minimum supply voltage of 5V dc for reliable performance.
- Features a fast response time of 2 milliseconds suitable for dynamic pressure monitoring.
- Constructed with 303 stainless steel housing ensuring durability and corrosion resistance.
- Rated to withstand maximum operating temperatures up to 85°C and minimum down to -30°C.
- Protected with high IP ratings of IP67, IP65, and IP69K for harsh environments.
- Compatible media includes hydraulic oil, water, gas, refrigeration fluid, and air.
- Designed according to IEC 60068-2-27, IEC 61326-2-3, RCM, CE, cULus, NSF ANSI 61, and IEC 60068-2-6 standards.
- Suitable for industrial, automation, and control applications requiring precise pressure switching.
Product Description
Telemecanique Sensors XMLP016BD190 Pressure Switch from the XMLP Series offers analogue output with a pressure measurement range from 0 bar to 16 bar and accuracy of 0.1 %, ±0.5 %. Designed for precise and reliable pressure detection, it operates on a 5V dc supply voltage and features a rapid 2 ms response time, making it ideal for fast industrial automation and control applications.
The pressure switch utilizes a robust 303 stainless steel housing to ensure resistance to corrosion and mechanical damage. It is rated for operation in extreme temperature conditions ranging from -30°C to 85°C. The device carries multiple IP ratings (IP67, IP65, IP69K), providing excellent protection against dust, water ingress, and steam cleaning processes.
The switch is compatible with various media including hydraulic oil, water, gas, refrigeration fluids, and air, broadening its industrial applicability including HVAC, manufacturing plants, hydraulic systems, and pneumatic controls.
The XMLP Series pressure transmitters integrate ceramic pressure measuring cells for ratings below 9 bar, offering high sensitivity and resistance to abrasive fluids; for ratings 9 bar and above, metal pressure cells welded directly to the stainless steel body ensure durability and performance stability.
Operates at 5V dc supply with analogue output for seamless signal integration. High accuracy and quick response time provide efficient monitoring and control. Stainless steel housing and high IP ratings ensure reliability in extreme environments.
Meets international standards including IEC and cULus for quality assurance. Applicable across a wide range of industries including hydraulic, refrigeration, and automation sectors. The package does not specify weight or dimensions; please consult datasheets for mechanical details. This product is new and made in India by default unless otherwise specified.
Explore additional pressure sensors and control devices in the Electronics & Electricals > Sensors > Pressure Switch category at EnvMart.
