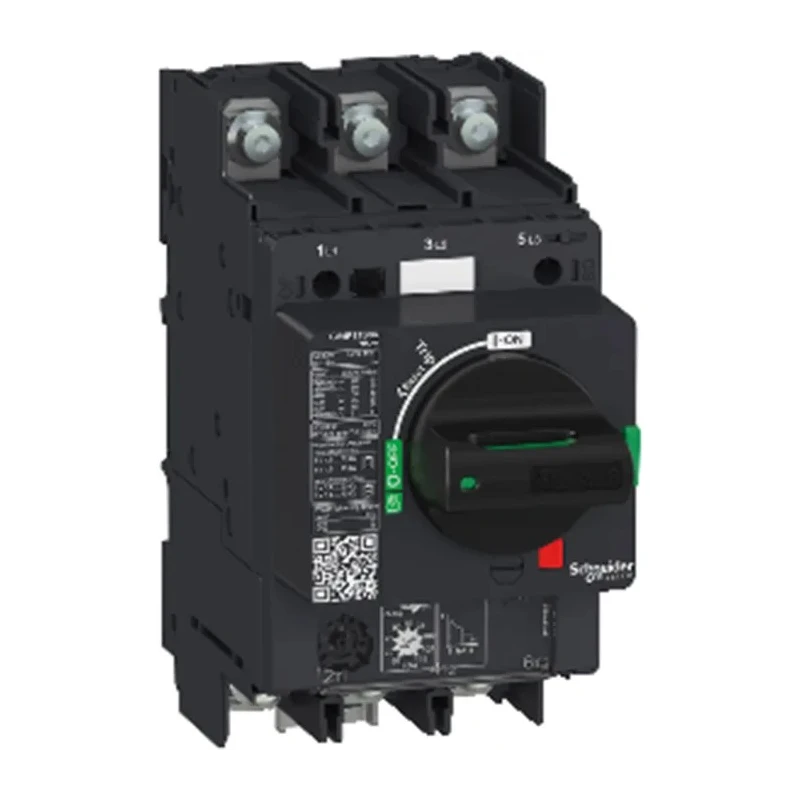

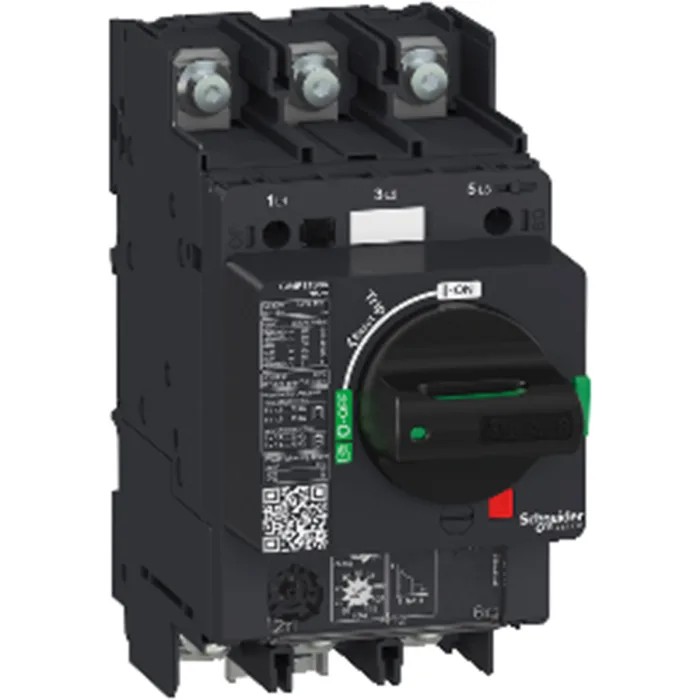

Schneider Electric TeSys GV Thermal Circuit Breaker 80A 3-Pole Direct Mount Screw Terminal Thermal Magnetic Tripping GV4P80B

Schneider Electric GV4P80B TeSys GV Thermal Circuit Breaker is a robust and precise motor protection device engineered for reliable operation in industrial electrical setups. This 3-pole, 80A rated breaker is built to protect 3-phase motors ranging from 22 to 37 kW at 400V. Its design incorporates a thermal magnetic tripping mechanism supporting a wide adjustable range for thermal protection from 40 to 80 amps and selectable tripping classes 10 or 20, providing optimum flexibility for motor protection.

The device is directly mounted and utilizes Everlink BTR screw terminals, ensuring secure and stable electrical connections. It operates at a rated AC voltage of up to 690 volts and provides a breaking capacity of 10kA, suitable for typical industrial applications requiring medium breaking capability. The toggle switch actuator resets the device manually, facilitating straightforward operational control.

This circuit breaker offers enhanced motor protection with features including fixed short time delay protection at 13 times the rated current, phase unbalance protection, and ground fault safeguards. Additional modularity options are available such as auxiliary contact blocks (OF, SD) and voltage trip units (MN, MX).

Compliant with multiple international standards (IEC, UL, CSA, CCC, EAC, Marine, ATEX) and Green Premium environmental marks including RoHS and REACh, it is designed for efficient, eco-friendly operation in diverse industrial environments including manufacturing, automation, and building electrical installations.

Technical dimensions are 165mm width, 116mm height, and 116mm depth, allowing compact yet effective integration into motor control centers. Provides thermal magnetic protection with adjustable thermal settings and dual tripping classes for motor safety.

Direct mount design with secure screw terminals for reliable connectivity. Breaking capacity of 10kA rated for up to 690V AC applied voltage. Multi-standard compliance ensures robust and certified motor protection under various regulations.

Advanced motor protection functions include short time delay, phase loss, unbalance, and ground fault detection. Toggle switch reset actuator enables simple manual control and maintenance. Internal slots support auxiliary contacts and voltage trip units to customize control and signaling.

The Schneider Electric TeSys GV breaker GV4P80B is ideal for industrial, manufacturing, and automation applications, ensuring motor protection, operational safety, and compliance with international standards. Browse EnvMart for related electrical protection devices from Schneider Electric and other leading manufacturers.
