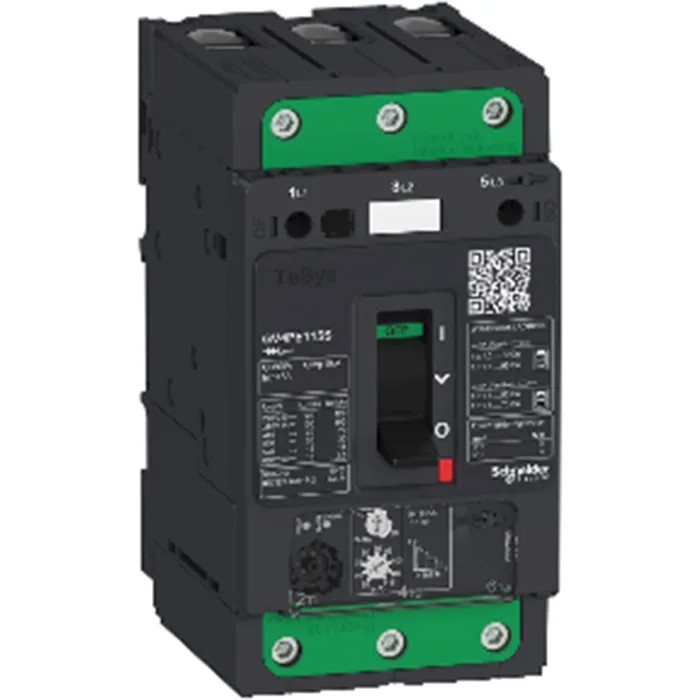

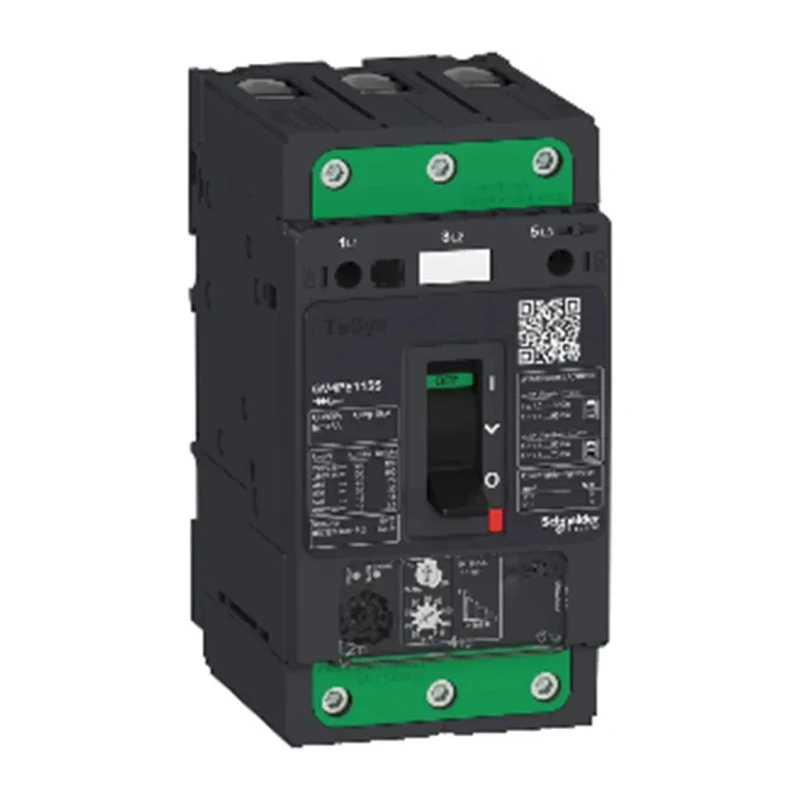

Schneider Electric TeSys TeSyS GV Thermal Circuit Breaker 80A Current Rating 3-Pole DIN Rail GV4PE80S
Specifications
| Country of Origin | Poland |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 155mm |
| Model | GV4PE80S |
| Depth | 155mm |
| Width | 116mm |
| Mount Type | DIN Rail |
| Current Rating | 80A |
| Series | TeSyS GV |
| Terminal type | Screw |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | CSA, CCC, EAC, MR, EU-RO MR, REACH, ATEX, RoHS, UL, IEC, EN |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| b Magnetic GV4L | to be used with an overload relay or a drive |
| b Thermal magnetic GV4P | electronic protection with wide range setting, dual class (10 & 20) |
| b Multifunction motor protection GV4PEM | GV4P with adjustable advanced protections and possibility to have |
Key Features
- Provides thermal magnetic protection with adjustable current settings between 40-80A.
- Equipped with toggle switch reset actuator for easy manual control.
- Breaking capacity rated at 10kA suitable for industrial applications.
- Compliant with multiple international certifications including IEC, UL, CSA, CCC, and ATEX.
- Constructed for 3-phase motors of 22-37 kW at 400V supply voltage.
- Supports additional motor protection features such as phase unbalance and ground fault protections.
- Includes internal slots for auxiliary contact blocks and voltage trip units.
Product Description
Schneider Electric GV4PE80S is a TeSys GV series thermal circuit breaker designed for motor protection in industrial settings. It features a 3-pole design and is rated for 80A current and 690V AC voltage, making it suitable for 3-phase motors from 22 to 37 kW at 400V.
This device provides reliable thermal magnetic tripping mechanism with thermal protection adjustable via dials. The magnetic protection triggers at 17 times the nominal current for effective short circuit protection. Additional protections include short time delay, phase unbalance, loss protection, and ground fault detection, enhancing motor safety.
The GV4PE80S mounts on DIN rails and connects through Everlink BTR screw terminals, allowing firm and secure wiring installation. Its toggle switch actuator facilitates easy start-stop control. The circuit breaker meets multiple global standards including CSA, CCC, EAC, MR, EU-RO MR, REACH, ATEX, RoHS, UL, IEC, and EN certifications, ensuring compliance and quality.
Internal slots allow integration of auxiliary contact blocks (e.g., OF, SD) and voltage trip units (MN, MX), offering custom expandability for specific industrial application needs.
This Thermal Circuit Breaker is suitable for a broad range of industrial, manufacturing, electrical, and automation applications requiring motor protection, control and safety. Provides thermal magnetic protection with adjustable current settings between 40-80A.
Equipped with toggle switch reset actuator for easy manual control. Breaking capacity rated at 10kA suitable for industrial applications. Compliant with multiple international certifications including IEC, UL, CSA, CCC, and ATEX.
Constructed for 3-phase motors of 22-37 kW at 400V supply voltage. Supports additional motor protection features such as phase unbalance and ground fault protections. Includes internal slots for auxiliary contact blocks and voltage trip units.
For high-quality motor circuit protection, explore the full range of Schneider Electric products and industrial electrical components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GV4PE80S thermal circuit breaker has a current rating of 80A.
It has a breaking capacity rated at 10kA, making it suitable for industrial applications.
This thermal circuit breaker is rated for 690V AC voltage.
It is designed for mounting on DIN rails, facilitating easy installation.
It supports features such as phase unbalance protection, ground fault detection, and short time delay for enhanced motor safety.
The dimensions of this model are 155mm in height, 155mm in depth, and 116mm in width.
The GV4PE80S utilizes a thermal magnetic tripping mechanism for effective protection.
It is equipped with a toggle switch reset actuator for easy manual control.
This circuit breaker complies with multiple international certifications including IEC, UL, CSA, CCC, and ATEX.
The current settings for the GV4PE80S are adjustable between 40A and 80A.
It uses Everlink BTR screw terminals for secure wiring installation.
It is suitable for motor protection in a broad range of industrial, manufacturing, electrical, and automation applications.
