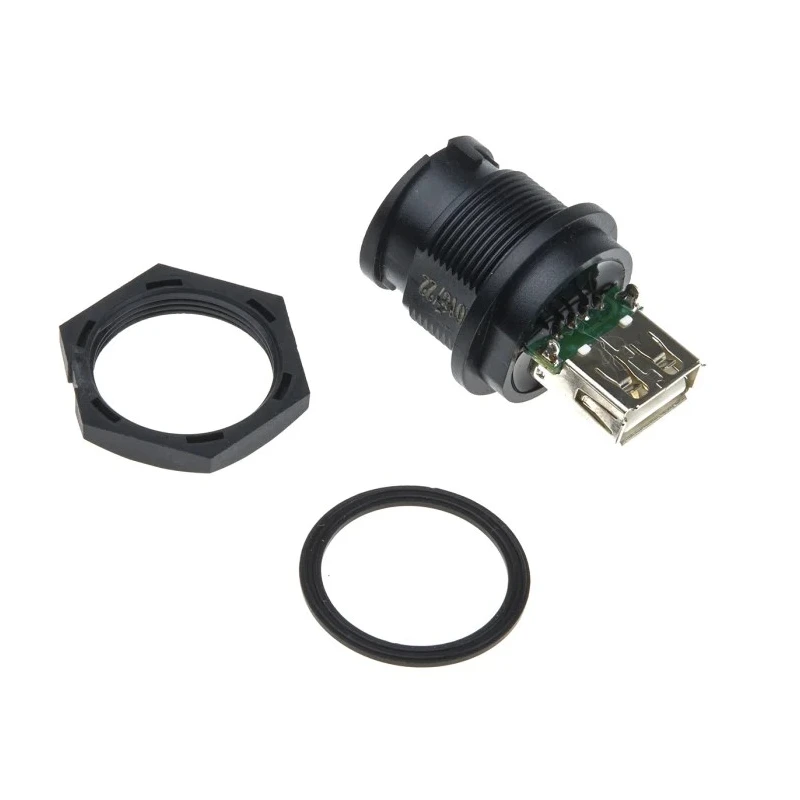

Amphenol Industrial Panel Mount USB Type A Connector Female, Straight Orientation, 1 Port, IP67, USB 2.0 UA-20PMFJ-NC7001
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 1A |
| Model | UA-20PMFJ-NC7001 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Contact Material | Copper Alloy |
| Series | UA |
| Number Of Ports | 1 |
| Termination Type | PCB |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| USB Type | USB Type A |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Features a straight orientation with 1 port for USB Type A connection.
- Rated for USB 2.0 data transfer speeds supporting up to 1A current.
- Constructed with copper alloy contacts ensuring reliable conductivity.
- Designed with a PCB termination type and panel mount configuration for easy installation.
- Can operate in extreme temperature ranges from -20°C to 70°C.
- IP67 rated for protection against dust and water ingress.
- Breakdown voltage of at least AC500V for one minute ensuring electrical safety.
- Front fastened dust-tight receptacle ideal for harsh environments.
Product Description
Amphenol Industrial UA-20PMFJ-NC7001 is a high-quality panel mount USB Type A female connector designed for rugged industrial environments. It features a straight orientation with a single port, rated for USB 2.0 standard ensuring reliable data transfer. The connector is made with copper alloy contacts that provide optimal electrical conductivity and durability.
The device supports a current rating of 1A and can safely operate under a voltage of up to 100V. Its PCB termination type and panel mount design allow for secure and stable installation on electronic equipment panels.
With an IP67 rating, this USB connector offers complete protection against dust ingress and water immersion up to 1 meter depth, making it suitable for outdoor and industrial applications. It maintains insulation resistance of at least 1000 MΩ at 500 VDC and a contact resistance not exceeding 30 mΩ, assuring excellent electrical performance.
Operating temperature range from -20°C to 70°C allows it to perform reliably in extreme temperature conditions. The connector's robust construction includes a circular backshell and front fastened dust-tight receptacle that resists environmental contaminants.
This connector finds applications in fields such as automotive diagnostics, data centres, industrial automation systems, marine electronics, and various portable devices. Its breakdown voltage meets or exceeds AC 500V for one minute, ensuring safe operation under electrical stress.
Features a straight orientation with 1 port for USB Type A connection. Rated for USB 2.0 data transfer speeds supporting up to 1A current. Constructed with copper alloy contacts ensuring reliable conductivity. Designed with a PCB termination type and panel mount configuration for easy installation.
Can operate in extreme temperature ranges from -20°C to 70°C. IP67 rated for protection against dust and water ingress. Breakdown voltage of at least AC500V for one minute ensuring electrical safety. Front fastened dust-tight receptacle ideal for harsh environments.
Applicable in auto diagnostics, data centres, industrial automation, marine electronics and portable devices. It is supplied new and meets IP67 standards to ensure optimal performance in industrial environments. Explore more industrial USB Connectors and related products at EnvMart for all your industrial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This USB connector can operate at a maximum temperature of 70°C.
It has an IP67 rating, providing protection against dust and water ingress.
This model supports USB Type A connections and complies with USB 2.0 specifications.
The connector supports a current rating of up to 1A.
It is constructed with copper alloy contacts to ensure reliable conductivity.
It features a panel mount configuration for easy installation on electronic equipment panels.
The breakdown voltage is at least AC 500V for one minute, ensuring electrical safety.
The minimum operating temperature is -20°C.
This model has a single port for USB Type A connection.
It uses a PCB termination type for secure connections.
It is suitable for applications in automotive diagnostics, data centres, industrial automation, marine electronics, and various portable devices.
The contact resistance does not exceed 30 mΩ, assuring excellent electrical performance.
