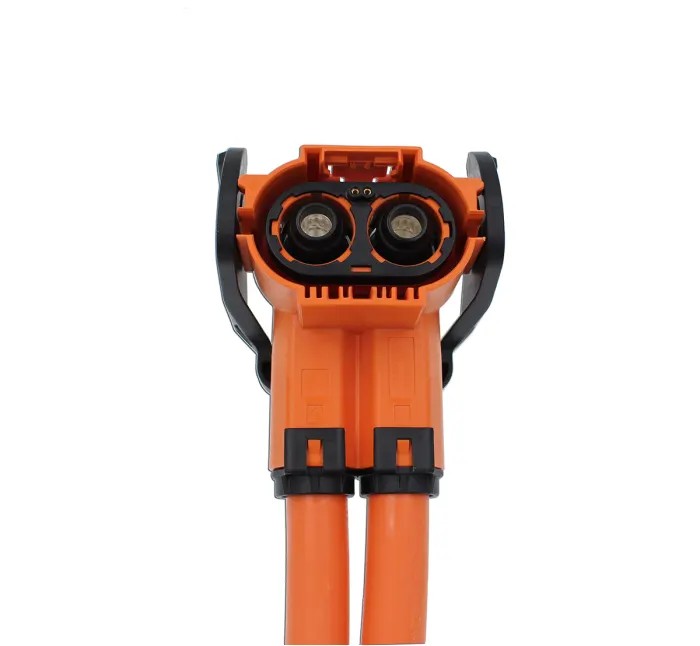

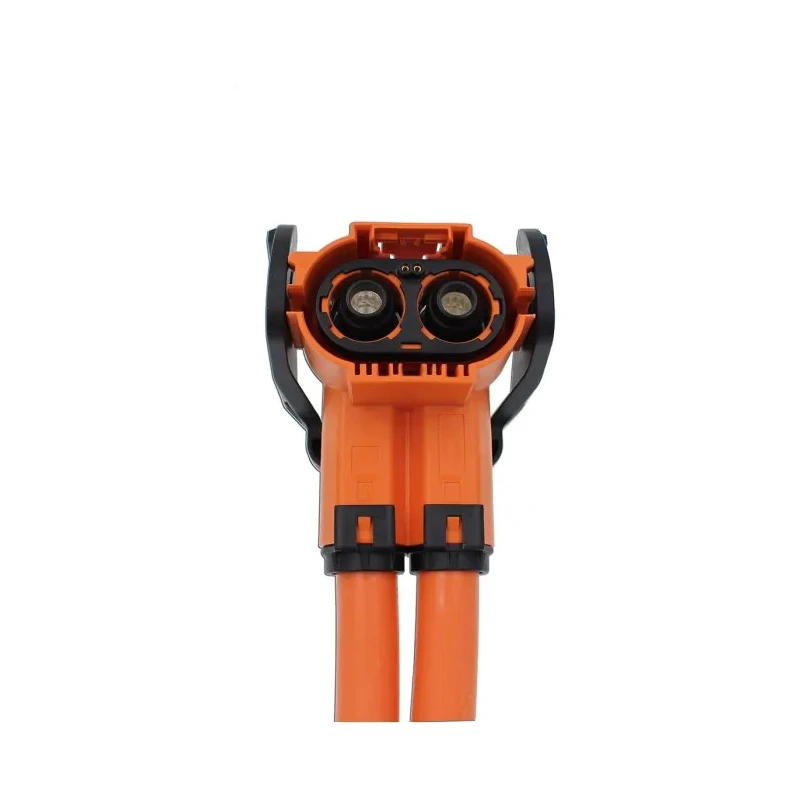

Amphenol Industrial HVSL800 Type EV Connector Female 180A 1000V Thermoplastic Housing
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 180A |
| Height | 94.6mm |
| Model | HVSL800 |
| Depth | 59.7mm |
| IP Rating | IP69K, IP67 |
| Connector Type | Type EV |
| Width | 80.9mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | HVSL800 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 35mm² |
| Operating Voltage | 1000V |
| For Use With | High Power Connector System |
| Standards/Approvals | EN 60664-1 |
| Contact Plating | Silver |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Key Type | Type A |
Key Features
- This connector features a thermoplastic housing with high durability.
- Rated current capacity reaches 180 amperes suitable for high power electric vehicle systems.
- Connector has a crimp termination type with copper alloy male contacts plated in silver.
- IP69K and IP67 rated for robust protection against dust and water ingress.
- Operating temperature ranges from -40°C up to 125°C for harsh environments.
- Connector includes integrated internal HVIL and is touch-proof with multiple coding positions.
- The product fulfills EN 60664-1 compliance standards for electrical connectors.
- Color is orange and designed to mount on cables in high power connector systems.
Product Description
Amphenol Industrial HVSL800 Type EV Connector Female, model HVSL800082A135, is engineered for electric vehicle (xEV) applications requiring high current transmission. It supports a nominal current of 180A and an operating voltage of 1000V, making it highly suitable for battery, inverter, junction box, and power distribution box connections.
The connector features a rugged thermoplastic housing designed to withstand extreme conditions, with operation supported between -40°C and 125°C. Its IP69K and IP67 ingress protection ratings provide excellent resistance to dust and water, ensuring durability in automotive and industrial environments.
The connector is right angle in orientation, colored orange for easy identification, and mounts directly on cables. Its contact pins are made from copper alloy and plated with silver to optimize electrical conductivity and reduce corrosion.
Integration of an internal HVIL (High Voltage Interlock Loop) adds a safety feature essential for electric vehicles. No tools are required to unmate this touch-proof connector, and CPA (Connector Position Assurance) mechanisms ensure secure connections. Multiple coding positions prevent mismating.
This connector features a thermoplastic housing with high durability. Rated current capacity reaches 180 amperes suitable for high power electric vehicle systems. Connector has a crimp termination type with copper alloy male contacts plated in silver.
IP69K and IP67 rated for robust protection against dust and water ingress. Operating temperature ranges from -40°C up to 125°C for harsh environments. Dimensions include a height of 94.6mm, width of 80.9mm, and depth of 59.7mm with right-angle orientation.
Connector includes integrated internal HVIL and is touch-proof with multiple coding positions. The product fulfills EN 60664-1 compliance standards for Electrical Connectors. Color is orange and designed to mount on cables in high power connector systems.
This connector is manufactured in China and complies with industry standards, suitable for industrial, automotive, and electric vehicle manufacturing applications. Its design caters to high power transmission needs within modern xEV systems, ensuring safety, longevity, and performance.
Explore our extensive catalog for more connectors and electrical components optimized for automotive and industrial power systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HVSL800 connector has a rated current capacity of 180 amperes, making it suitable for high power electric vehicle systems.
This connector operates at a maximum voltage of 1000 volts, which is ideal for electric vehicle applications.
The HVSL800 connector has IP69K and IP67 ratings, providing robust protection against dust and water ingress.
It can operate in temperatures ranging from -40°C to 125°C, suitable for harsh environments.
The housing is made from thermoplastic, and the contact pins are copper alloy plated with silver to enhance conductivity and reduce corrosion.
The HVSL800 features a crimp termination type, which is commonly used in high power applications.
This connector has a right angle orientation, which aids in space-saving installations.
The connector has dimensions of 94.6mm in height, 80.9mm in width, and 59.7mm in depth.
The HVSL800 connector features 2 contacts, with male contacts designed for high power connections.
It includes an internal High Voltage Interlock Loop (HVIL) and is designed to be touch-proof, enhancing safety during operation.
The HVSL800 fulfills EN 60664-1 compliance standards for electrical connectors, ensuring it meets industry requirements.
This connector is designed for use in high power connector systems, particularly in automotive and electric vehicle manufacturing applications.
