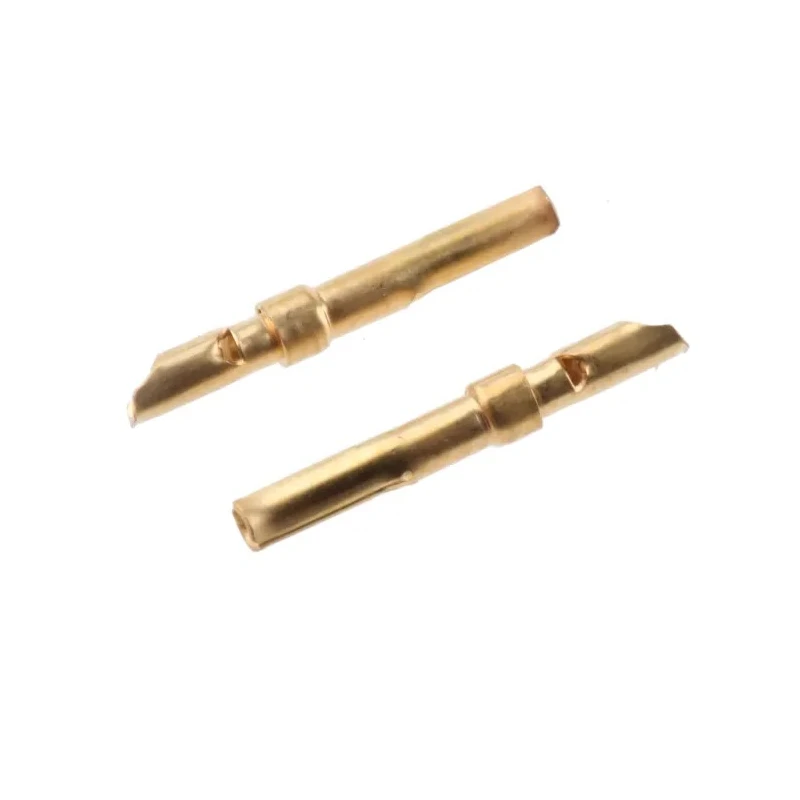

TE Connectivity AMPLIMITE HDP-20 Series Female Solder Cup D-Sub Connector Contact 1.2A Gold over Nickel 66569-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Length | 14.22mm |
| Model | 66569-3 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Solder Cup |
| Contact Type | Socket |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.8mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 24AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Constructed with phosphor bronze contact material for excellent conductivity.
- Features gold over nickel plating to enhance corrosion resistance and durability.
- Rated for a current of 1.2A, suitable for low power electronic applications.
- Socket type contact designed for female termination via solder cup.
- Compatible with wire sizes ranging from 18 AWG to 24 AWG (0.2mm² to 0.8mm²).
- Contact size 20, length of 14.22 mm for precise fitment in AMPLIMITE HDP-20 series connectors.
- Ideal for use in industrial, laboratory, and manufacturing electronic equipment.
- Snap-in style termination facilitates easy assembly and maintenance.
Product Description
TE Connectivity 66569-3 Female Solder Cup D-Sub Connector Contact belongs to the AMPLIMITE HDP-20 Series, engineered for robust and reliable performance in electronic and industrial applications. This contact is manufactured from high-quality phosphor bronze material for excellent electrical conductivity and mechanical strength, making it ideal for demanding environments.
The contact features a gold over nickel plating which ensures superior corrosion resistance and low contact resistance of 15 milliohms maximum. It is designed as a socket type contact suitable for female connections, terminating via a solder cup that accepts wire gauges from 18 AWG to 24 AWG (approximate cross-sectional area of 0.2mm² to 0.8mm²).
With a current rating of 1.2 amps, this contact is suitable for low current applications commonly found in electronic devices, instrumentation, and control systems. The contact size 20 and length of 14.22 mm is specifically tailored for the AMPLIMITE HDP-20 series connectors, ensuring perfect compatibility and secure connections.
This product is beneficial in industrial manufacturing, laboratory instrumentation, and electronic assembly sectors, where precise and reliable connections are critical. The snap-in solder cup termination allows for straightforward installation and replacement, improving production efficiency and maintenance.
These contacts do not carry specific industry certifications but conform to the engineering standards of the AMPLIMITE HDP-20 series, ensuring dependable quality and performance. Constructed with phosphor bronze contact material for excellent conductivity.
Features gold over nickel plating to enhance corrosion resistance and durability. Rated for a current of 1.2A, suitable for low power electronic applications. Socket type contact designed for female termination via solder cup.
Compatible with wire sizes ranging from 18 AWG to 24 AWG (0.2mm² to 0.8mm²). Contact size 20, length of 14.22 mm for precise fitment in AMPLIMITE HDP-20 series connectors. Ideal for use in industrial, laboratory, and manufacturing electronic equipment.
Snap-in style termination facilitates easy assembly and maintenance. Discover our extensive selection of high-quality electronic connectors and compatible accessories at EnvMart for your industrial and manufacturing needs.
Explore more products in our Electrical Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1.2A, making it suitable for low power electronic applications.
It is compatible with wire sizes ranging from 18 AWG to 24 AWG, equivalent to approximately 0.2mm² to 0.8mm².
The contact length is 14.22 mm, designed for precise fitment in AMPLIMITE HDP-20 series connectors.
The contact is constructed from phosphor bronze, which provides excellent electrical conductivity and mechanical strength.
This model features a solder cup termination type, designed for female connections.
The maximum contact resistance is 15 milliohms, ensuring low resistance connections.
Yes, it is ideal for use in industrial, laboratory, and manufacturing electronic equipment due to its robust design.
The contact size for this connector is size 20, specifically designed for the AMPLIMITE HDP-20 series.
The gold over nickel plating enhances corrosion resistance and reduces contact resistance, improving overall performance.
It is designed for low current applications commonly found in electronic devices, instrumentation, and control systems.
The country of origin for this model is India.
The snap-in style termination allows for straightforward installation and replacement, improving production efficiency and maintenance.
