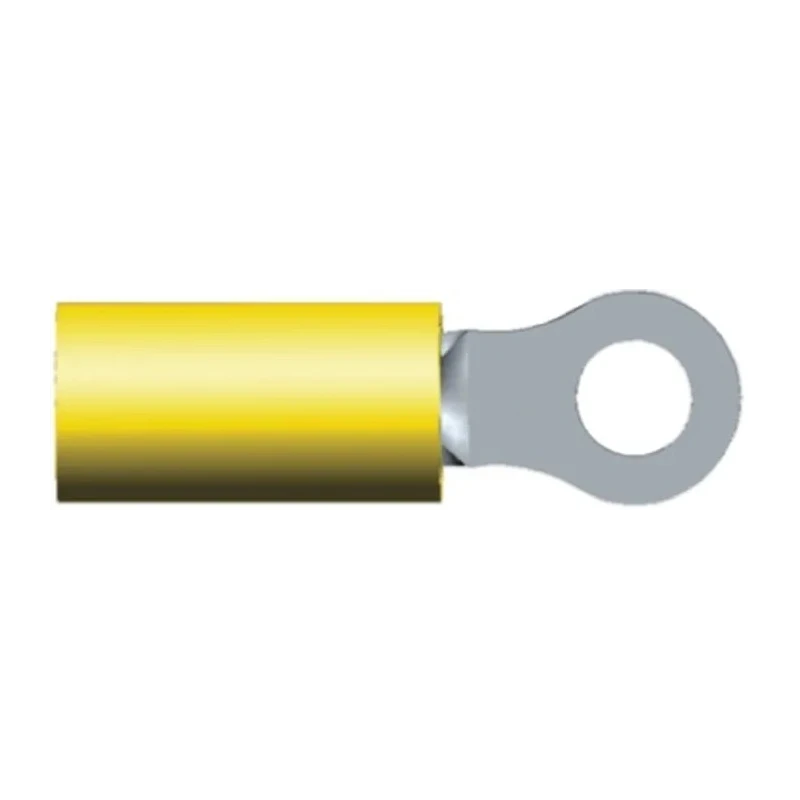

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 12 AWG to 10 AWG Wire Size Yellow 35787

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 12 AWG to 10 AWG Wire Size Yellow 35787

Name: TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 12 AWG to 10 AWG Wire Size Yellow 35787
Brand: TE Connectivity
SKU: 346328
Price: 1.11 USD
Availability: InStock



Category Electrical Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Yellow
Model	35787
Insulation	Insulated
Overall Length	26.19mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Stud Size	M4
TE Connectivity Crimp Ring Terminal, 4mm Stud Size, YellowBrand	TE Connectivity

Key Features

Constructed from high conductivity copper for excellent electrical performance.
Features a nylon insulated sleeve for wire size identification and added durability.
Wire barrel includes serrations to ensure strong contact and tensile strength after crimping.
Copper sleeve inside the barrel prevents wire fraying and improves insulation support.
Designed for reliable and uniform crimping with specialized tool dies.
Suitable for use in control instruments, lighting, power supplies, panel boxes, transportation, motors, aerospace, and appliances.
Maximum operating temperature of 105°C supports demanding electrical environments.
Yellow colour coding matches wire size for easy installation and identification.

Product Description

TE Connectivity 35787 PIDG insulated ring terminal offers reliable electrical connections for wire sizes 12 AWG to 10 AWG, featuring an M4 stud size and yellow nylon insulation sleeve. This ring terminal is designed with a precision-formed copper body and barrel to ensure excellent conductivity and durable performance in demanding circuit environments.

The design includes serrations inside the wire barrel that maximize contact and tensile strength after crimping, while a copper sleeve inside the barrel prevents fraying and enhances insulation support. The outer yellow nylon sleeve provides a colour-coded aid for quick wire size identification and offers additional durability.

High-quality construction ensures the terminal can withstand temperatures up to 105°C, making it well-suited for various electrical applications such as instruments, control systems, lighting, panel boxes, power supplies, transportation systems, lifting equipment, motors, aerospace, and household appliances.

The funnelled wire entry design allows for fast wire insertion during high-speed production environments and guarantees consistent, reliable crimps with the use of specialized tooling dies. These features combine to offer a uniform and dependable electrical connection in industrial and commercial settings.

Manufactured in the United States, the TE Connectivity PIDG ring terminals meet demanding industrial and regulatory requirements, providing peace of mind with quality and performance.

High conductivity copper body for superior electrical flow. Copper sleeve enhances insulation support and prevents fray. Serrations in barrel ensure secure contact and tensile strength. Colour-coded nylon insulation sleeve for wire size identification.

Funnelled wire entry allows easy, reliable insertion. Designed for uniform crimps with specialized tool dies. Maximum operating temperature 105°C suitable for harsh environments. Applications include aerospace, motors, lighting, and control instruments.

Made in the United States ensuring quality manufacturing. Explore the TE Connectivity product range and enhance your electrical installation projects with premium quality ring terminals at EnvMart.

Explore more products in our Electrical Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This ring terminal is designed for wire sizes ranging from 12 AWG to 10 AWG, which corresponds to a minimum wire size of 2.6 mm² and a maximum wire size of 6.6 mm².

The maximum operating temperature for this terminal is 105°C, making it suitable for demanding electrical environments.

The stud size for this insulated ring terminal is M4.

The terminal features a high conductivity copper body for excellent electrical performance and a nylon insulated sleeve for added durability and wire size identification.

The wire barrel includes serrations that ensure strong contact and tensile strength after crimping, while a copper sleeve inside prevents wire fraying and improves insulation support.

This terminal has a nylon insulation sleeve, which provides additional durability and aids in wire size identification.

It is suitable for various applications including control instruments, lighting, power supplies, panel boxes, transportation systems, motors, aerospace, and household appliances.

The overall length of this ring terminal is 26.19 mm.

The funnelled wire entry design allows for fast wire insertion, which is particularly beneficial in high-speed production environments, ensuring consistent and reliable crimps.
