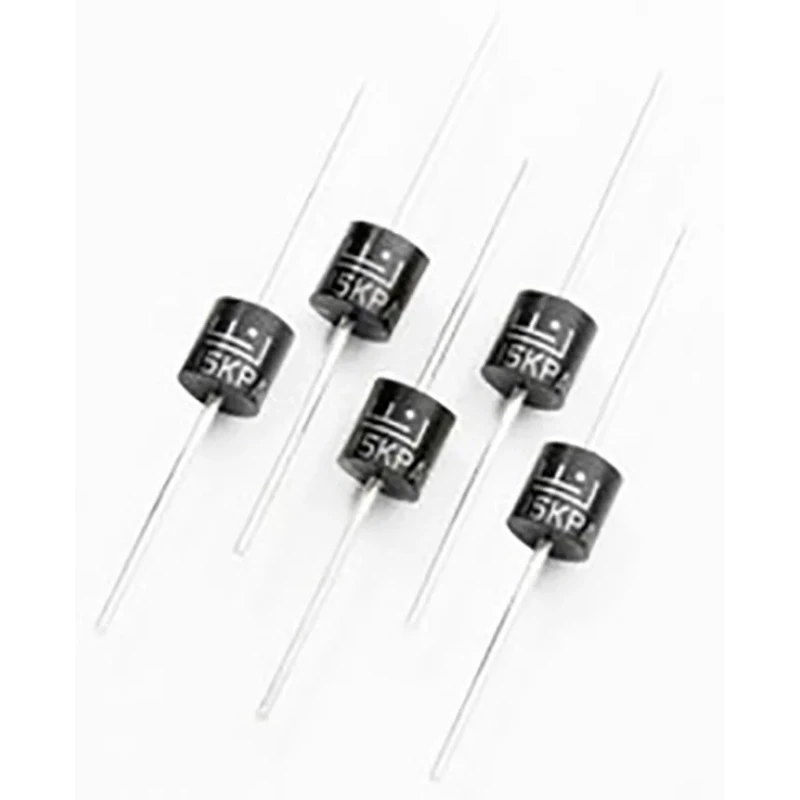

Littelfuse 1-Element Bi-Directional TVS Diode 15000W Peak Pulse Power, 2-Pin P600 15KPA33CA

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse 1-Element Bi-Directional TVS Diode 15000W Peak Pulse Power, 2-Pin P600 15KPA33CA

Name: Littelfuse 1-Element Bi-Directional TVS Diode 15000W Peak Pulse Power, 2-Pin P600 15KPA33CA
Brand: LITTELFUSE
SKU: 151017



Category TVS Diodes Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Diameter	9.1mm
Brand	Littelfuse
Length	9.1mm
Model	15KPA33CA
Mount Type	Through Hole
Series	15KPA
Maximum Operating Temperature	175°C
Package Type	P600
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	54.7V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	36.9V
Maximum Reverse Stand-off Voltage Vwm	33V
Peak Pulse Power Dissipation Pppm	15000W
Test Current It	5mA
Maximum Peak Pulse Current Ippm	276.1A
Maximum Reverse Leakage Current	2μA
Fast response time	typically less than 1.0ps from 0 Volts to BV min

Key Features

Features a single diode configuration for effective transient voltage suppression.
Bi-directional design suitable for handling voltages in both polarities.
Through-hole mount type with P600 package provides easy PCB integration.
Rated for a peak pulse power dissipation of 15000 watts.
Maximum reverse stand-off voltage of 33 volts ensures protection below this threshold.
Operates reliably between temperatures of -55°C to 175°C.
Clamping voltage of 54.7 volts minimizes voltage spikes during transient events.
Pin count of 2 pins simplifies circuit connectivity.

Product Description

Littelfuse 15KPA33CA is a single-element bi-directional Transient Voltage Suppressor (TVS) diode designed to safeguard sensitive electronic devices from voltage spikes induced by lightning surges and other transient voltage conditions. It offers robust protection with a peak pulse power dissipation rating of 15000 watts, making it suitable for high energy transient events.

Featuring a through-hole P600 package, this device is easy to mount on printed circuit boards for reliable performance. The diode provides a maximum reverse stand-off voltage of 33 volts and a clamping voltage of 54.7 volts, which ensures that voltages above safe operating limits are quickly suppressed, protecting downstream components.

This TVS diode is designed to operate within a temperature range of -55°C to 175°C, supporting excellent durability in harsh operating environments. It has a fast response time typically under 1 picosecond, enabling near-instant protection of circuits.

The device has a pin count of two and offers high peak pulse current capability of 276.1 amperes, ensuring reliable conduction of surge currents during transient events. Its glass passivated chip junction enhances long-term stability and performance. High temperature soldering capability, with 265°C guaranteed for 10 seconds, supports assembly reliability.

This product is halogen-free and lead-free with matte tin plating, supporting environmentally friendly manufacturing and RoHS compliance. Single diode configuration for effective transient voltage suppression. Bi-directional device suitable for AC and DC protection.

Peak pulse power dissipation of 15000 W at 10/1000μs waveform. Maximum reverse stand-off voltage of 33 V with minimum breakdown voltage of 36.9 V. Fast response time below 1.0 ps from 0 V to breakdown voltage. Clamping voltage of 54.7 V provides voltage spike limitation.

Temperature range from -55°C to 175°C supports harsh environments. Through-hole P600 package with 2-pin configuration. Halogen-free and lead-free plating supports environmental safety. Glass passivated chip junction enhances device reliability.

This Littelfuse TVS diode is ideal for industrial, automotive, telecommunications, and electronics applications requiring robust surge protection against transient voltage spikes. Its high power rating and fast response time make it suitable for protecting power lines, data lines, and sensitive electronic components in demanding environments.

Explore similar TVS diode products and other semiconductor components at EnvMart for your advanced protection needs.

Explore more products in our TVS Diodes category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Littelfuse 15KPA33CA has a peak pulse power dissipation rating of 15000 watts, making it suitable for high energy transient events.

The clamping voltage for this TVS diode is 54.7 volts, which helps minimize voltage spikes during transient events.

This model features a through-hole mount type with a P600 package, facilitating easy integration onto printed circuit boards.

The Littelfuse 15KPA33CA has a pin count of 2, which simplifies circuit connectivity.

This diode has a fast response time typically less than 1 picosecond from 0 volts to breakdown voltage, providing near-instant protection.

The maximum peak pulse current capability of this model is 276.1 amperes, ensuring reliable conduction during transient events.

The minimum breakdown voltage for the 15KPA33CA is 36.9 volts, which is important for its protective function.

Yes, it is halogen-free and lead-free with matte tin plating, supporting environmentally friendly manufacturing practices and RoHS compliance.

The diameter and length of the Littelfuse 15KPA33CA are both 9.1 mm, which is relevant for PCB design considerations.

This model is ideal for protecting sensitive electronic devices in industrial, automotive, telecommunications, and electronics applications from voltage spikes.
