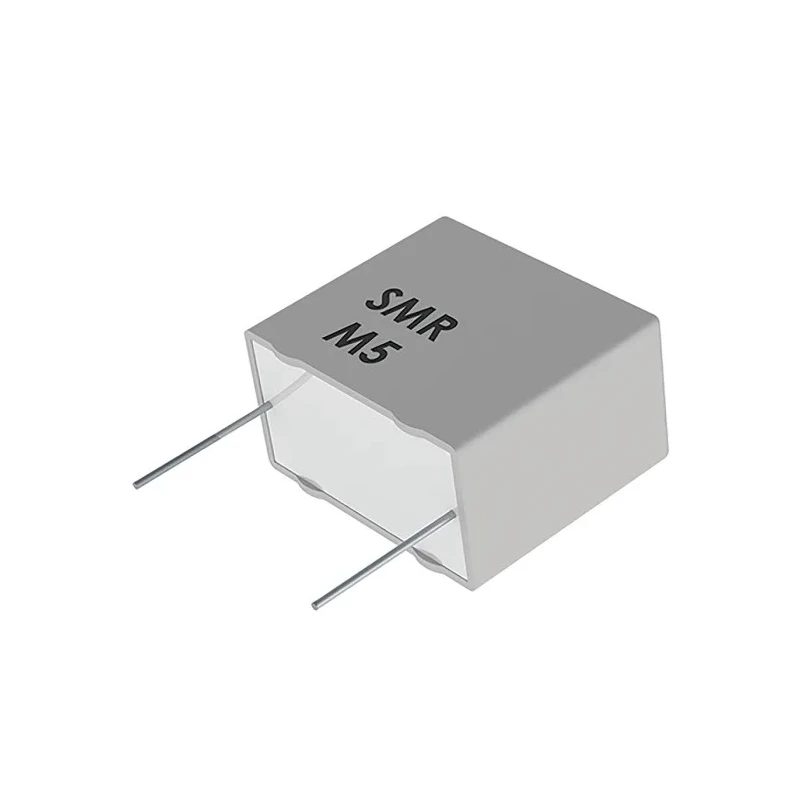

KEMET SMR Film Capacitor, 100 nF, ±5% Tolerance, 63 V DC, 40 V AC, Through Hole Mount SMR5104J63J02L16.5CBULK

Free Delivery in India | Lowest Global Shipping Charges

KEMET SMR Film Capacitor, 100 nF, ±5% Tolerance, 63 V DC, 40 V AC, Through Hole Mount SMR5104J63J02L16.5CBULK

Name: KEMET SMR Film Capacitor, 100 nF, ±5% Tolerance, 63 V DC, 40 V AC, Through Hole Mount SMR5104J63J02L16.5CBULK
Brand: KEMET
SKU: 151012
Price: 20.22 USD
Availability: InStock



Category Film Capacitors Brand KEMET Condition New

Specifications

Country of Origin	Finland
Capacitance Range	0.001 - 22 μF
Brand	KEMET
Height	8mm
Length	7.2mm
Model	SMR5104J63J02L16.5CBULK
Packaging	Bag
Width	3.5mm
Mount Type	Through Hole
Series	SMR
Maximum Operating Temperature	150°C
Tolerance	±5 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Terminal type	Solder
Lead Length	16.5mm
Standards/Approvals	IEC 60068-1, RoHS
Pin Count	2
Rated AC Voltage	40V ac
Rated DC Voltage	63V dc
Lead Pitch	5mm
Lead Diameter	0.5mm
Capacitance tolerance	±10%, ±20%, ±2.5% and ±5%
Lead Spacing	5 - 27.5 mm

Key Features

Metallized polyphenylene sulfide film construction for enhanced stability.
Rated operating temperature range from -55°C to 150°C.
Lead pitch of 5 mm with 16.5 mm lead length for secure mounting.
Features solder-type terminals for reliable connections.
Adheres to IEC 60068-1 standards and RoHS compliance for quality assurance.
Encapsulated in self-extinguishing material ensuring safety.
Capacitance tolerance provides precision within ±5% limits.
Suitable for automotive and general electronic component applications.

Product Description

KEMET SMR5104J63J02L16.5CBULK is a high-quality metallized polyphenylene sulfide film capacitor offering 100 nF capacitance with ±5% tolerance. Designed for through hole mounting, it supports a rated DC voltage of 63 V and AC voltage of 40 V, making it suitable for diverse electronic applications.

The capacitor features vacuum-evaporated aluminium electrodes and radial leads of tinned wire welded electrically to the contact metal layer on the capacitor winding ends. The unit is encapsulated in a self-extinguishing material, enhancing safety and durability in operation.

Operating over a temperature range from -55°C to 150°C, this capacitor complies with IEC 60068-1 standards and RoHS directives, ensuring reliability and environmental compliance. Its 5 mm lead pitch and 16.5 mm lead length facilitate easy PCB integration through soldered terminals.

The SMR series capacitors have voltage ranges between 50 to 400 V DC and 30 to 200 V AC, with capacitance values spanning 0.001 μF to 22 μF. The ±5% capacitance tolerance ensures precision performance, crucial for automotive and industrial electronics.

Metallized polyphenylene sulfide film construction for excellent stability and life span. Vacuum-evaporated aluminium electrodes with solder-type radial lead terminals. Suitable for automotive applications due to robust temperature range and reliability.

Complies with IEC 60068-1 and RoHS standards for safety and environmental impact. Encapsulated in self-extinguishing materials to improve safety during faults. Lead pitch of 5 mm and diameter of 0.5 mm for integration into varied PCB layouts.

This product is ideal for industrial, automotive, and electronic manufacturing environments requiring dependable film capacitors. Bulk packaging in bags supports cost-effective storage and efficient assembly processes.
