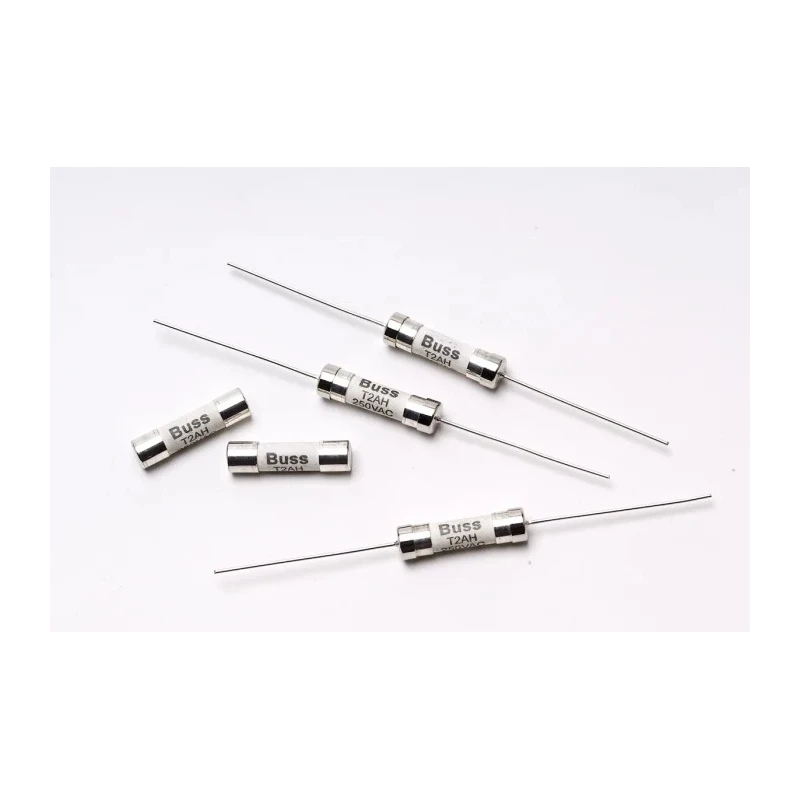

Eaton Ceramic Cartridge Fuse Time Delay 1A 250V AC 5 x 20 mm S505H-V-1-25-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505H-V-1-25-R |
| Overall Length | 20mm |
| Current Rating | 1A |
| Series | S505H |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | CCC, cURus, IEC 60127-2, TUV |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Application Category | Time Delay |
Key Features
- Time-delay fuse characteristic allows short-duration surges without opening.
- Rated at 1 ampere for precise control of low-current electronic assemblies.
- Ceramic body construction ensures thermal stability and durability.
- Operating temperature range from -40°C to +85°C for diverse environments.
- Suitable for use in control, automation, and measurement instrument protection.
- T-speed classification guarantees consistent slow-blow behavior.
- Approved to IEC 60127-2 and standards CCC, cURus, and TUV for international compliance.
Product Description
Eaton S505H-V-1-25-R ceramic cartridge fuse is designed for time-delayed overcurrent protection of electronic and electrical circuits operating at 1 ampere and 250V AC. Its ceramic body provides excellent thermal stability and durability, suitable for use in a wide range of industrial applications including control modules, automation systems, and sensitive measurement instruments.
The fuse's 5 x 20 mm size fits standard cartridge fuse holders with a 5 mm diameter and 20 mm overall length. Its time-delay characteristic permits brief current surges, protecting circuits while maintaining continuity during transient events. Operating temperature ranges from -40°C to +85°C, allowing use in environments from cold storage conditions to elevated ambient temperatures.
The Eaton S505H series fuse meets stringent international standards such as IEC 60127-2, CCC, cURus, and TUV, ensuring recognized safety and performance worldwide. Its T-speed rating ensures slow-blow performance, offering consistent and reliable protection against overcurrent conditions.
Time-delay fuse characteristic allows short-duration surges without opening. Rated 1A for controlled protection of low-current electronic circuits. Ceramic body construction for enhanced durability and thermal stability.
Compact 5 x 20 mm size with 5 mm diameter and 20 mm overall length. Operates reliably between -40°C and +85°C ambient temperatures. Suitable for control, automation, and electronic measurement protection. T-speed classification for slow-blow characteristics.
Tested and approved to IEC 60127-2, CCC, cURus, and TUV standards.
This ceramic Cartridge Fuse is ideal for industrial, laboratory, and commercial settings requiring reliable time-delay overcurrent protection. It is used extensively in power supplies, motor protection, relays, and sensitive instrumentation assemblies.
Explore more Eaton fuses and related circuit protection products at EnvMart for trusted quality and safety in electronics and electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S505H-V-1-25-R fuse has a current rating of 1 ampere.
This model is rated for 250V AC.
The fuse has a diameter of 5 mm and an overall length of 20 mm.
It operates reliably between -40°C and +85°C.
The fuse features a ceramic body construction, ensuring thermal stability and durability.
This fuse has a time-delay characteristic, allowing it to handle short-duration surges without opening.
It is approved to IEC 60127-2, CCC, cURus, and TUV standards.
It is suitable for use in control, automation, and measurement instrument protection.
The fuse size is 5 x 20 mm.
The series designation for this fuse is S505H.
The fuse is manufactured in India.
The fuse has a T-speed classification, which ensures consistent slow-blow behavior.
