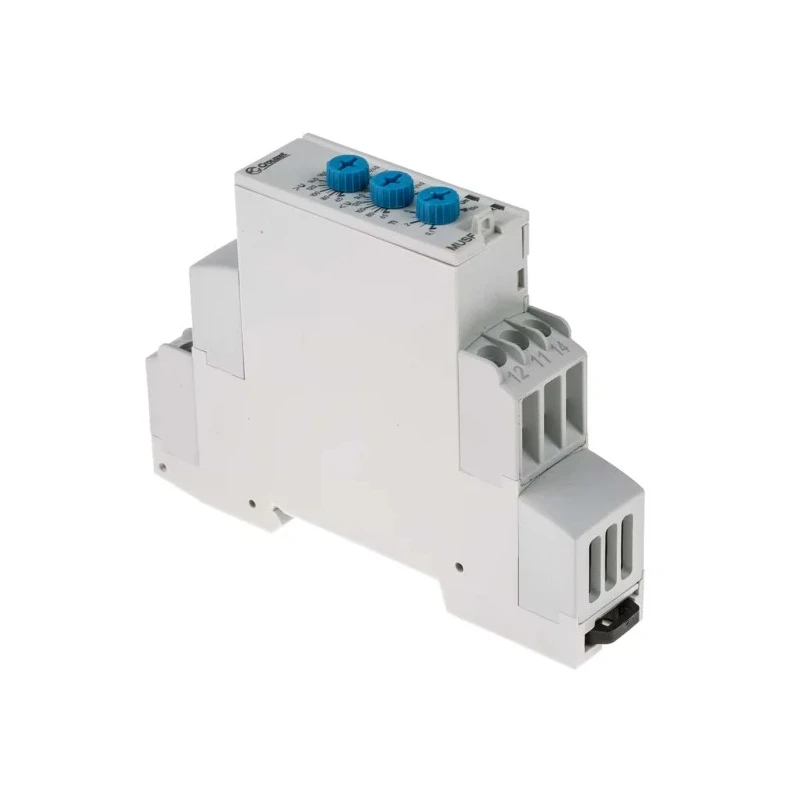

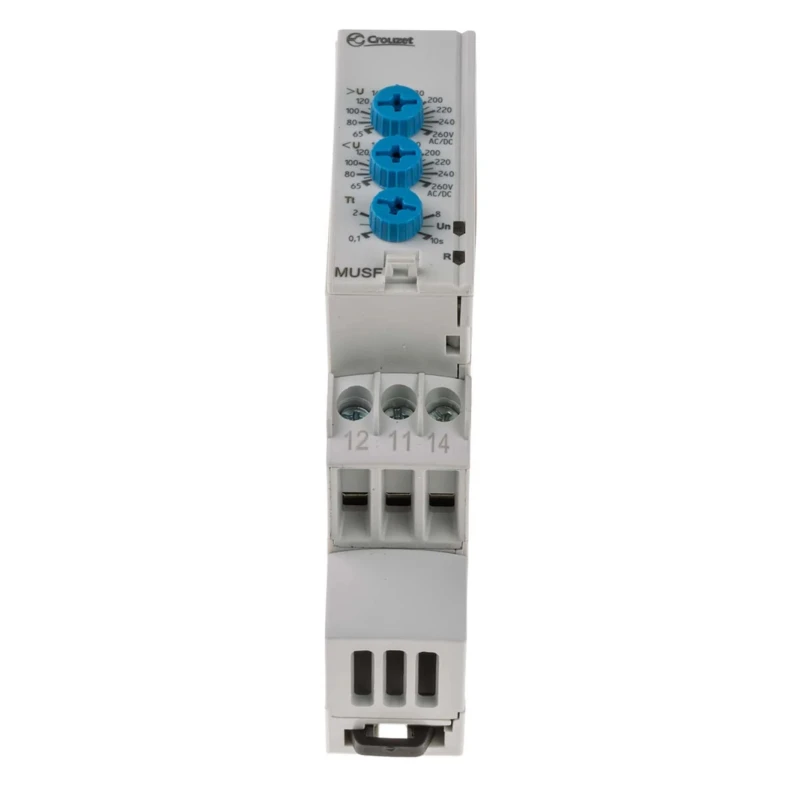

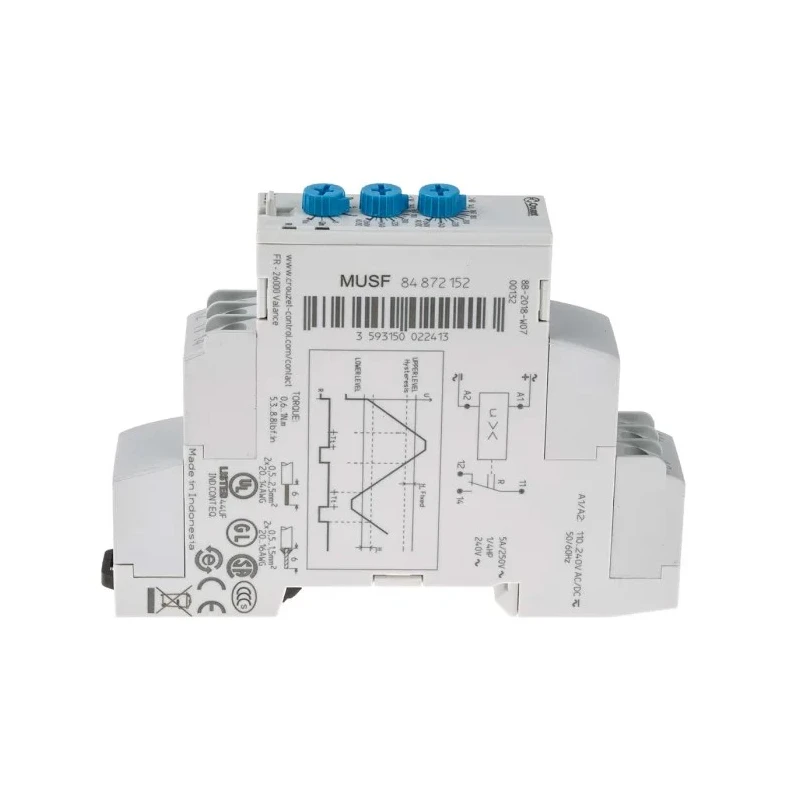

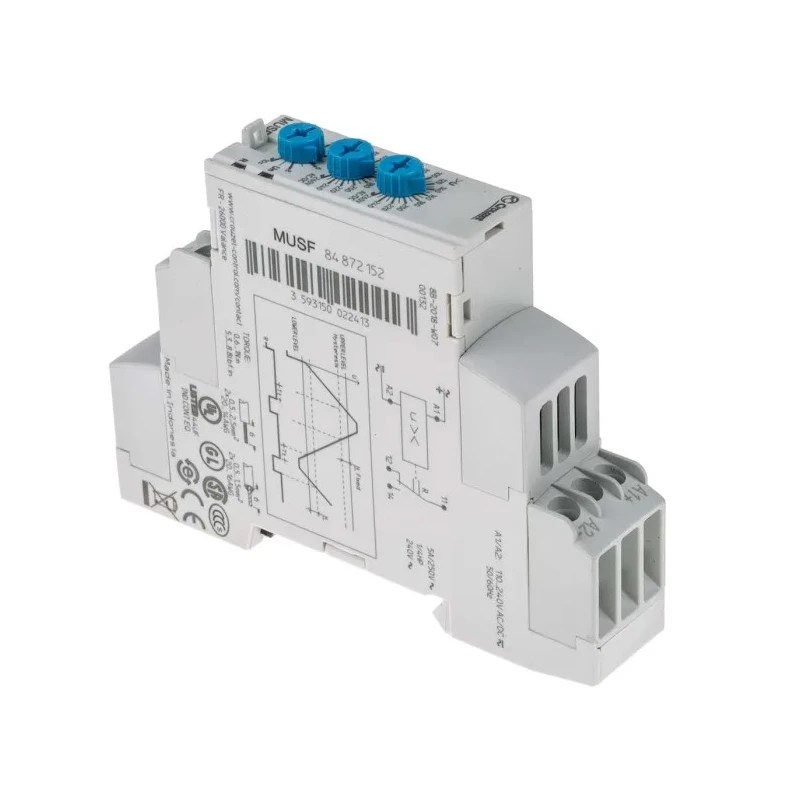

Crouzet Monitoring Relay, 1 Phase, SPDT Contact, DIN Rail Mount, 260V AC/DC Power Control MUSF Series 84872152
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 1W |
| Brand | Crouzet |
| Height | 92.6mm |
| Length | 69mm |
| Model | 84872152 |
| IP Rating | IP30, IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | MUSF |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +50°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Supply DC Voltage | 260 V dc |
| Supply AC Voltage | 260V ac |
| MUS | controls over- or undervoltage with a selectable |
| MUSF | controls over- or undervoltage |
Key Features
- Monitors single phase AC and DC voltages up to 260V.
- Selectable under/overvoltage control with memory and fault latching.
- Adjustable time delays to prevent false triggering.
- True RMS voltage measurement supports 50 Hz, 60 Hz, or DC operation.
- LED status indicators for clear operational feedback.
- Compact form factor with DIN rail mounting.
- Secure screw terminal connections.
- Compliance with WEEE, RoHS, NF EN 60255-6, IEC 60255-6, UL 508, and CSA C22.2 No. 14 standards.
Product Description
Crouzet 84872152 Monitoring Relay is a precision electrical control device designed for voltage monitoring in single-phase AC and DC networks with a power consumption of just 1W. Its SPDT contact configuration and DIN rail mount make it ideal for industrial automation, electrical panels, and signal conditioning applications.
This relay belongs to the MUSF series voltage control relays that provide robust protection by monitoring their own supply voltage. It allows the operator to select operating modes including under-voltage and over-voltage control, with options for fault latching to maintain safety during abnormal supply conditions.
The device incorporates adjustable time delays upon threshold crossing to provide immunity from transient disturbances and prevent spurious relay activation. It measures voltage in true RMS, supporting 50 Hz, 60 Hz alternating current, or DC voltage operation.
Constructed with secure screw terminals, the relay is compact with dimensions 69mm (L) x 92.6mm (H) x 17.5mm (W), facilitating easy installation in DIN rail enclosures. Its protection ratings of IP30 and IP20 ensure adequate resistance against dust and foreign objects in typical industrial environments.
Compliance with international standards such as WEEE, RoHS, NF EN 60255-6, IEC 60255-6, UL 508, and CSA C22.2 No. 14 certifies its reliability and safety for professional electrical systems.
Monitors single-phase AC and DC voltages up to 260 V. Selectable under/overvoltage control with memory and fault latching. Adjustable time delay prevents false relay triggering. True RMS measurement at 50 Hz, 60 Hz, or DC voltage.
LED status display for operational clarity. Compact DIN rail mount design. Screw terminal wiring for secure connections. Standards-compliant for industrial use.
This product is widely used in industrial automation, electrical distribution control, monitoring devices, and facilities management systems to enhance voltage safety and operational reliability.
Explore a wide range of industrial relays and control devices in the Electronics & Electricals category at EnvMart for all your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can monitor single-phase AC and DC voltages up to 260V.
It features a Single Pole Double Throw (SPDT) contact configuration.
The power consumption of this unit is 1W.
The dimensions are 69mm in length, 92.6mm in height, and 17.5mm in width.
It is designed for DIN rail mounting, making installation straightforward in electrical panels.
The maximum operating temperature is 50°C, while the minimum operating temperature is +50°C.
Yes, it includes selectable under-voltage and over-voltage control with memory and fault latching capabilities.
It uses secure screw terminals for wiring connections.
Yes, it complies with several standards including WEEE, RoHS, NF EN 60255-6, IEC 60255-6, UL 508, and CSA C22.2 No. 14.
It supports true RMS voltage measurement for 50 Hz, 60 Hz, or DC operation.
The relay has an IP rating of IP30 and IP20, providing adequate resistance against dust and foreign objects.
It is widely used in industrial automation, electrical distribution control, monitoring devices, and facilities management systems.
