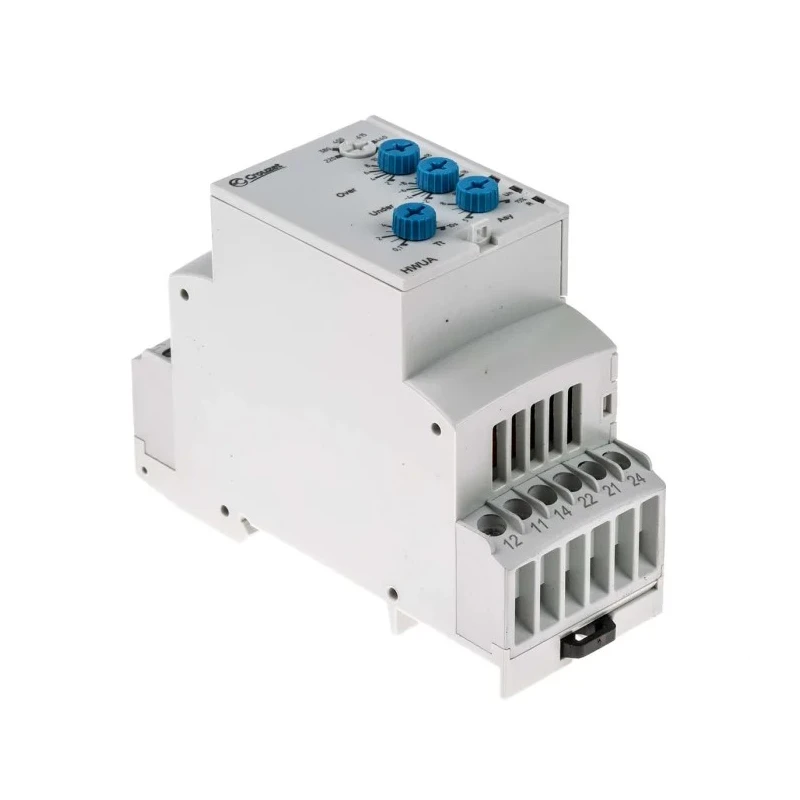

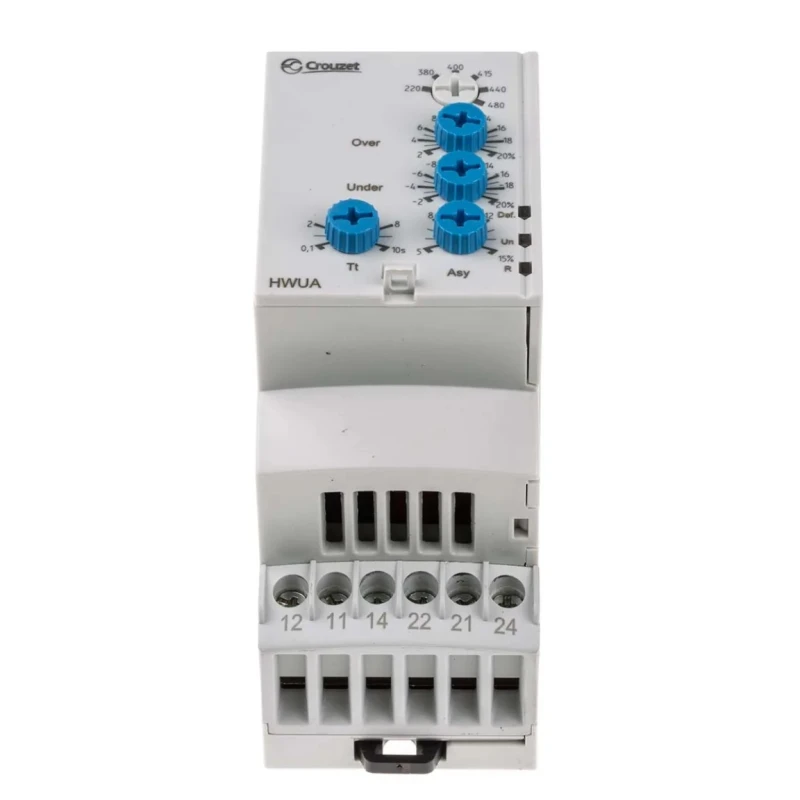

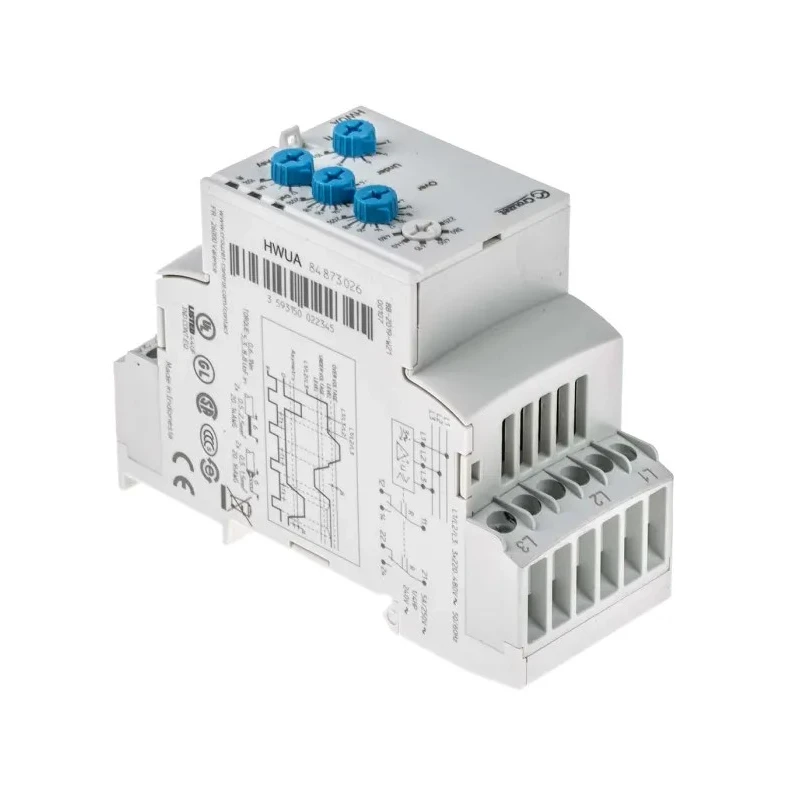

Crouzet Monitoring Relay 3 Phase 194 to 528 V Monitor Range DPDT DIN Rail 220V AC 480V AC 84873026

Crouzet 84873026 is a high-performance 3 phase monitoring relay designed for industrial and commercial electrical applications. It operates within a wide voltage monitoring range of 194 to 528 V, making it suitable for diverse 3 phase power systems. This relay features a DPDT contact configuration to safely manage electrical switching operations.

This device enhances the monitoring of critical parameters such as undervoltage, overvoltage, asymmetry, phase sequence, and phase failure. It allows independent settings for each fault condition and provides clear LED indicators to distinguish the origin of faults for quick diagnostics.

With mounting designed specifically for DIN rail installations and reliable screw terminal connections, the relay ensures straightforward integration into existing control panels. Operating voltage compatibility includes standard industrial voltages of 220 V AC and 480 V AC.

The relay uses True RMS measurement technology and supports multi-function and multi-voltage configurations, ensuring accurate and adaptable monitoring in industrial environments. Its compact dimensions make it fit comfortably in confined panel spaces.

Designed for use in electrical automation, manufacturing facilities, HVAC systems, and water treatment plants, this relay supports robust and efficient three-phase power monitoring to protect equipment and maintain system integrity.

Precisely monitors phase sequence, phase failure, undervoltage, overvoltage, and asymmetry in 3 phase power supply. DPDT contact configuration with 5A contact current rating and switching voltage capacity of 250 V. Features LED fault indication for easy monitoring and troubleshooting.

Mount type is DIN rail with screw terminal type for secure installation. Compliance with several international standards including UL, CSA, RoHS, and CE ensures quality and safety. Compact design with height 92.6 mm, length 69 mm, and width 35 mm for space-saving installation.

The Crouzet 84873026 monitoring relay offers reliable phase control and protection suitable for various industrial, laboratory, and commercial electrical applications. Its advanced functionality ensures flawless operation and safeguarding of three-phase electrical networks.
