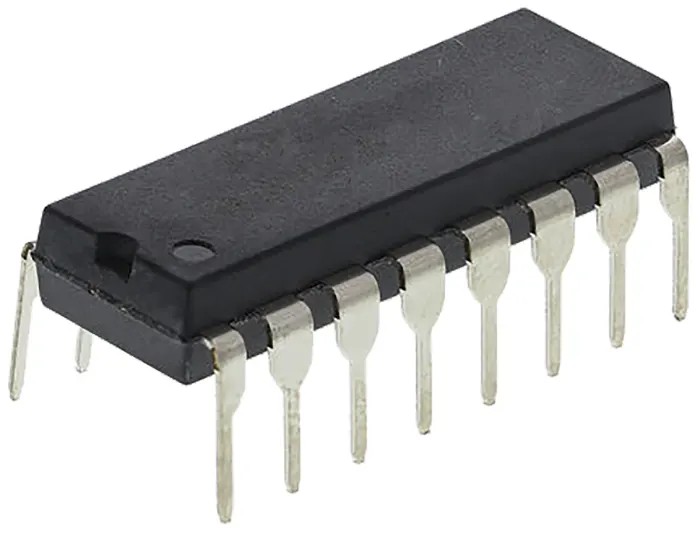

Texas Instruments 8-Stage Through Hole Binary Shift Register HC 16-Pin PDIP SN74HC165N

Texas Instruments SN74HC165N is an 8-stage binary shift register IC housed in a 16-pin PDIP (Plastic Dual In-line Package) designed for through hole mounting. It belongs to the 74HC family of high-speed CMOS logic devices that combine the performance of LSTTL logic with the low power consumption of CMOS technology.

This device supports an operating voltage range from 2 V to 6 V and offers high-speed shifting capabilities with clock frequencies reaching 31 MHz at 4.5 V and up to 36 MHz at 6 V. Its uni-directional counting functionality is suitable for digital signal processing, data storage, and transfer in various electronics and industrial automation applications.

The compact form factor with a length of 19.69 mm and height of 4.57 mm allows easy integration into PCBs where space is limited. The IC operates reliably over a wide temperature range from -40°C to 85°C, making it appropriate for industrial and automotive electronic circuit environments.

The device's input and output are compatible with CMOS logic levels, facilitating seamless communication with other components in microcontroller systems, embedded systems, and digital counters. The SN74HC165N is manufactured in Mexico, ensuring strict quality and manufacturing standards.

Key features include: 8-stage binary shift register functionality, through hole mount in PDIP package, high-speed CMOS technology, and wide operating voltage and temperature ranges.

Operates on 2 to 6 V power supply voltage. Maximum clock frequency up to 36 MHz at 6 V. 16-pin PDIP package suitable for through hole mounting. Uni-directional binary shift register with 8 stages. Operating temperature range from -40°C to 85°C.

Compact size for easy PCB integration. Compatible with CMOS input/output logic.

This Texas Instruments SN74HC165N shift register IC is ideal for use in industrial electronic circuits, digital counting applications, communication systems, embedded systems, and laboratory instrument control circuits where reliable data shifting and storage is required.
