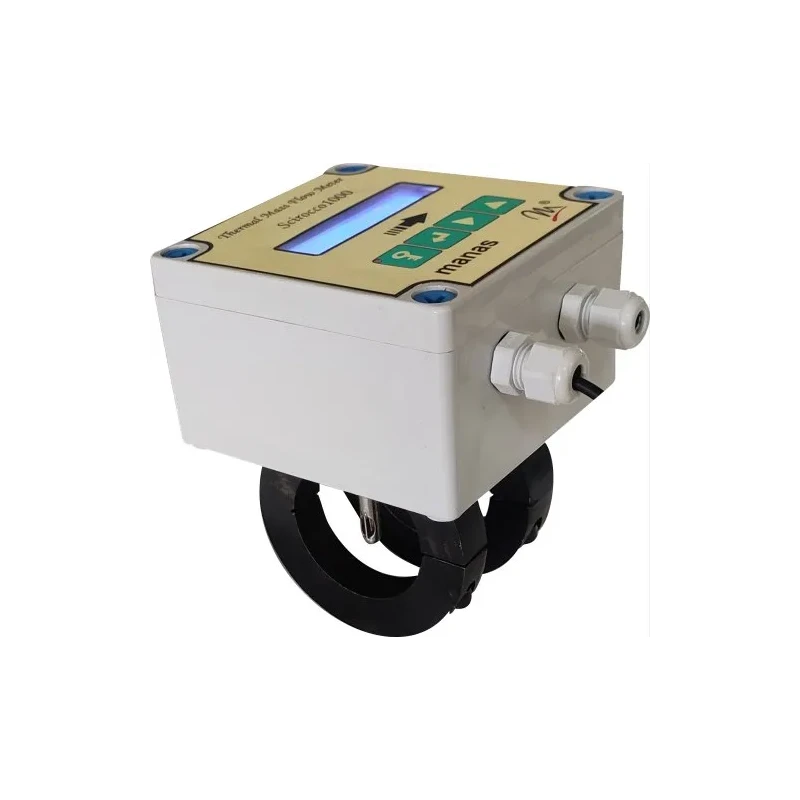

Manas Compressed Air Flow Meter Scirocco 1000-2
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | +- 3 % of Actual Flow Rate between 100 % to 10 % of Flow Rate |
| Display | Digital |
| Output | 4-20 mA/RS 485PulseWireless Data Transfer. Wireless Data transfer |
| Power Supply | 24 Vdc/150mA |
| Model | Scirocco 1000-2 |
| Ingress Protection | IP 65 for Transmitter |
| End Connection | Flange/BSP(M) Threading/ Direct clamp mounting |
| Flow range | 5 m/s to 100 m/s max (at NTP Condition) |
| Application Media | Dry & Clean Air or Dry & Clean Compressed Gases |
| Line Size | DN20 to DN50 (For others consult factory). |
| Operating Ambient Temperature (ºC) | 0 - 50 Degree C |
| Service Fluid | Dry & Clean compressed Air / Gas. |
| Operating Fluid Pressure | 12 Bar Max |
| Temperature Drift at Ambient Temp | 0.008 % / DegreeC maximum of Full Scale in the range 0 to 60 DegreeC |
| Scirocco 1000-2 | Complete with spool with an end connection of flange /BSP(M) Threading. |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Compressed Air Flow Meter Scirocco 1000-2, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.FeaturesDirect measurement of mass flow. No pressure or temperature compensation required20:1 turndown.Wireless data transfer possible. Remote readings available on wireless.Pulse, milliamps or RS485 output for networking
- Highly durable
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow range is from 5 m/s to 100 m/s at NTP conditions.
The accuracy is ± 3% of the actual flow rate between 100% to 10% of the flow rate.
It is designed for dry and clean air or dry and clean compressed gases.
It requires a power supply of 24 Vdc with a current of 150 mA.
The maximum operating fluid pressure is 12 Bar.
It features a digital display for easy reading of measurements.
The transmitter has an ingress protection rating of IP 65.
The operating ambient temperature range is from 0 to 50 degrees Celsius.
It supports flange, BSP(M) threading, and direct clamp mounting for end connections.
Yes, it has capabilities for wireless data transfer and remote readings.
It is compatible with line sizes DN20 to DN50; for other sizes, consultation with the factory is recommended.
The temperature drift is 0.008% per degree Celsius maximum of full scale in the range of 0 to 60 degrees Celsius.
