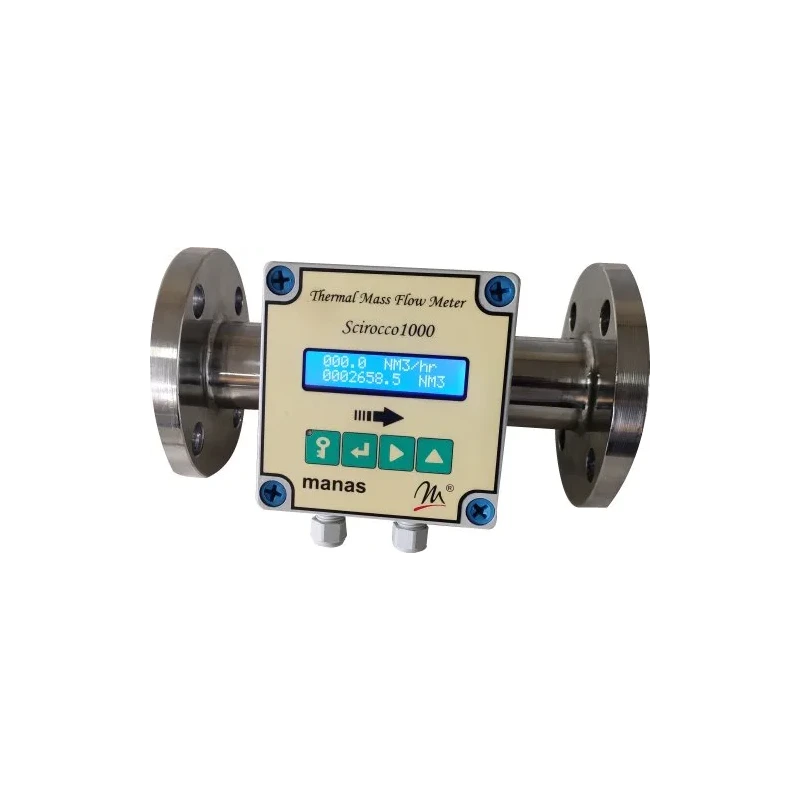

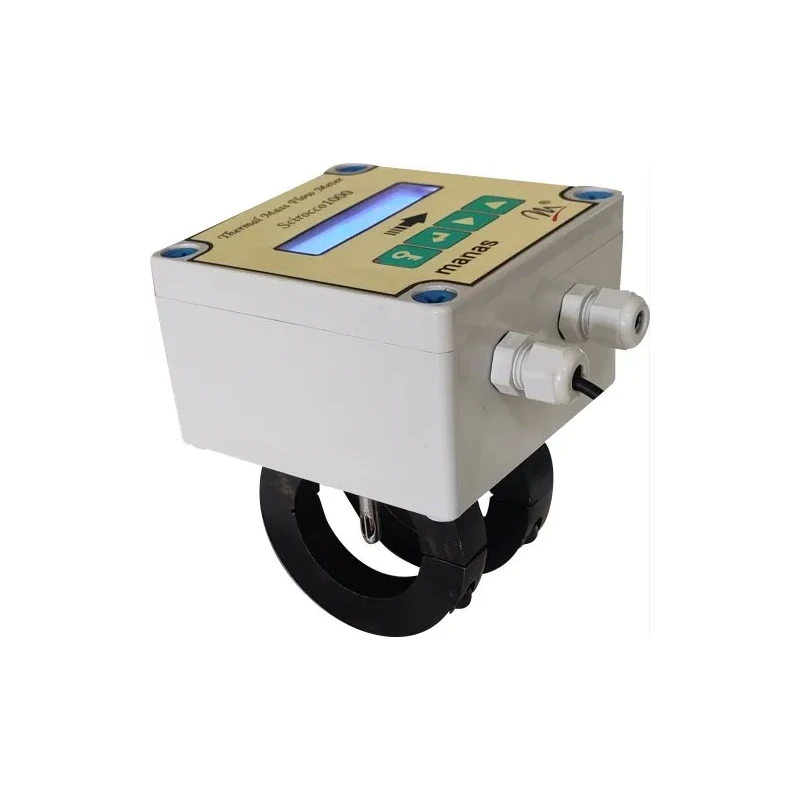

Manas Thermal Mass Flow Meter Scirocco 1000
Specifications
| Accuracy | +- 3 % of Actual Flow Rate between 100 % to 10 % of Flow Rate |
|---|---|
| Display | Blind/LCD 16/2 |
| Output | 4-20 mA/RS 485 Pulse Wireless Data Transfer. Wireless Data transfer (Optional). |
| Power Supply | 24 V DC |
| Material | Stainless Steel |
| Packaging Type | Corrugated |
| Model | Scirocco 1000 |
| Ingress Protection | IP 65 for Transmitter (Sensor Excluded). |
| End Connection | Flange |
| Application Media | Dry & Clean Air or Dry & Clean Compressed Gases |
| Line Size | DN20 |
| Flow Velocity Range | 100 m/s max (at NTP Condition) |
| Operating Ambient Temperature (ºC) | 0 - 50 Degree C |
| Service Fluid | Dry & clean compressed Air / Gas. (Mixture of gases not applicable). |
| Operating Fluid Pressure | 12 Bar Max |
| Temperature Drift at Ambient Temp | 0.008% / Degree C maximum of Full Scale in the range 0 to 60 DegreeC |
| Operating Fluid Temperature | 0 - 100 Degree C |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Thermal Mass Flow Meter, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.FeaturesDirect measurement of mass flow. No pressure or temperature compensation required20:1 turndown.Wireless data transfer possible. Remote readings available on wireless.Pulse, milliamps or RS485 output for networking
- Highly durable
