STMicroelectronics Counter IC 14-Pin Surface Mount Package HCF4093YM013TR

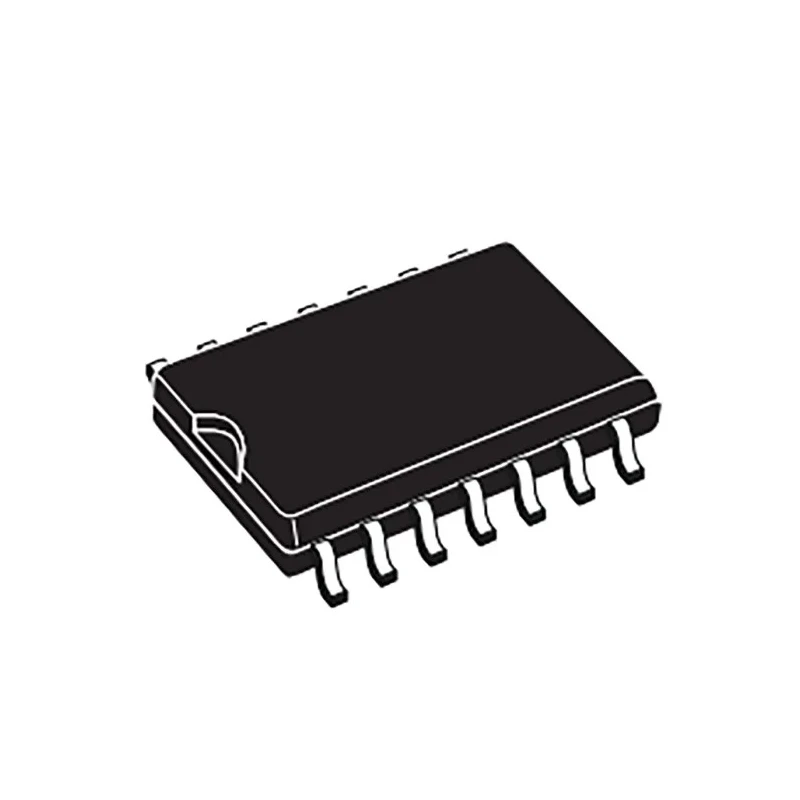

The STMicroelectronics HCF4093YM013TR is a high-performance monolithic integrated circuit combining four independent Schmitt trigger NAND gates with two inputs each. Packaged in a compact SO14 surface mount package, this counter IC is fabricated using metal oxide semiconductor technology, ensuring reliable operation and efficient switching characteristics in diverse electronic systems.

This device's Schmitt trigger inputs provide hysteresis action, improving noise immunity with typical hysteresis voltages of 0.9 V at 5 V and 2.3 V at 10 V supply voltages. It offers symmetrical output characteristics and stable switching without limitations on input rise and fall times, which enhances analog signal processing and digital counting applications.

Ideal for industrial and automotive electronics, the IC supports a wide voltage range from -0.5 V minimum supply to a maximum of 22 V, with operating temperatures up to 125°C. It conforms to AEC-Q100 automotive quality standards, ensuring robustness in harsh operating conditions.

Additional safeguards include electrostatic discharge (ESD) protection: Human Body Model (HBM) rating of 2 kV, Machine Model (MM) rating of 200 V, and Charged Device Model (CDM) rating of 1 kV. This makes the HCF4093YM013TR well suited for use in automated control, signal conditioning, counters, and various digital logic applications in industrial and laboratory environments.

Its small footprint with dimensions 8.75 mm length, 4 mm width, and 1.75 mm height facilitates space-saving PCB design and surface mounting manufacturing processes. The device includes four Schmitt trigger NAND gates with two inputs each providing hysteresis action.

Features high noise immunity with typical hysteresis voltage values of 0.9 V at 5 V and 2.3 V at 10 V supply. Input rise and fall times have no limitations, ensuring stable switching. Quiescent current and input leakage current are low and specified up to 20 V operation.

Operates reliably in a temperature range up to 125°C suitable for automotive and industrial standards. Compliant with AEC-Q100 automotive standards and tested for electrostatic discharge performance. Package dimensions are compact with length 8.75 mm, width 4 mm, and height 1.75 mm.

Manufactured with metal oxide semiconductor technology for stable and consistent switching behavior.

This STMicroelectronics counter IC is ideal for integration into electronic instrumentation, automotive electronics, industrial automation, and signal processing systems. Browse the Electronics Components category on EnvMart for more high-quality semiconductor solutions and related products.

Explore more products in our Counter ICs category.
