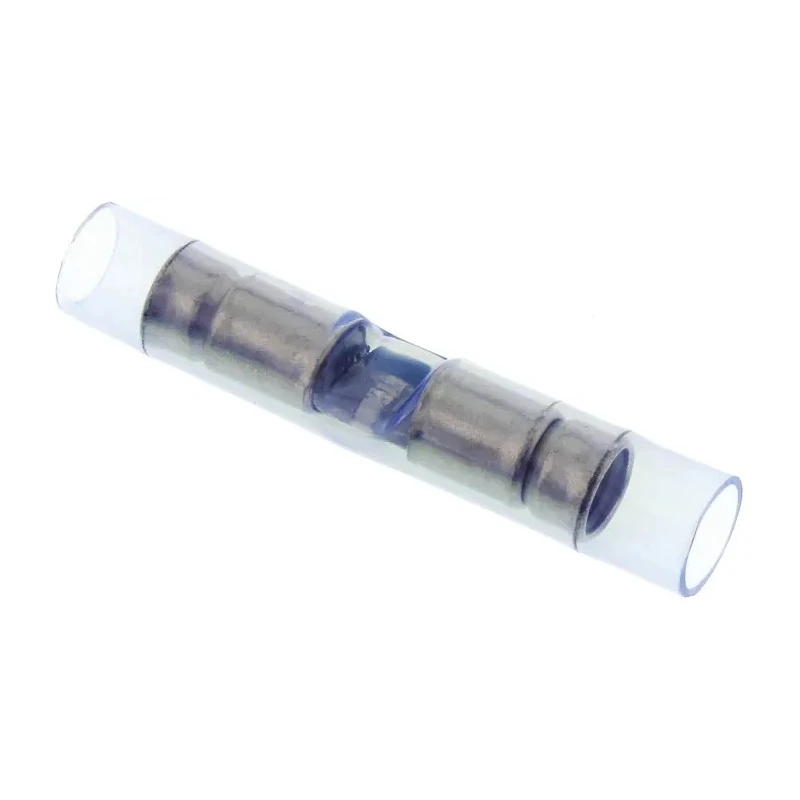

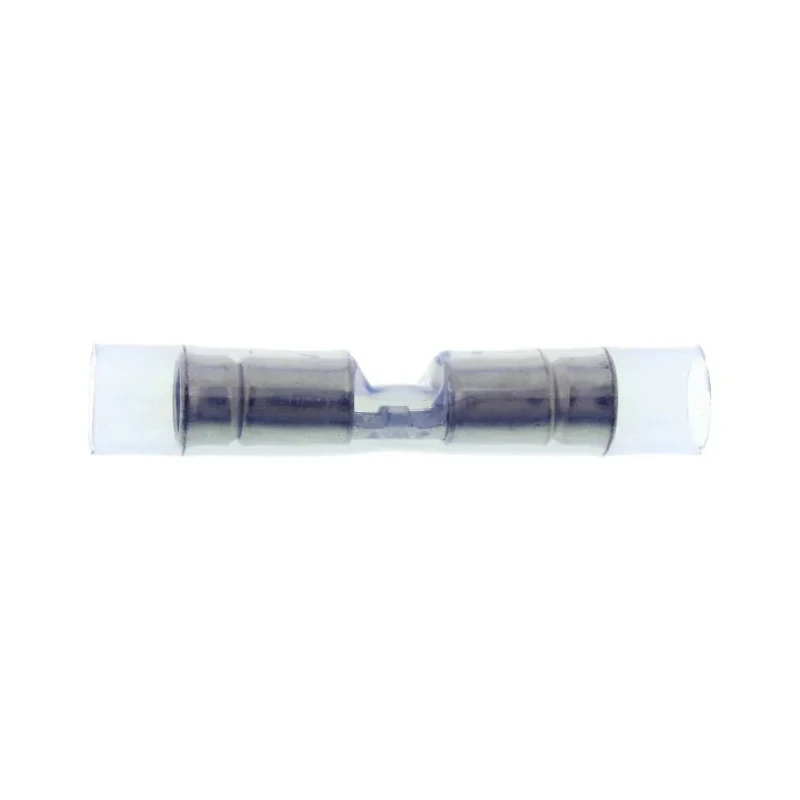

TE Connectivity PIDG Butt Splice Connector Blue Insulated Nylon 16 AWG 320562
Specifications
| Country of Origin | United States |
|---|---|
| Diameter | 3.81mm |
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 320562 |
| Insulation | Insulated |
| Overall Length | 32.13mm |
| Contact Material | Copper |
| Series | PIDG |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Splice Type | Butt |
Key Features
- Constructed with high conductivity copper body for superior electrical performance.
- Features a tin-plated copper contact for corrosion resistance.
- Blue nylon insulation sleeve provides wire size identification and durability.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Designed to enable reliable and uniform crimps with specialized tool dies.
- Overall length of 32.13 mm and diameter of 3.81 mm for secure connections.
- Meets RoHS compliance standards for environmental safety.
- Suitable for use in control instruments, lighting, panel boxes, motors, aerospace and industrial applications.
Product Description
TE Connectivity 320562 PIDG Butt Splice Connector is a high-quality insulated splice connector designed for reliable wire connections in industrial and electronic applications. It features a pre-insulated diamond grip (PIDG) design with a blue nylon sleeve that identifies the 16 AWG wire size, ensuring correct matching for wiring tasks.
The copper body delivers excellent electrical conductivity, while the tin-plated contacts resist corrosion to maintain long-lasting connections. Serrations inside the wire barrel increase tensile strength and maximize electrical contact after crimping, enhancing reliability.
The nylon insulation sleeve supports wire insulation, allowing flexibility without damage or fraying. The connector has precise overall dimensions of 32.13 mm length and 3.81 mm diameter, making it suitable for various industrial wiring tasks.
This PIDG butt splice connector complies with RoHS standards, confirming its adherence to environmental and safety regulations. It is manufactured in the United States, reflecting TE Connectivity’s commitment to quality and performance.
Ideal for applications including instrumentation, control systems, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and household appliances. Its design ensures uniform and secure crimps, reducing failure risks and maintenance requirements in demanding environments.
Constructed with high conductivity copper body for superior electrical performance. Features a tin-plated copper contact for corrosion resistance. Blue nylon insulation sleeve provides wire size identification and durability.
Serrated wire barrel ensures maximum contact and tensile strength after crimping. Designed to enable reliable and uniform crimps with specialized tool dies. Overall length of 32.13 mm and diameter of 3.81 mm for secure connections.
Meets RoHS compliance standards for environmental safety. Suitable for use in control instruments, lighting, panel boxes, motors, aerospace and industrial applications. Manufactured in the United States, ensuring high quality standards.
Explore a wide range of TE Connectivity products and Splice Connectors in the Electronics & Electricals category at EnvMart for all your industrial connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed for use with wire sizes ranging from 22 AWG to 16 AWG.
It features a high conductivity copper body with a tin-plated copper contact for corrosion resistance and a nylon insulation sleeve.
The overall length of the connector is 32.13 mm and its diameter is 3.81 mm.
The serrated wire barrel ensures maximum contact and tensile strength after crimping, enhancing the reliability of the connection.
Yes, it is suitable for various industrial applications, including control instruments, lighting, panel boxes, motors, and aerospace.
This butt splice connector meets RoHS compliance standards for environmental safety.
The nylon insulation sleeve provides wire size identification and supports wire insulation, allowing flexibility without damage or fraying.
The tin plating on the copper contact provides corrosion resistance, which helps maintain long-lasting connections.
It is designed to enable reliable and uniform crimps with specialized tool dies, ensuring optimal performance.
This connector is manufactured in the United States, reflecting high quality standards.
The splice connector is colored blue, which also indicates its compatibility with 16 AWG wire size.
It can be used in applications such as instrumentation, control systems, power supplies, transportation, and household appliances.
