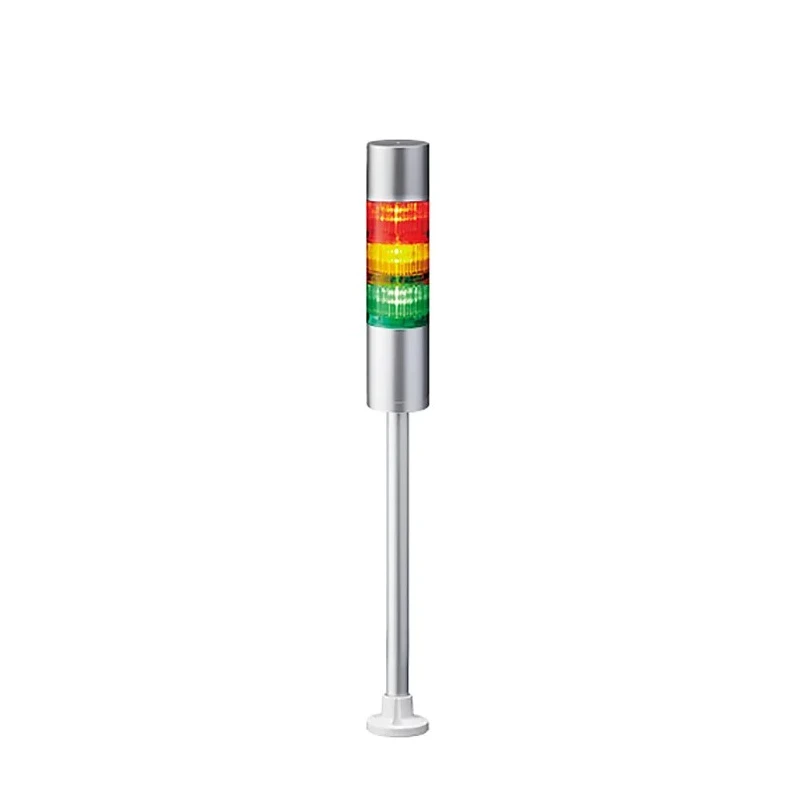

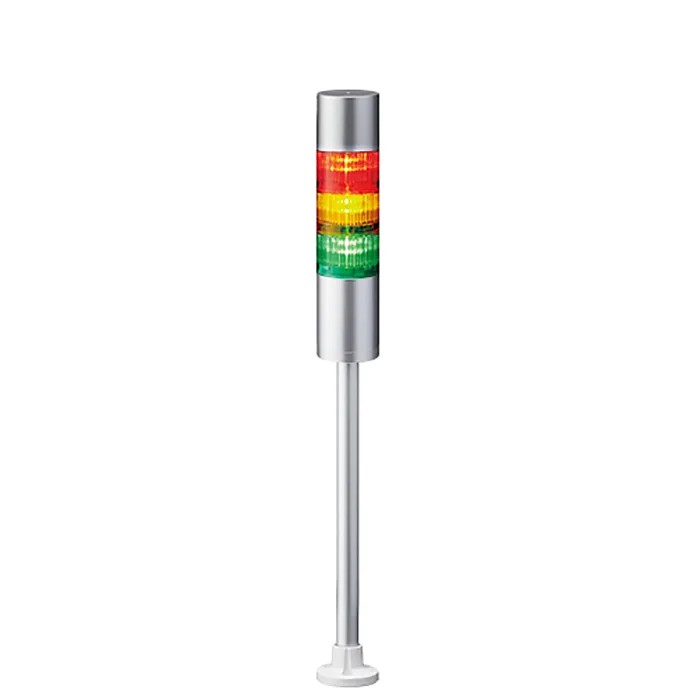

Patlite LR6 Series Signal Tower Buzzer 3 Lights 24V DC Pole Mount LR6-302PJBU-RYG

Patlite LR6-302PJBU-RYG is a next-generation signal tower buzzer featuring three LED lights with both flashing and steady light effects. Powered by 24V DC, this pole mount device is designed for reliable industrial signaling and status indication.

The unit includes a buzzer sounder capable of producing an 85 dB minimum sound level with omnidirectional audio output. The robust modular construction uses a Twist and Lock system, allowing easy customization and reconfiguration of light and sound modules to meet varied application demands.

Its IP65-rated housing protects internal components from water and dust ingress, making it suitable for challenging factory, manufacturing, or automation environments. The silver-colored signal tower has a compact size with a height of 543.5 mm and a base diameter of 60 mm, enabling convenient mounting via a pole mount.

Connection is established with a terminal block and includes a 3-meter connection cable for flexible installation. The product operates reliably within temperature extremes of -20°C to 50°C.

Patlite LR6-302PJBU-RYG is certified to international standards including CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4, EN 61000-6-2), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4, KN 61000-6-2), RoHS Directive (EN 50581), UL 508, and is a UL Recognised Component (File No. E215660), ensuring compliance and safety in industrial electrical signaling.

Features a buzzer type sounder with a minimum sound level of 85 dB. Equipped with 3 LED light elements that can flash or remain steady. Constructed with a modular Twist and Lock system for easy configuration. Rated IP65 for water and dust resistance, suitable for harsh environments.

Operates at 24V DC with a current consumption of 250 mA. Compact dimensions with 543.5 mm height and 60 mm base diameter. Terminal block connection ensures secure wiring. Operating temperature range from -20°C to 50°C for versatile industrial use.

Complies with multiple standards including CSA, EMC Directive, FCC, KC, RoHS, and UL 508.

This signal tower buzzer is ideal for industrial, automation, manufacturing, and electrical safety applications where clear visual and audible signaling is required. Its rugged design and certification support deployment in demanding environments.

Explore more Signal Towers and automation signaling devices at EnvMart for a comprehensive industrial electrical solutions selection.
