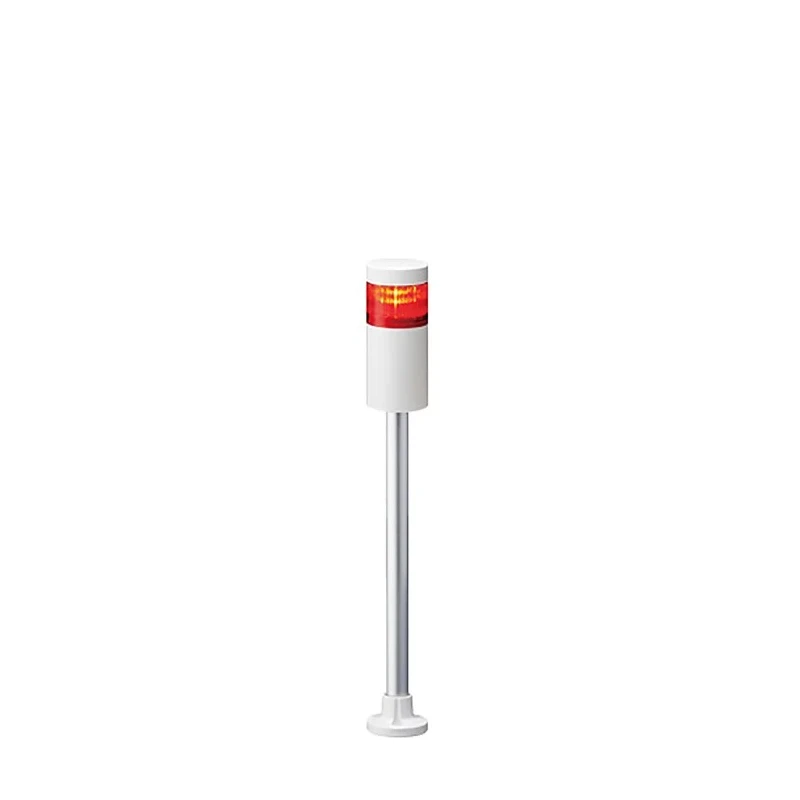

Patlite LR6 Series Signal Tower Buzzer 1 Light LED 24V DC Pole Mount LR6-102PJNW-R
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Patlite |
| Height | 429mm |
| Model | LR6-102PJNW-R |
| IP Rating | IP65 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 250mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Cable |
| Lens Colour | Yellow, Amber, Blue, Green, Clear, Magenta, Red, White |
| Standards/Approvals | KC (KN 61000-6-4,KN 61000-6-2), EMC (EN 61000-6-4,EN 61000-6-2), UL Recognized Component (File No.E215660), RoHS (EN 50581), CSA-C22.2 No. 14, FCC Part 15 Subpart B Class A, UL 508 |
| Maximum Supply Voltage | 24V |
| Housing Colour | Off-White |
| Light Effect | Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 1 |
| Connection Cable Length | 1m |
Key Features
- The signal tower features a modular twist and lock system for easy customization.
- It includes LED lights in multiple lens colours such as yellow, amber, blue, green, clear, magenta, red, and white.
- The buzzer emits a steady sound with a minimum sound level of 85dB and maximum of 90dB.
- The device has an IP65 rating, ensuring protection against dust and water ingress.
- Suitable for harsh environments with operating temperatures from -20°C to 50°C.
- Mount type is pole mount with a base diameter of 60mm and total height of 429mm.
- It consumes 250mA current and connects via a 1 meter cable terminal type.
- Complies with KC, EMC, UL Recognized Component, RoHS, CSA, FCC, and UL standards.
Product Description
Patlite LR6-102PJNW-R is a high-performance signal tower buzzer designed for automation and control signalling in industrial settings. Operating at 24V DC, this device integrates a bright, energy-efficient LED light and a buzzer sound module to provide clear visual and audible alerts in manufacturing, construction, water treatment, and other industrial environments.
The signal tower features a modular "twist and lock" system enabling field configuration and easy maintenance. It incorporates multiple lens colours such as yellow, amber, blue, green, clear, magenta, red, and white, enhancing visibility and signalling versatility.
The buzzer produces a steady sound effect with a minimum sound level of 85dB and maximum 90dB, designed to be omni-directional and loud for effective acoustic signalling. The enclosure is IP65 rated, ensuring complete protection against dust ingress and water jets, making it suitable for harsh environments.
Constructed with a robust off-white housing, it has a pole mount design with a base diameter of 60mm and a height of 429mm. The device operates over a wide temperature range from -20°C to 50°C and consumes 250mA current. Connection is facilitated via a 1-meter cable, ensuring easy installation.
The product meets multiple international standards and certifications including KC (KN 61000-6-4, KN 61000-6-2), EMC (EN 61000-6-4, EN 61000-6-2), UL Recognized Component (File No. E215660), RoHS (EN 50581), CSA-C22.2 No. 14, FCC Part 15 Subpart B Class A, and UL 508. This ensures reliable electromagnetic compatibility and safety compliance for various industrial applications.
Manufactured in Japan, the Patlite LR6 Series signal tower buzzer is ideal for industries requiring dependable signalling solutions. This product effectively supports safety, process control, and status indication tasks in automation environments.
The signal tower features a modular twist and lock system for easy customization. It includes LED lights in multiple lens colours such as yellow, amber, blue, green, clear, magenta, red, and white. The buzzer emits a steady sound with a minimum sound level of 85dB and maximum of 90dB.
The device has an IP65 rating, ensuring protection against dust and water ingress. Suitable for harsh environments with operating temperatures from -20°C to 50°C. Mount type is pole mount with a base diameter of 60mm and total height of 429mm.
It consumes 250mA current and connects via a 1 meter cable terminal type. Complies with KC, EMC, UL Recognized Component, RoHS, CSA, FCC, and UL standards. For advanced industrial signalling needs, explore the full range of Signal Towers and components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The buzzer emits a maximum sound level of 90dB.
It operates within a temperature range of -20°C to 50°C.
This model features a pole mount design with a base diameter of 60mm.
The device has an IP65 rating, providing protection against dust and water ingress.
It features a modular twist and lock system that enables easy customization and field configuration.
The signal tower includes LED lights in multiple lens colours: yellow, amber, blue, green, clear, magenta, red, and white.
It consumes 250mA of current during operation.
The connection cable length is 1 meter.
It complies with KC, EMC, UL Recognized Component, RoHS, CSA, FCC, and UL standards.
The buzzer emits a steady sound effect, designed to be omni-directional for effective signalling.
The total height of this model is 429mm.
The maximum supply voltage is 24V DC.
