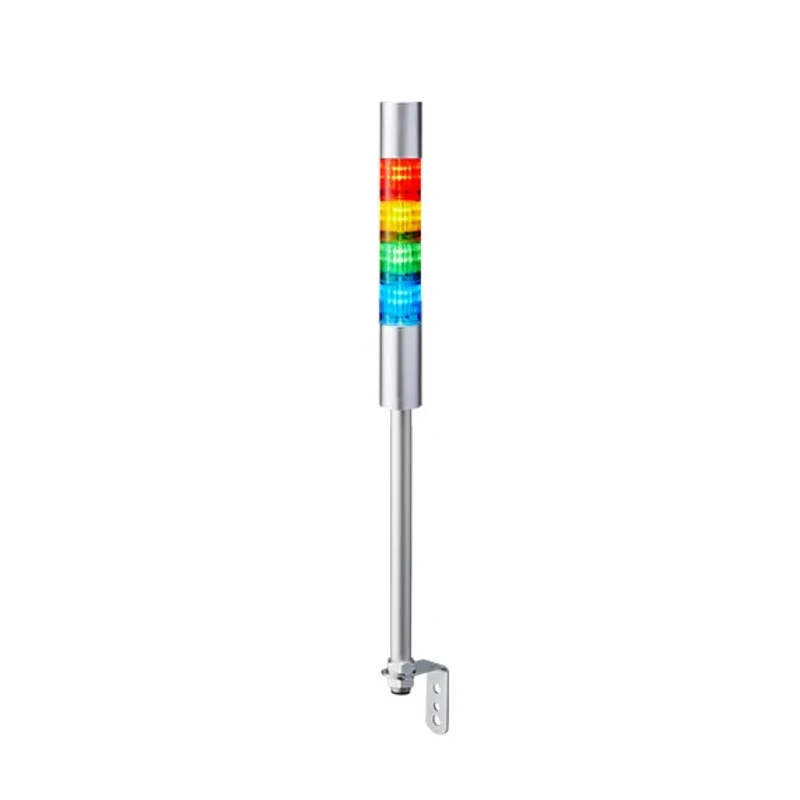

Patlite Signal Tower Buzzer 24V DC, 4 Light Elements Amber White Blue Clear Red Green Pole Mount LR4-402LJBU-RYGB
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 578.5mm |
| Model | LR4-402LJBU-RYGB |
| IP Rating | IP54 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR4 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 0.045, 0.3, 250A |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 40mm |
| Terminal type | Terminal Block |
| Lens Colour | Amber, White, Blue, Clear, Red, Green |
| Standards/Approvals | UL 508, FCC Part 15 Subpart B Class A, RoHS (EN 50581), UL Recognized Component (File No.E215660), CSA-C22.2 No. 14, KC (KN 61000-6-4,KN 61000-6-2), EMC (EN 61000-6-4,EN 61000-6-2) |
| Maximum Supply Voltage | 24V |
| Housing Colour | Silver |
| Light Effect | Flashing, Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Sound Level at 1m | 90dB |
| Maximum Sound Level | 85 |
| Number of Light Elements | 4 |
| Connection Cable Length | 3m |
| Multifunction | Yes, Yes |
Key Features
- Operates on 24V DC supply voltage for reliable performance.
- Includes amber, white, blue, clear, red, and green colored LED lenses.
- Equipped with flashing and steady light effects and a buzzer sounder.
- Designed for pole mount installation with a robust silver housing.
- Sound level reaches up to 90dB at 1 meter for clear audible warnings.
- Operating temperature range from -20°C to 50°C suitable for harsh environments.
- IP54 rated for protection against dust and water splashes.
- Connection via terminal block with a 3m cable length for flexible wiring.
Product Description
Patlite LR4-402LJBU-RYGB signal tower buzzer is a high-performance 24V DC modular signal tower designed for industrial automation and safety signaling applications. It features four LED light elements in distinct colors including amber, white, blue, clear, red, and green, providing versatile visual indication across multiple statuses or warnings.
The device integrates a buzzer sounder producing up to 90dB sound at a 1-meter distance, ensuring audible alerts accompany visual signals in noisy factories or manufacturing plants. The modular twist and lock design facilitates easy customization and configuration of LED and sound modules as per specific operational needs.
Mounting on a pole with a linear bracket and terminal block connection with a 3-meter cable offers ease of installation and wiring flexibility. Constructed with a silver housing and rated IP54, the tower withstands dust ingress and water splashes, making it suitable for harsh or industrial environments.
Operating temperature ranges from -20°C to 50°C, supporting reliable operation in various climates. The compact design features a height of 578.5mm and a base diameter of 40mm. Its current consumption varies according to LED color and buzzer operation, enabling efficient energy use.
Patlite signal towers meet stringent international certifications including UL 508, FCC Part 15 Subpart B Class A, RoHS EN 50581, CSA-C22.2 No. 14, KC KN61000-6-4/6-2, and EMC EN61000-6-4/6-2 standards, assuring compliance and safety.
Operates on 24V DC supply voltage for industrial applications. Features six multi-colored LED lenses for versatile signaling. Includes buzzer for loud audible warnings reaching 90dB at 1m. Modular twist and lock design for easy reconfiguration.
Robust silver housing with IP54 protection rating. Suitable for operation between -20°C and 50°C temperature range. Pole mount design with 3-meter connection cable for installation flexibility. Complies with multiple international safety and EMC standards.
This signal tower buzzer is ideal for industrial, manufacturing, automation, HVAC, and commercial use where clear visual and audible alerts are critical for safety and process control. Explore Patlite and Signal Tower categories on EnvMart for related control and safety automation products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 50°C.
It operates on a 24V DC supply voltage.
The sound level reaches up to 90dB at a distance of 1 meter.
This model features LED lenses in amber, white, blue, clear, red, and green.
The height of the tower is 578.5mm and the base diameter is 40mm.
It has an IP54 rating, providing protection against dust and water splashes.
The connection is made via a terminal block with a 3-meter cable length for flexible wiring.
It supports both flashing and steady light effects.
This unit is designed for pole mount installation.
It complies with multiple standards including UL 508, FCC Part 15 Subpart B Class A, and RoHS (EN 50581).
The minimum operating temperature is -20°C.
This model is equipped with four light elements.
