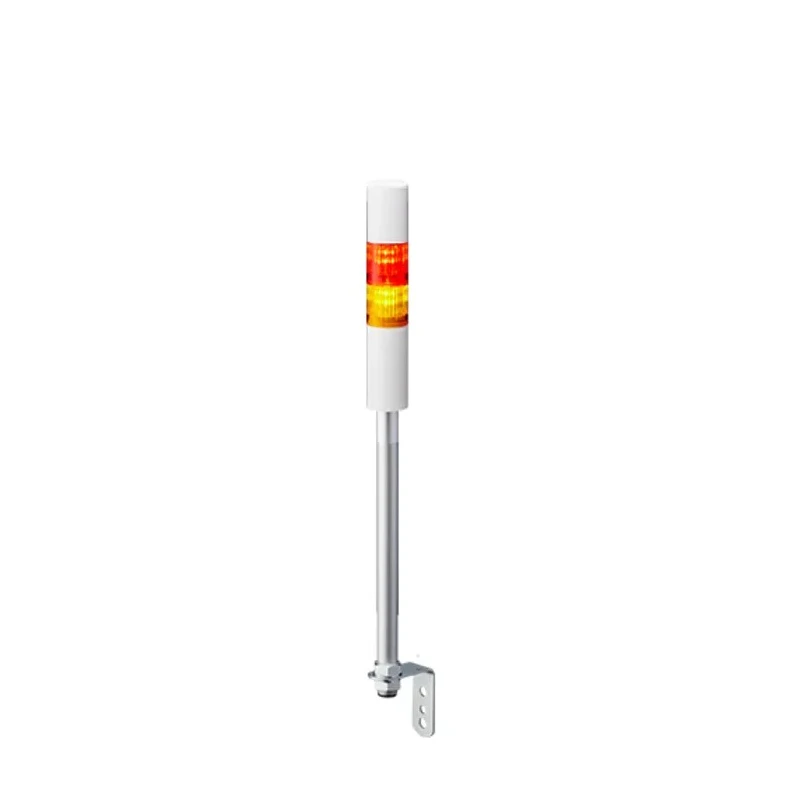

Patlite Signal Tower Buzzer 2 Lights Green, Clear, Blue, Amber, Red, White LED 24V Pole Mount LR4-202LJBW-RY
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Patlite |
| Height | 498.5mm |
| Model | LR4-202LJBW-RY |
| IP Rating | IP54 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR4 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 0.045, 0.3, 250A |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 40mm |
| Terminal type | Cable |
| Lens Colour | Green, Clear, Blue, Amber, Red, White |
| Standards/Approvals | CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4,EN 61000-6-2), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4,KN 61000-6-2), RoHS Directive (EN 50581), UL 508, UL Recognised Component (File No.E215660) |
| Maximum Supply Voltage | 24V |
| Housing Colour | Off-White |
| Light Effect | Flashing, Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Sound Level at 1m | 90dB |
| Number of Light Elements | 2 |
| Connection Cable Length | 1m |
| Four mounting options | Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only) |
Key Features
- Features 2 light elements with LED bulbs in green, clear, blue, amber, red, and white colors.
- Includes a buzzer sounder with flashing and steady light effects.
- Designed for operation in a temperature range of -20°C to 50°C.
- IP54 rated enclosure ensures protection against dust and water ingress.
- Comes with a 1m cable connection and supports DC current type.
- Sound level reaches 90dB at 1 meter for audible alerts.
- Complies with various standards and approvals including CSA-C22.2 No. 14 and EMC directives.
- Multifunctional modular design allows easy configuration with the twist-and-lock system.
Product Description
Patlite LR4-202LJBW-RY is a high-performance signal tower buzzer featuring 2 LED light elements with colors green, clear, blue, amber, red, and white. Operating at 24V DC, this device is designed for pole mounting with a compact 40mm base diameter and stands 498.5mm tall. Its robust construction and IP54 rating provide reliable performance in harsh industrial environments, protecting against dust and water ingress.
The buzzer provides an audible sound level of 90dB at a distance of 1 meter, making it effective for alerting personnel in noisy settings. It supports flashing and steady light effects to enhance visual signalling capabilities. This modular system offers a twist-and-lock mechanism, allowing users to easily customize and reconfigure LED and sound modules onsite.
Operating within a wide temperature range from -20°C to 50°C, the product addresses diverse environmental conditions encountered in automation, manufacturing, water treatment, and other industrial sectors. It complies with multiple international standards and approvals such as CSA-C22.2 No. 14, EMC Directives, FCC, KC, RoHS Directive, and UL 508, ensuring safety and regulatory compliance.
The inclusive mounting options with direct and pole mounting configurations offer versatile installation choices. The supplied 1 meter cable and cable terminal type allow for straightforward electrical connectivity under DC current supply. Its multifunctional design makes it an ideal choice for visual and audible signalling requirements across laboratories, manufacturing plants, HVAC systems, and commercial facilities.
Features 2 LED light elements in 6 colors including green, clear, blue, amber, red, and white. Audible buzzer delivers up to 90dB sound level at 1 meter distance. IP54 rated housing for dust and water protection in challenging environments.
Modular twist-and-lock construction for easy customization and field configuration. Wide operating temperature range from -20°C to 50°C for versatile deployment. Complies with multiple standards including CSA, EMC, FCC, KC, RoHS, and UL.
Pole mount with 40mm base diameter and 498.5mm height ensures secure installation. 1 meter cable length with cable terminal connection supports DC power supply. Multi-functional Signal Tower suitable for alerting in industrial, automation, and safety applications.
Explore more industrial signalling products and Patlite brand solutions on EnvMart for advanced automation and safety communication.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 50°C.
The sound level of the buzzer reaches 90dB at a distance of 1 meter.
This signal tower supports direct mounting and pole mounting options, including configurations with L-bracket, circular bracket, and folding bracket.
The signal tower stands 498.5mm tall and has a base diameter of 40mm.
The LED light elements are available in six colors: green, clear, blue, amber, red, and white.
This model has an IP54 rating, providing protection against dust and water ingress.
It operates on a DC current type with a maximum supply voltage of 24V.
The connection cable length included with this unit is 1 meter.
The buzzer can produce both flashing and steady light effects.
It complies with multiple standards including CSA-C22.2 No. 14, EMC Directives, FCC, KC, RoHS, and UL 508.
The minimum operating temperature for this signal tower is -20°C.
This model features two light elements.
