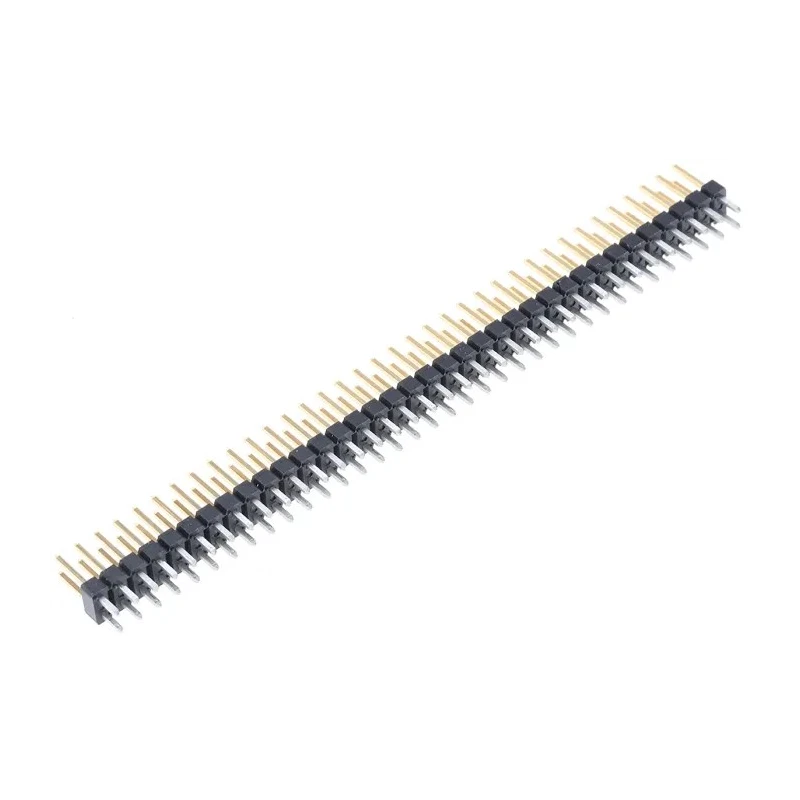

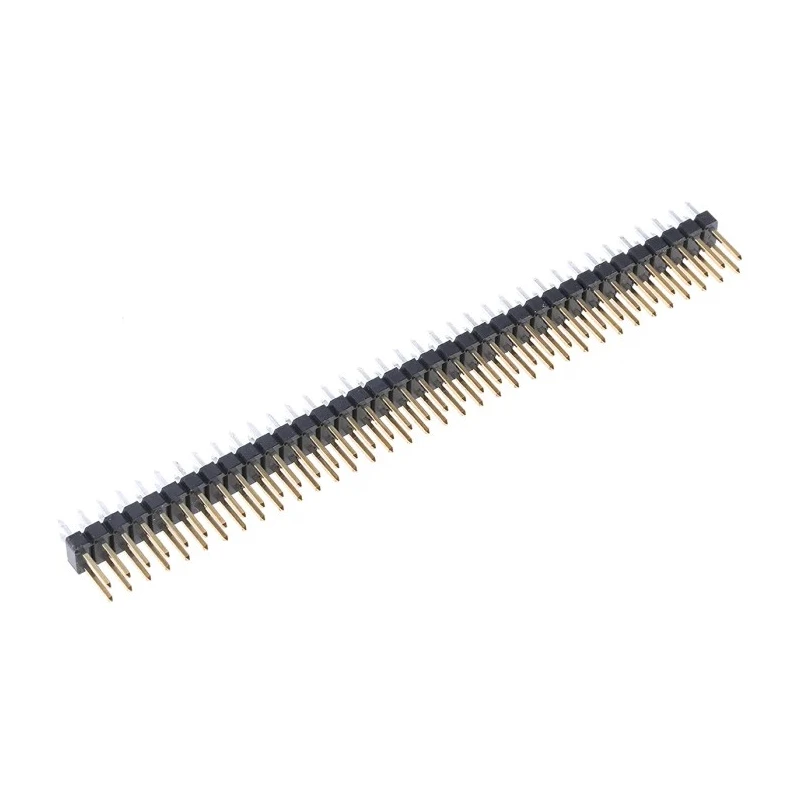

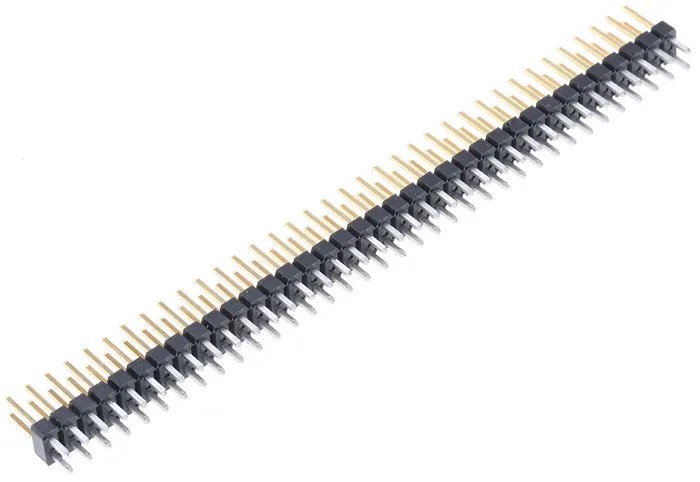

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 72 Contacts, 2.54 mm 77313-118-72LF

Amphenol Communications Solutions 77313-118-72LF Bergstik Series PCB Pin Header features 72 male contacts arranged in 2 rows with a 2.54 mm pitch. This unshrouded, straight-through-hole pin header is designed for board-to-board and wire-to-board connector applications, providing a versatile, reliable connection solution. Its thermoplastic housing offers high temperature reflow solder compatibility with UL 94 V-0 flammability rating and includes stand offs to allow solder contamination removal.

The contacts consist of phosphor bronze with gold plating, offering cost-effective duplex plating for improved conductivity and durability. Rated for a current of 3 A and voltage withstand up to 1.5 kV, this pin header ensures reliable performance in demanding electrical environments. The operating temperature range from -65°C to 130°C makes it suitable for diverse industrial and electronic applications.

With tail pin length of 3.05 mm and mating pin length of 5.84 mm, these headers provide robust mechanical and electrical connections. They are compliant with important environmental and safety standards such as CHINA RoHS, EU RoHS, and REACH/SvHC, supporting environmentally responsible design and manufacturing.

The versatile design allows these headers to be cut to length to fit specific application requirements, making them an economical solution for manufacturing and R&D uses. Compatible mating connectors include the Dubox series receptacles, Quickie IDC receptacles, and PV series crimp housings, enhancing system flexibility.

Features straight orientation and unshrouded design for easy access. Constructed with thermoplastic housing rated for high temperature reflow soldering. Contacts made of phosphor bronze with gold plating for reliable conductivity.

Supports operating voltage up to 1.5 kV and current rating of 3 A per contact. Designed for through hole mounting providing strong mechanical bonding. Operating temperature range from -65°C to 130°C ensures performance in harsh environments.

Pin headers come with tail pin length of 3.05 mm and mating length of 5.84 mm. Complies with CHINA RoHS, EU RoHS, and REACH/SvHC regulations. Manufactured in France with high-quality standards.

This Bergstik Series pin header is ideal for use in industrial, electronic manufacturing, communications equipment, and board interconnection systems. It offers excellent balance of cost-efficiency, reliability, and performance for OEMs and designers.
