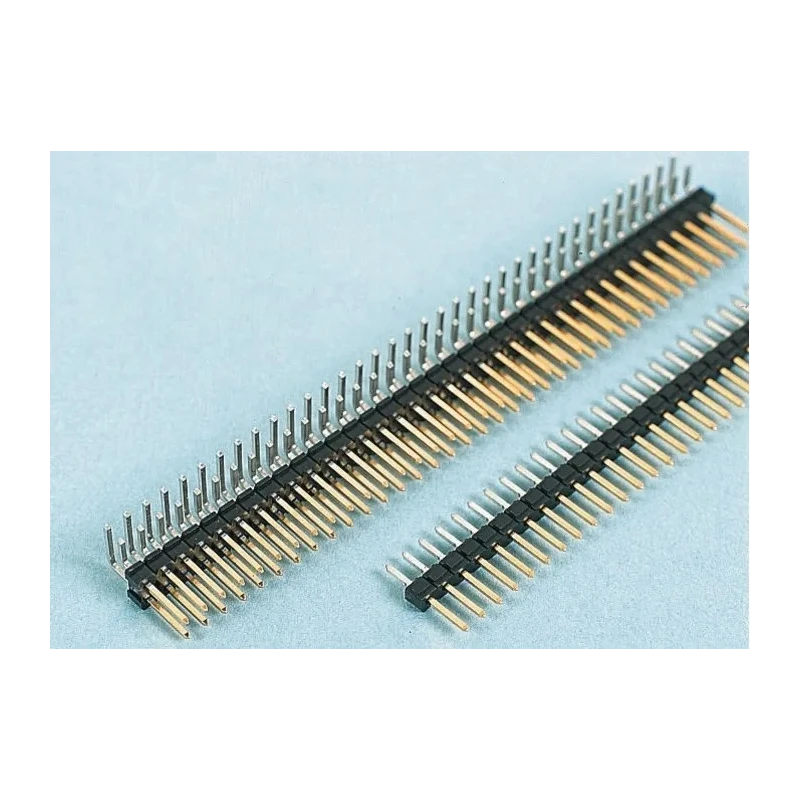

Amphenol Communications Solutions Bergstik Series Right Angle Through Hole Pin Header, 72 Contacts, 2.54 mm 77317-812-72LF

Amphenol Communications Solutions 77317-812-72LF is a Bergstik Series Right Angle Through Hole Pin Header featuring 72 contacts at a 2.54 mm pitch. This component is engineered for board-to-board and wire-to-board connections in electronic assemblies requiring dependable and cost-effective pin header solutions.

The housing is crafted from high temperature thermoplastic material that is compatible with reflow soldering processes, ensuring durability and reliability in manufacturing. Its right angle orientation optimizes PCB layout options while the unshrouded design provides flexibility for various mating connector types.

Contacts constructed from phosphor bronze with gold plating offer excellent electrical performance with resistance to corrosion and wear. The pin header supports a rated current of 3 amperes and can withstand voltages up to 1500 volts, making it suitable for robust electrical applications.

The tail pins measure 3.05 mm in length to facilitate secure soldering onto PCB pads, while the mating pins extend 6.8 mm to ensure reliable connector engagement. Operating temperature tolerance from -65°C to 130°C allows use in various industrial, communication, and electronic equipment environments.

This product is designed to be cut to length, tailoring it to specific design needs. Stand-offs incorporated in the housing permit removal of solder contamination, thereby enhancing quality during assembly. It is part of the Bergstik 2.54 mm standard unshrouded PCB pin header range, compatible with various female connectors including Dubox, Quickie IDC receptacles, and PV series crimp housings.

This pin header supports a current rating of 3 amperes and voltage rating of 1500 volts. The housing is made from a high temperature thermoplastic material that is reflow solder compliant. Right angle orientation maximizes PCB connector arrangement.

Phosphor bronze contacts with gold plating ensure reliable electrical conductivity. Suitable for industrial, communication, and electronic device assembly applications. Operates reliably between -65°C and 130°C. Manufactured in France to strict quality standards.
