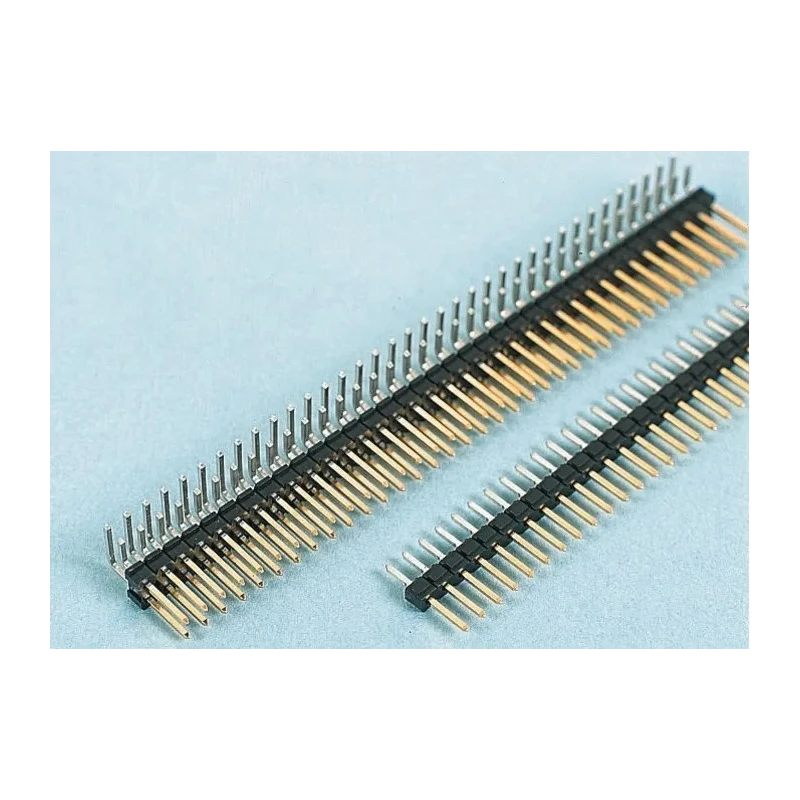

Amphenol Communications Solutions Bergstik Series Right Angle Through Hole Pin Header 36 Contacts 2.54 mm 77315-824-36LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1.5kV |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 3A |
| Model | 77315-824-36LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.85mm |
| Mating Pin Length | 6.75mm |
Key Features
- Constructed with thermoplastic housing rated for high temperature and reflow solder compatible.
- Pins are phosphor bronze with gold plating ensuring reliable conductivity and durability.
- Unshrouded, right angle orientation with 1 row of contacts suited for versatile connectivity.
- Operating temperature range from -65°C to 130°C supports demanding industrial environments.
- Accommodates a maximum voltage rating of 1.5 kV and a current rating of 3 A per contact.
- Tail pin length of 2.85 mm and mating pin length of 6.75 mm enable secure solder termination and connector mating.
- Features cost-effective duplex plating for economical and versatile usage.
- Designed to be cut to length, allowing customization to application needs.
Product Description
Amphenol Communications Solutions 77315-824-36LF Bergstik Series right angle through hole pin header offers 36 male contacts arranged in a single row with 2.54 mm pitch, suitable for board-to-board and wire-to-board connections. Its thermoplastic housing is of high-temperature reflow solder compatible material and includes stand offs to avoid solder contamination. This pin header operates reliably between -65°C and 130°C, and supports a maximum voltage of 1.5 kV and current up to 3 A per contact.
The contacts are manufactured from phosphor bronze and plated with gold, providing excellent electrical conductivity and mechanical strength. The header design includes a tail pin length of 2.85 mm for through-hole soldering and a mating pin length of 6.75 mm for stable connector engagement. Its unshrouded orientation and right-angle configuration make it adaptable to various PCB assembly requirements.
These headers are economically plated with a duplex finish to balance cost and performance and can be cut to the required length to suit specific board layouts. The product is made in France and is ideal for applications in telecommunications, industrial automation, electronic instruments, and other board connector solutions.
Thermoplastic housing with UL 94 V-0 flammability rating. Right angle, unshrouded single-row male pin header. Supports 1.5 kV voltage and 3 A current rating per pin. Phosphor bronze contact material with gold plating for durability.
Operates in temperature range of -65°C to 130°C. Tail pin and mating pin lengths suitable for through-hole soldering and connector mating. Can be customized lengthwise for specific applications. Cost-effective duplex plating offers versatile use.
This Bergstik 2.54 mm pin header is widely used in industrial electronics, communication devices, and various PCB connector applications. It meets robust performance needs for both manufacturing and repair scenarios. Explore more electronic components and connectors in the Electronics Components category at EnvMart.
Explore more products in our PCB Headers category.
