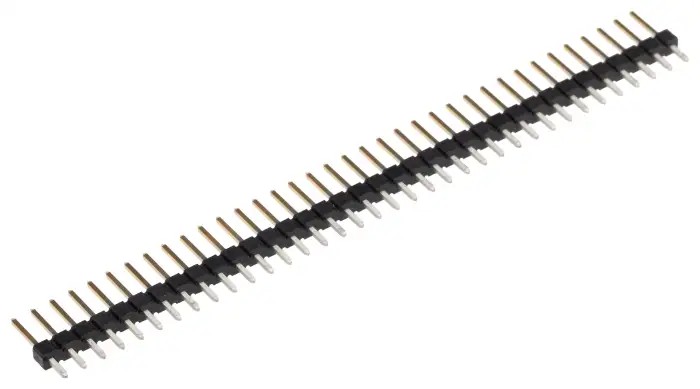

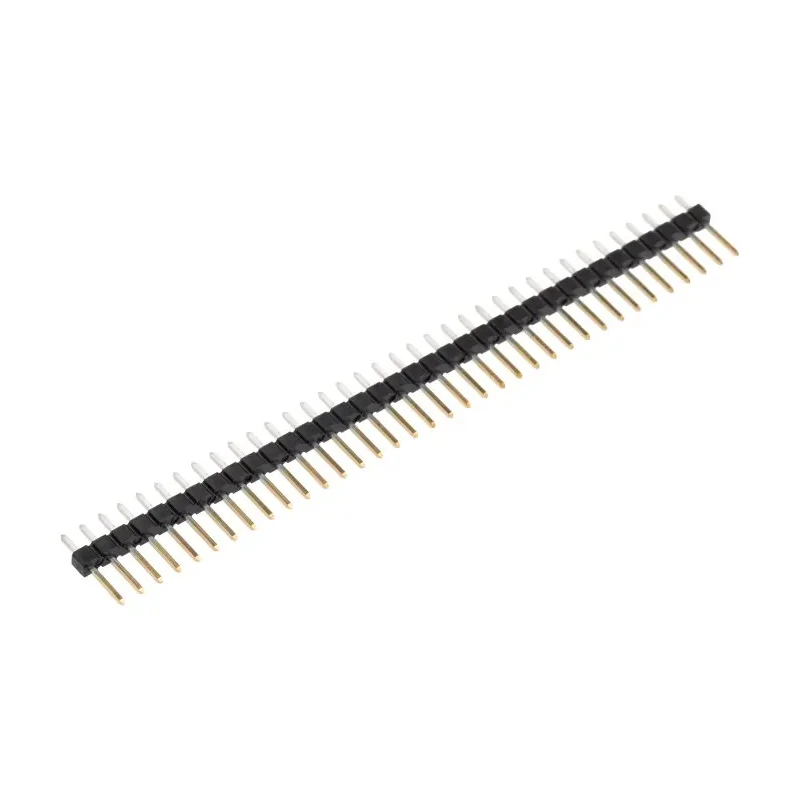

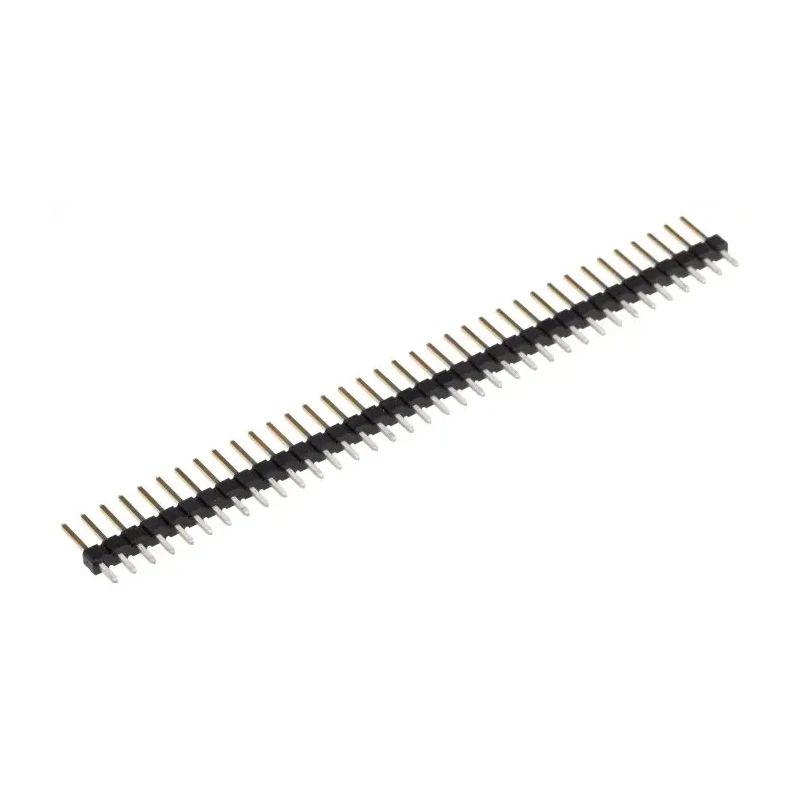

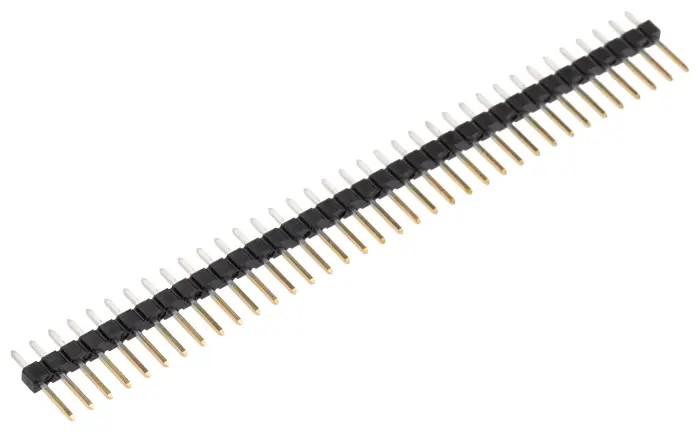

Amphenol Communications Solutions Bergstik Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm 77311-118-36LF

Amphenol Communications Solutions 77311-118-36LF Bergstik Series pin header is a straight, single-row, through hole component designed for PCB applications requiring robust electrical connections. Featuring 36 male contacts spaced at a 2.54 mm pitch, this header is ideal for both board-to-board and wire-to-board interfacing in industrial, telecommunications, consumer electronics, and manufacturing equipment.

The header housing is constructed from high-temperature thermoplastic material compatible with standard reflow soldering processes, ensuring durability and resistance to solder contamination thanks to integrated stand-offs. The phosphor bronze contact pins are plated with gold, providing corrosion resistance and stable electrical conductivity.

The electrical specifications allow a current rating of 3A and a maximum voltage of 1.5kV, suitable for medium-power signal and control applications. The part maintains operational integrity across a wide temperature range from -65°C up to 130°C, making it suitable for various environmental conditions.

With termination by solder and an unshrouded male contact design, the header allows mating with a range of compatible female connectors including Dubox series receptacles, Quickie IDC receptacles, and PV series crimp housings. The tail pin length of 3.05 mm provides sufficient clearance for secure soldering while the mating pin length of 5.84 mm guarantees solid electrical and mechanical connection.

Amphenol's Bergstik PCB Pin Headers provide a cost-effective duplex plating solution, customizable length by cutting to size as per application requirements, and meet key international environmental standards including China RoHS, EU RoHS, and REACH/SvHC for reduced hazardous substance content.

Suitable for board-to-board and wire-to-board electrical connections. Thermoplastic housing compatible with high temperature reflow soldering. Gold-plated phosphor bronze contacts for reliable conductivity. Unshrouded, straight orientation with one row of 36 pins at 2.54 mm pitch.

Electrical rating of 3A current and 1.5kV voltage. Operating temperature from -65°C to 130°C. Compliance with China RoHS, EU RoHS, and REACH/SvHC standards. Versatile connectivity with Dubox, Quickie IDC, and PV series connectors.

This pin header series is extensively used across electronics manufacturing, telecommunications equipment, industrial automation, and other commercial and industrial sectors requiring dependable PCB interconnects. For advanced PCB design and 3D modeling, users can leverage compatible design software and access technical documents and 3D models provided by Amphenol Communications Solutions.
