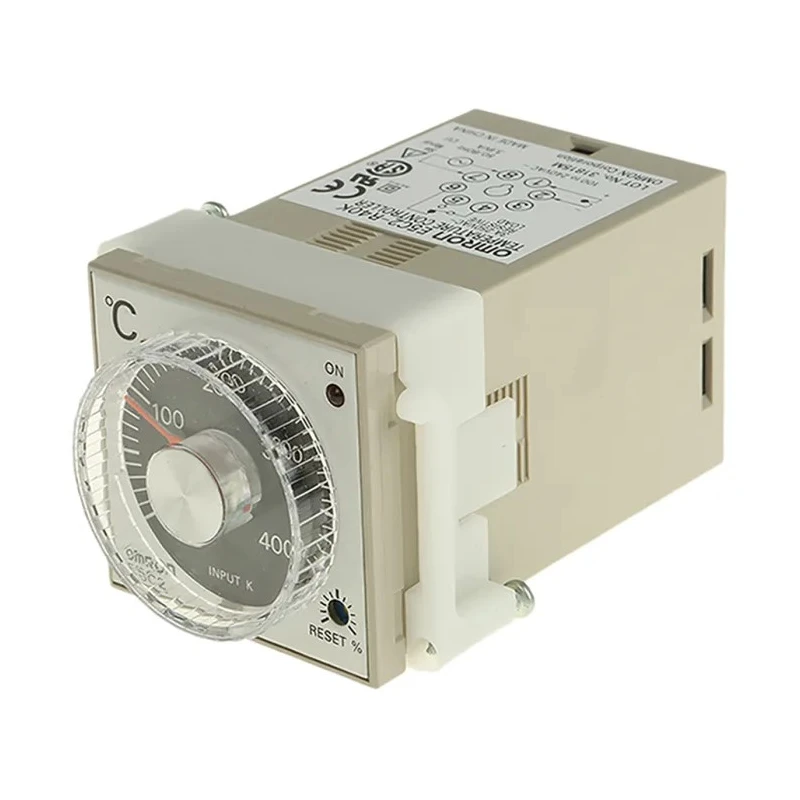

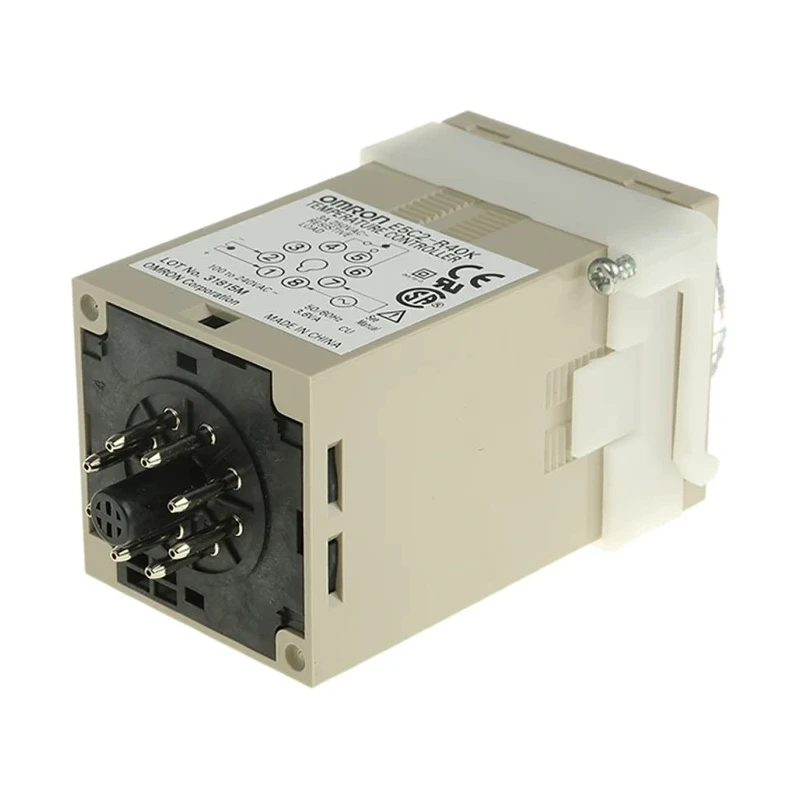

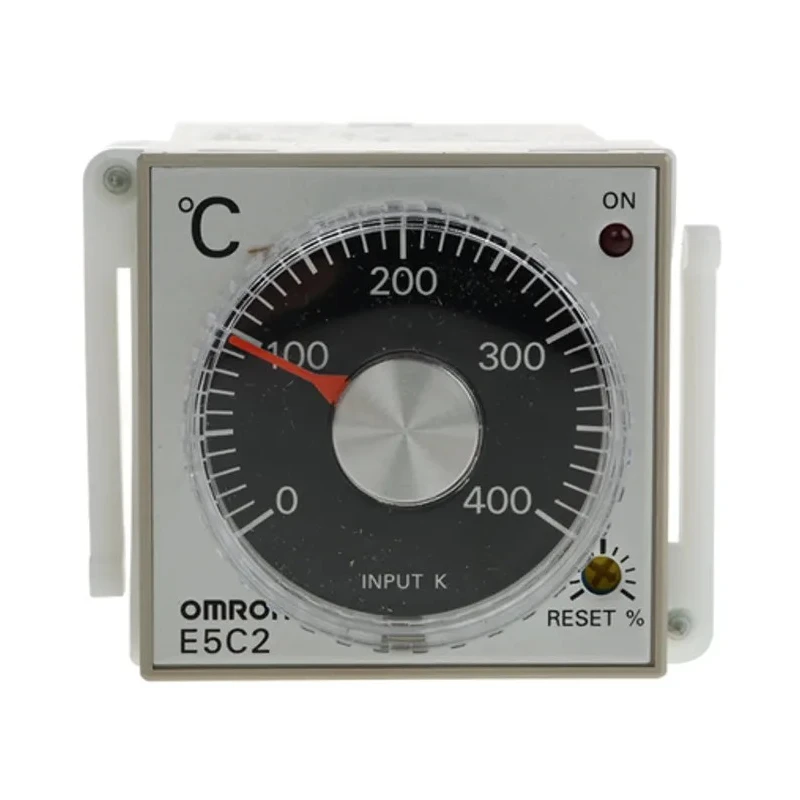

Omron On-Off Temperature Controller with Relay Output 1 Input K Type Thermocouple 100-240V AC E5C2-R40K 100-240VAC 0-400
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Length | 48mm |
| Model | E5C2-R40K 100-240VAC 0-400 |
| IP Rating | IP40, IP00, IP66 |
| Width | 48mm |
| Mount Type | DIN Rail, Flush, Panel |
| Number of inputs | 1 |
| Output type | Relay |
| Series | E5C2 |
| Input Type | K Type Thermocouple |
| Maximum Operating Temperature | 55°C |
| Control Type | Controller |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 3A |
| Number of outputs | 1 |
| Terminal type | Screw |
| Maximum Voltage | 250V |
| Standards/Approvals | IEC Standard |
| Maximum Supply Voltage | 240V ac |
| Panel Depth | 86.7mm |
| Tempatron V7453 Panel On-Off Temperature Controller, 1 Output Relay 24V acBrand | Tempatron |
| 100-120Vac temp controller,0-400 deg CBrand | Omron |
Key Features
- Operates with a wide supply voltage range of 100 to 240V AC.
- Utilizes a K Type thermocouple input for accurate temperature measurement.
- Features one input and one relay output rated for a maximum current of 3A.
- Compact 48mm x 48mm 1/16 DIN size suitable for panel or DIN rail mounting.
- Robust IP66 rating protects against dust and water ingress.
- Easy and secure screw terminal wiring for straightforward installation.
- Effective control of temperatures from -10°C to 55°C.
- Complies with IEC standards ensuring industrial reliability.
Product Description
Omron E5C2-R40K 100-240VAC 0-400 On-Off Temperature Controller is engineered to provide dependable temperature management in various industrial, manufacturing, and HVAC environments. This controller operates with a supply voltage from 100 to 240V AC and utilizes a K Type thermocouple as its sensor input, ensuring precise and responsive temperature measurements.
The device features one input and one output relay capable of handling up to 3A maximum current, making it suitable for controlling heating or cooling equipment. Its compact 1/16 DIN size, with dimensions of 48mm length, 48mm width, and 86.7mm panel depth, allows for efficient mounting on DIN rails or flush panel installations, optimizing space utilization in control panels.
With an IP rating of IP66, this temperature controller offers excellent protection from dust and water ingress, enhancing durability in challenging industrial conditions. The device supports temperature operation within the range of -10°C to 55°C, catering to a range of process control needs including food processing, plastic and rubber manufacturing, and industrial ovens.
Installation is simplified with screw terminal connections, ensuring secure and reliable wiring. Compliant with IEC standards, the Omron E5C2 controller ensures high quality and safety adherence in its design.
Operates over a wide 100-240V AC supply voltage range for versatility. Inputs K Type thermocouple sensors for precise temperature detection. Offers one input and one relay output with a maximum current rating of 3A. Compact 48mm by 48mm size for space-saving panel or DIN rail mounting.
IP66 rating guarantees protection against dust and water ingress. Easy wiring with screw terminals for secure connections. Controls temperature range from -10°C to 55°C for diverse applications. Adheres to IEC standards ensuring reliability and industrial compliance.
This temperature controller is ideal for HVAC systems, food processing and storage controls, plastic and rubber manufacturing, as well as industrial ovens and climate chambers. The precision and robust features make it a trusted choice for process control in industrial automation.
Explore a wide range of precise Temperature Controllers similar to Omron’s E5C2 series at EnvMart to meet your industrial automation needs.
