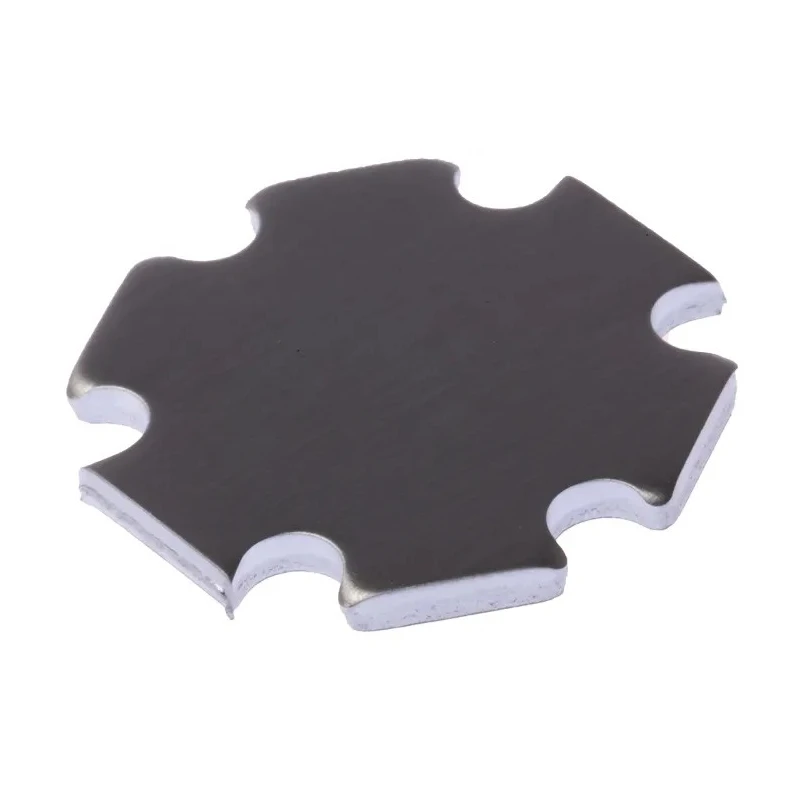

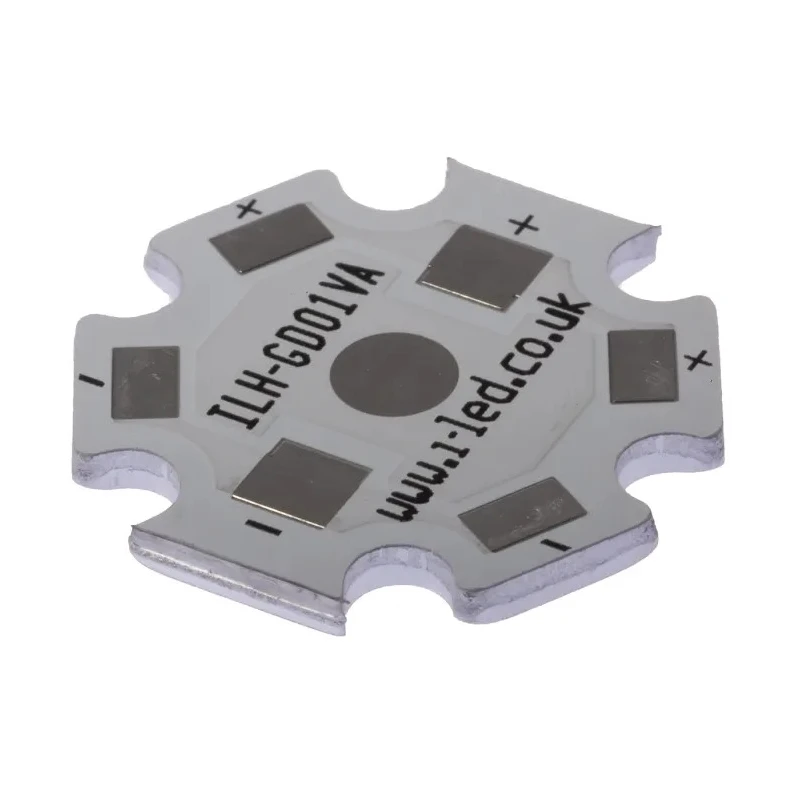

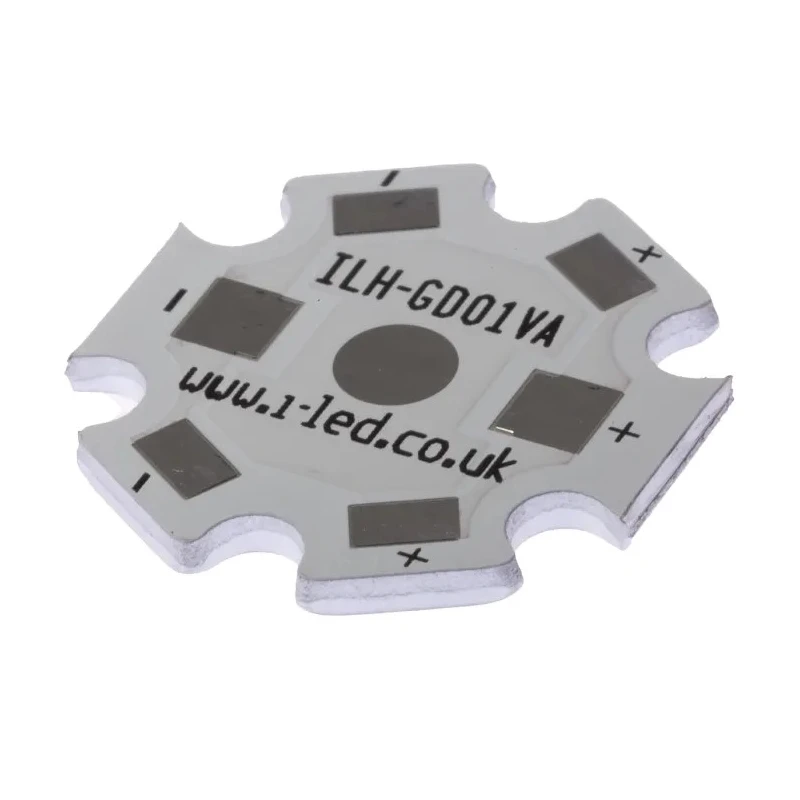

Intelligent LED Solutions ILH Series Self-Adhesive Thermal Gap Pad 1.6 mm Thick 20 mm x 20 mm Metal ILH-GD01-PCB VER A

Free Delivery in India | Lowest Global Shipping Charges

Intelligent LED Solutions ILH Series Self-Adhesive Thermal Gap Pad 1.6 mm Thick 20 mm x 20 mm Metal ILH-GD01-PCB VER A

Name: Intelligent LED Solutions ILH Series Self-Adhesive Thermal Gap Pad 1.6 mm Thick 20 mm x 20 mm Metal ILH-GD01-PCB VER A
Brand: Intelligent LED Solutions
SKU: 148529
Price: 1.65 USD
Availability: InStock



Category Thermal Pads Brand Intelligent LED Solutions Condition New

Specifications

Country of Origin	China
Diameter	20mm
Brand	Intelligent LED Solutions
THICKNESS	1.6mm
Length	20mm
Model	ILH-GD01-PCB VER A
Width	20mm
Series	ILH
Maximum Operating Temperature	155°C
Minimum Operating Temperature	-240°C
Conductive Material	Metal

Key Features

The pad is self-adhesive for easy installation and optimal placement.
Constructed from metal material offering effective heat conduction.
Designed to maintain LED die temperatures allowing higher forward currents.
Compatible with single LED bare PCBs, specifically Osram Dragon 20mm x 20mm.
Supports maximum operating temperatures up to 155°C and minimum up to -240°C.
Improves power density and overall durability of LED assemblies.
Suitable for applications in entertainment lighting, general lighting, spot lighting, and task lighting.

Product Description

Intelligent LED Solutions ILH-GD01-PCB VER A thermal gap pad is a self-adhesive, metal conductive pad with a thickness of 1.6 mm and size dimensions of 20 mm by 20 mm. It is designed specifically for thermal management in LED assemblies, improving heat dissipation and enabling higher forward currents for enhanced light output.

This thermal gap pad uses insulated metal substrate technology known as metal clad printed circuit boards, providing efficient heat conduction for LED bare PCBs including Osram Dragon 20 mm x 20 mm models. Its self-adhesive nature allows for quick and precise installation in LED lighting fixtures.

The pad is rated for a maximum operating temperature of 155°C and can withstand temperatures as low as -240°C, making it suitable for various industrial and commercial LED lighting applications. It enables lower LED die temperatures thereby increasing power density and product durability.

Industry certifications and compliance include IEC 62471:2006 for photobiological safety, EN 55015 for electromagnetic compatibility, and other IEC/EN standards relevant to LED components and lighting safety regulations.

Typical use cases encompass entertainment lighting, general illumination, spot and task lighting where reliable thermal management is critical for performance and longevity. The pad is self-adhesive for secure placement in LED assemblies.

Metallic conductive material ensures efficient heat transfer. Helps maintain lower LED die temperatures for improved power density. Compatible with single LED bare PCB formats like Osram Dragon 20mm x 20mm. Durable construction suited for commercial and industrial LED lighting.

Complies with multiple IEC and EN standards to ensure safety and performance. Can operate in temperature ranges from -240°C to 155°C.

This product serves the LED lighting market, from entertainment systems to general lighting infrastructures, providing critical thermal management solutions that enhance performance and reliability. Explore more Thermal Pads and LED components at EnvMart for your electronic and lighting hardware needs.
