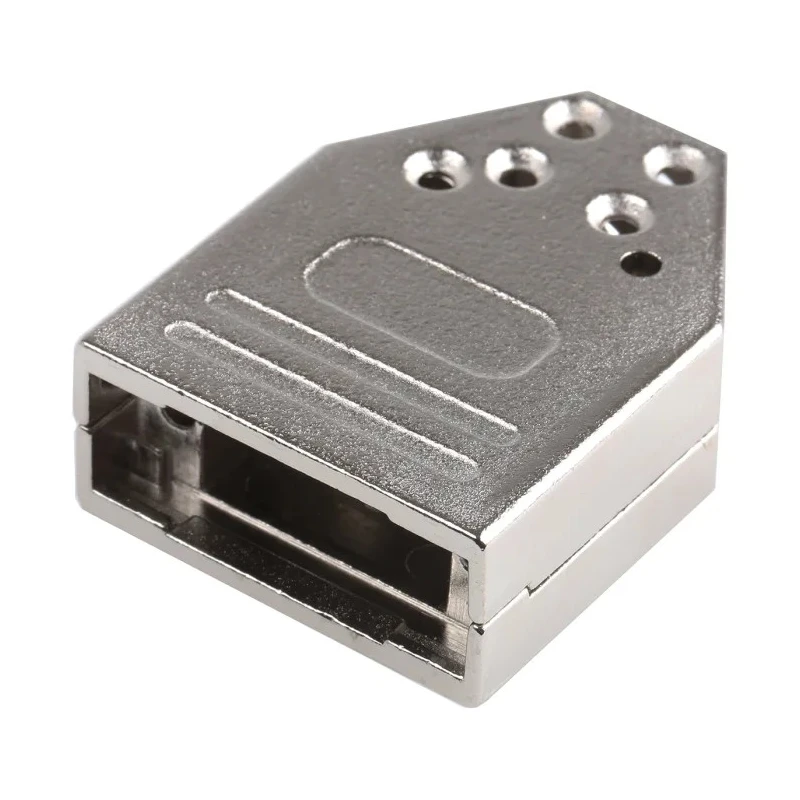

MH Connectors MHDTZI Series Zinc Straight D-Sub Backshell 9 Way Strain Relief 6560-0305-01
Specifications
| Country of Origin | India |
|---|---|
| Brand | MH Connectors |
| Colour | Silver |
| Orientation | Straight |
| Housing Material | Zinc |
| Series | MHDTZI |
| Number of Contacts | 9 |
| Connector Type D | D-Sub Backshell |
| D-Sub Shell Size | E |
| Housing Plating | Metallised |
| MH Connectors Polyamide D Sub BackshellBrand | MH Connectors |
Key Features
- Constructed from diecast zinc for high durability and shielding performance.
- Includes plastic strain relief inserts to secure cable integrity.
- Features nickel plating for corrosion resistance and meets VDE0781 and FCC207 shielding requirements.
- Designed with a straight orientation to fit standard D-Sub shell size E connectors.
- Supplied with metal 4-40 UNC thumbscrews and full installation instructions.
- Provides greater than 40 dB attenuation from 30 MHz to 1 GHz range.
- Silver color with metallised housing plating for professional finish.
- Compatible with cable diameters ranging from 3.5 mm to 13 mm.
Product Description
MH Connectors 6560-0305-01 is a zinc diecast straight D-Sub backshell designed for 9-way connectors, providing effective strain relief and shielding for electronic and industrial applications.
This backshell is manufactured from high-quality zinc material, nickel plated to ensure corrosion resistance. It incorporates plastic strain relief inserts that protect cables from mechanical stress, enhancing longevity and reliability.
The backshell meets important industry standards including VDE0781 and FCC207, offering shielding performance with attenuation greater than 40 dB within the frequency range of 30 MHz to 1 GHz. It supports cable diameters between 3.5 mm and 13 mm, suitable for various wiring requirements.
Its straight orientation and shell size E design ensures compatibility with standard D-Sub connectors, making it ideal for industrial, electronic component assemblies, communication devices, and power connectors.
The product is completed with metal 4-40 UNC thumbscrews and detailed installation instructions for secure and easy mounting. Constructed from diecast zinc for high durability and shielding performance. Includes plastic strain relief inserts to secure cable integrity.
Nickel plating provides corrosion resistance and meets VDE0781 and FCC207 standards. Designed for straight orientation and shell size E D-Sub connectors. Provides over 40 dB attenuation from 30 MHz to 1 GHz for effective EMI shielding.
Includes metal thumbscrews and full installation instructions. Compatible with cable sizes from 3.5 mm to 13 mm.
This MH Connectors backshell is suitable for electrical and electronic industries, including use in power connectors, data transmission equipment, and manufacturing applications requiring reliable strain relief and EMI protection. It is a new product made in India, guaranteed for quality and performance.
Browse the selection of D-Sub connectors and backshell solutions on EnvMart for compatible product options and accessories.
Explore more products in our D-Sub Backshells category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is constructed from diecast zinc, providing durability and effective shielding performance.
It features a straight orientation, designed to fit standard D-Sub shell size E connectors.
The backshell provides greater than 40 dB attenuation from 30 MHz to 1 GHz, meeting important shielding requirements.
It is compatible with cable diameters ranging from 3.5 mm to 13 mm.
The housing features nickel plating to ensure corrosion resistance.
It is supplied with metal 4-40 UNC thumbscrews and full installation instructions for secure mounting.
It meets VDE0781 and FCC207 shielding requirements, ensuring compliance with industry standards.
The backshell is silver in color with a metallised housing plating for a professional finish.
This model supports 9 contacts, suitable for various electronic applications.
It is manufactured in India, ensuring quality and performance.
It is suitable for electrical and electronic industries, including power connectors and data transmission equipment.
The housing type is a D-Sub backshell, specifically designed for shell size E connectors.
