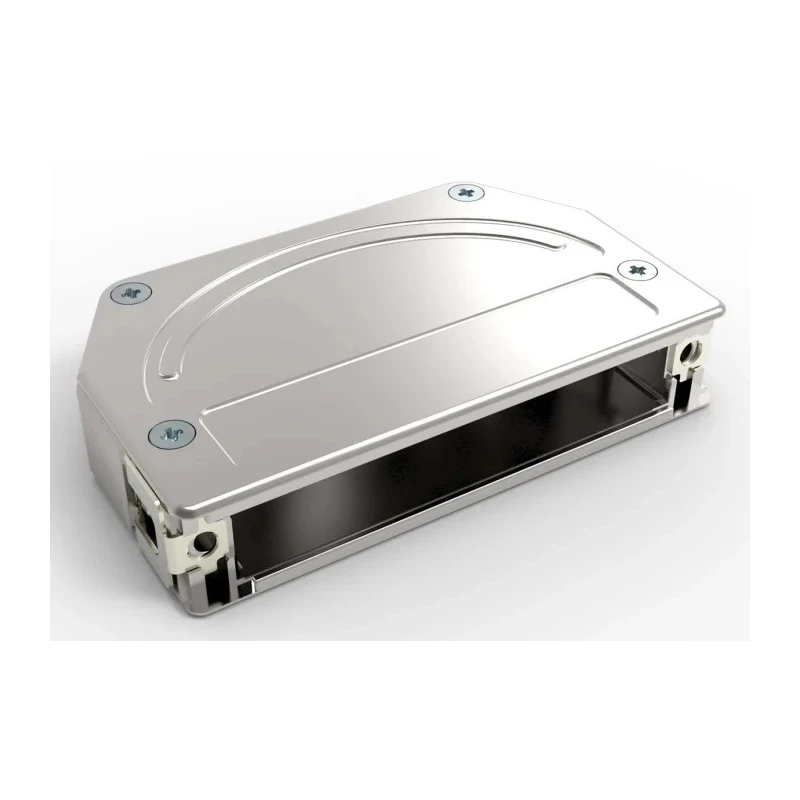

TE Connectivity Zinc Angled D-Sub Backshell Strain Relief C Shell Size 1-2308330-1

Category D-Sub Backshells Brand TE Connectivity Condition New

Specifications

Country of Origin Germany
Brand TE Connectivity
Colour Silver
Orientation Angled
Housing Material Zinc
Interfaces Ethernet
Connector Type D D-Sub Backshell
D-Sub Shell Size C
Housing Plating Zinc

Key Features

  • Constructed from durable zinc housing with zinc plating for corrosion resistance.
  • Angled orientation supports easier cable routing and strain relief.
  • Quick Lock pins enable squeeze-to-release mechanism for effortless assembly.
  • Provides 360-degree EMI/EMC shielding suitable for EN50155 compliant systems.
  • Compatible with crimp and screw strain relief options to suit various cable diameters.
  • Available with multiple cable exit angles including 225°, 180°, and 135° within one hood.
  • Ideal for harsh environment data systems, railway, and industrial Ethernet applications.
  • Designed for easy retrofitting into existing D-sub connector systems.

Product Description

TE Connectivity 1-2308330-1 Zinc Angled D-Sub Backshell Strain Relief is a high-quality, full-metal hood designed for use with D-sub miniature connectors. Manufactured from zinc with zinc plating, it provides robust mechanical protection and excellent corrosion resistance. This backshell features an angled orientation to facilitate cable management and strain relief in complex assemblies.

The unique Quick Lock pins enable a squeeze-to-release locking mechanism, eliminating the need for screws and simplifying installation. The design offers 360-degree electromagnetic interference (EMI) and electromagnetic compatibility (EMC) shielding, making it suitable for demanding EN50155 systems such as railway communications and other industrial Ethernet applications.

This backshell supports two strain relief methods: crimp and screw. Crimp strain relief requires additional crimp flanges and barrels sized according to cable diameter, while screw strain relief uses appropriately sized cable clamps. The hood includes three cable exit angle options - 225°, 180°, and 135° - within one unit, allowing flexible cable routing in confined spaces.

Applications include harsh environment data systems, railway signaling, industrial Ethernet networks, and other demanding communications systems. Its all-metal construction ensures durability and reliable shielding against EMI and EMC disruptions encountered in industrial and transportation environments.

Durable zinc housing with zinc plating provides corrosion resistance and mechanical protection. Angled backshell design accommodates diverse cable exit angles and routing requirements. Quick Lock pins allow easy, tool-less assembly and retrofitting in existing systems.

360° EMI/EMC shielding ensures signal integrity in electrically noisy environments. Crimp and screw strain relief options are compatible with multiple cable diameters. Widely used in railway, industrial Ethernet, and harsh environmental data systems.

Set yourself up for success in demanding industrial and transportation field applications with TE Connectivity's Zinc Angled D-Sub Backshell strain relief solutions. Explore a wide range of reliable electrical components and accessories in the connectors category at EnvMart.

Explore more products in our D-Sub Backshells category.

TE Connectivity Zinc Angled D-Sub Backshell Strain Relief C Shell Size 1-2308330-1
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The housing material of this model is zinc, which provides mechanical protection and corrosion resistance due to its zinc plating.

This backshell features an angled orientation, which facilitates easier cable routing and strain relief.

Yes, it is designed for use in demanding railway communications systems and other industrial Ethernet applications.

It provides 360-degree electromagnetic interference (EMI) and electromagnetic compatibility (EMC) shielding, suitable for EN50155 compliant systems.

The colour of this model is silver, which is typical for zinc-plated components.

The country of origin for this backshell is Germany.

The Quick Lock pins enable a squeeze-to-release mechanism, simplifying the assembly process by eliminating the need for screws.
