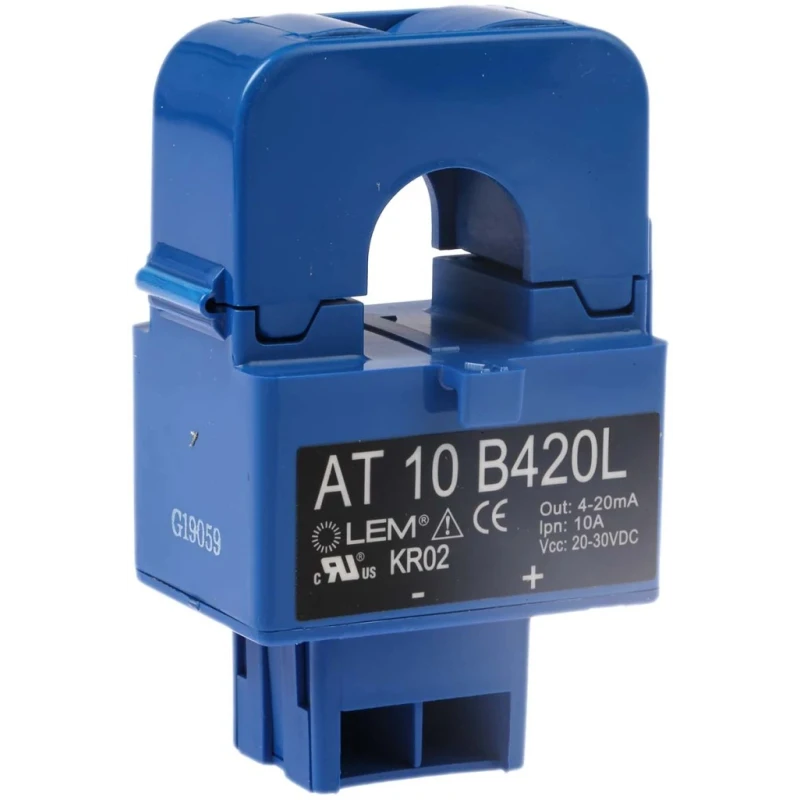

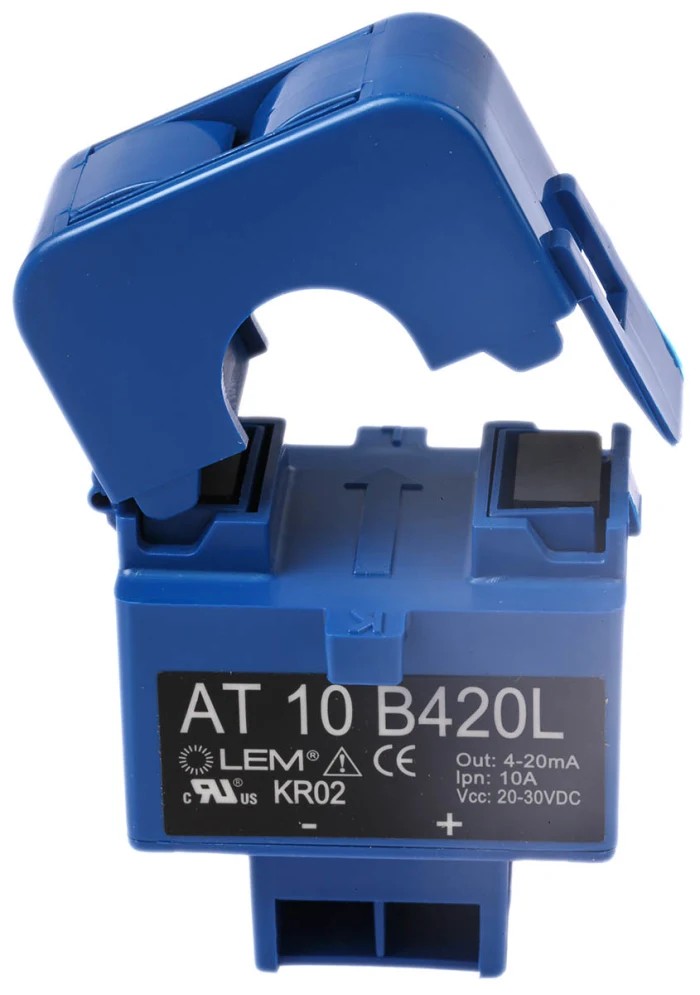

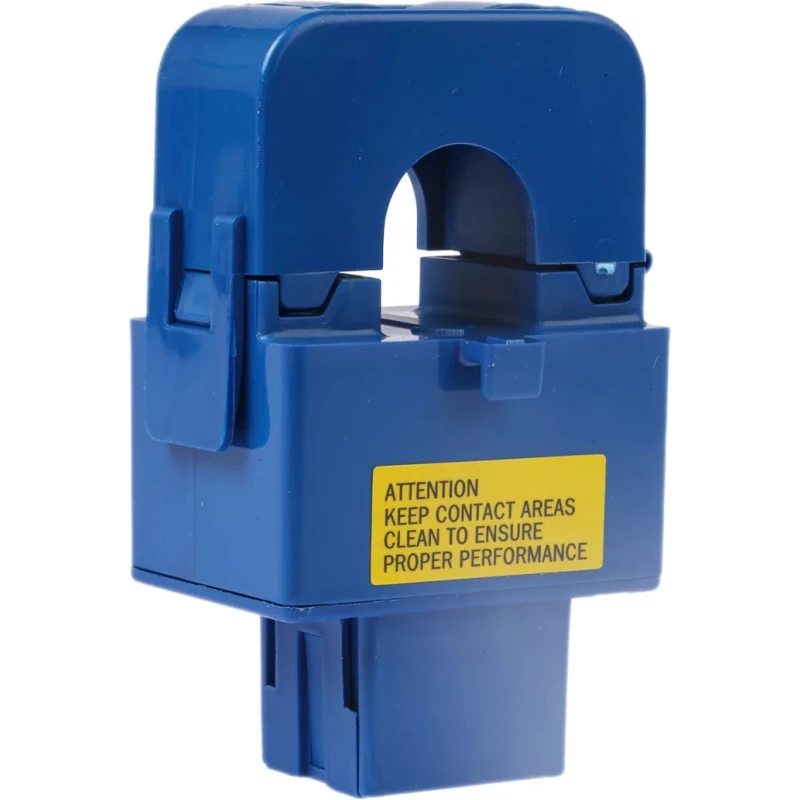

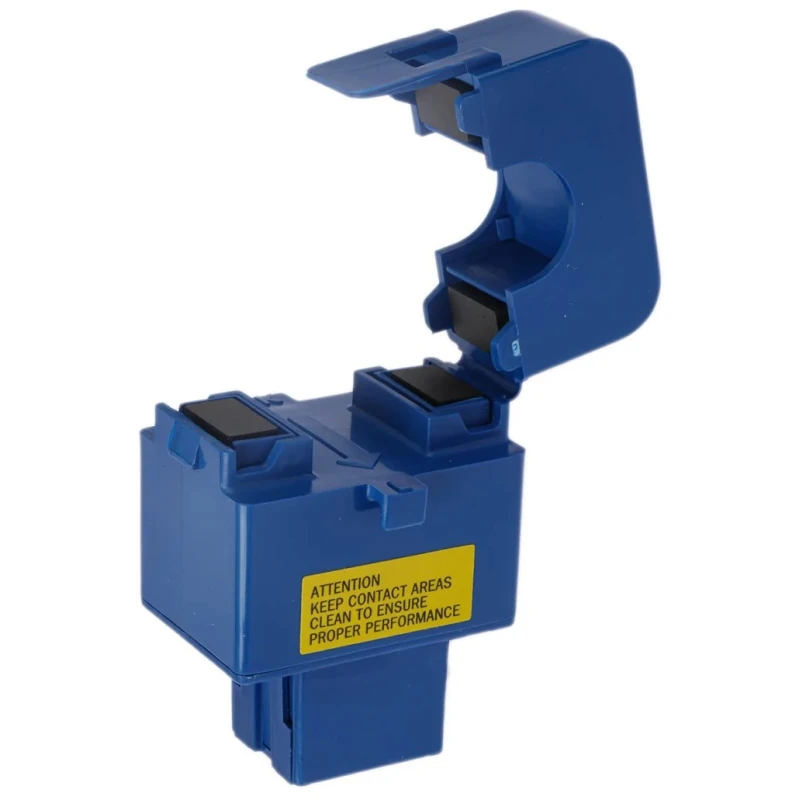

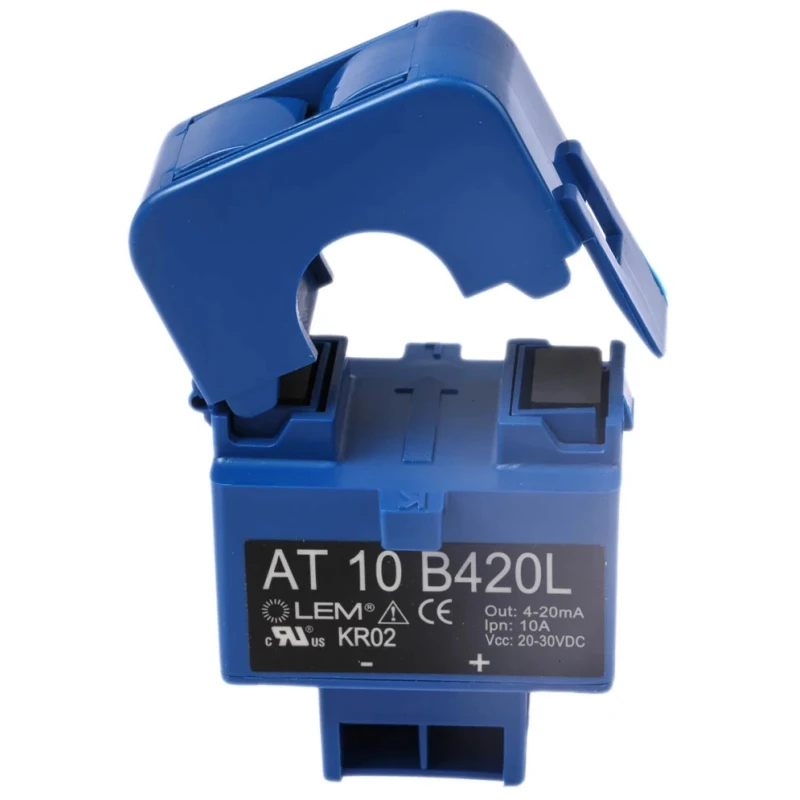

LEM AT-B420L Series Current Transformer 10A 20V dc, 30V dc 16mm Bore AT 10 B420L

LEM AT 10 B420L Series Current Transformer is an advanced electronic sensor designed for precise measurement of alternating current with galvanic isolation between the primary and secondary circuits. This model features a 16 mm bore diameter suitable for accommodating cables, and offers a primary current rating of 10 amperes with supply voltages of 20V and 30V dc.

This current transformer employs an M3 connector terminal type ensuring reliable and secure electrical connections suitable for industrial and automation applications. Its compact form factor with dimensions 51 mm length, 40.5 mm width, and 36.5 mm depth makes it ideal for installation in constrained spaces.

The device can reliably operate within a temperature range spanning from -20°C up to 60°C, making it suitable for varying environmental conditions in industrial, manufacturing, process control, and automation scenarios. It meets critical industrial safety and quality standards, complying with IEC 61010-1 and UL 94-V0, ensuring dependable and safe operation.

The LEM AT-B420L Series outputs a secondary current of 20.4 mA, providing precise RMS value measurement essential for current sensing in process control instrumentation and electrical system monitoring. Its compact design and standard compliance make it widely applicable in electrical automation, test and measurement, and energy management systems.

High accuracy current measurement with galvanic insulation. Suitable for primary current of 10 amperes. Operates with supply voltage of 20V and 30V dc. Compatible with cables up to 16 mm bore diameter. Equipped with M3 connector terminal type for secure connections.

Compact dimensions: 51 mm length, 40.5 mm width, and 36.5 mm depth. Wide operating temperature range from -20°C to 60°C for diverse environments. Complies with IEC 61010-1 and UL 94-V0 safety standards.

This Current Transformer is ideal for industrial automation, laboratory measuring instruments, electrical power monitoring, and process control systems, providing robust and isolated current sensing solutions. Explore the range of LEM transformers to find precise and reliable current measurement components for your industrial or commercial applications at EnvMart.
