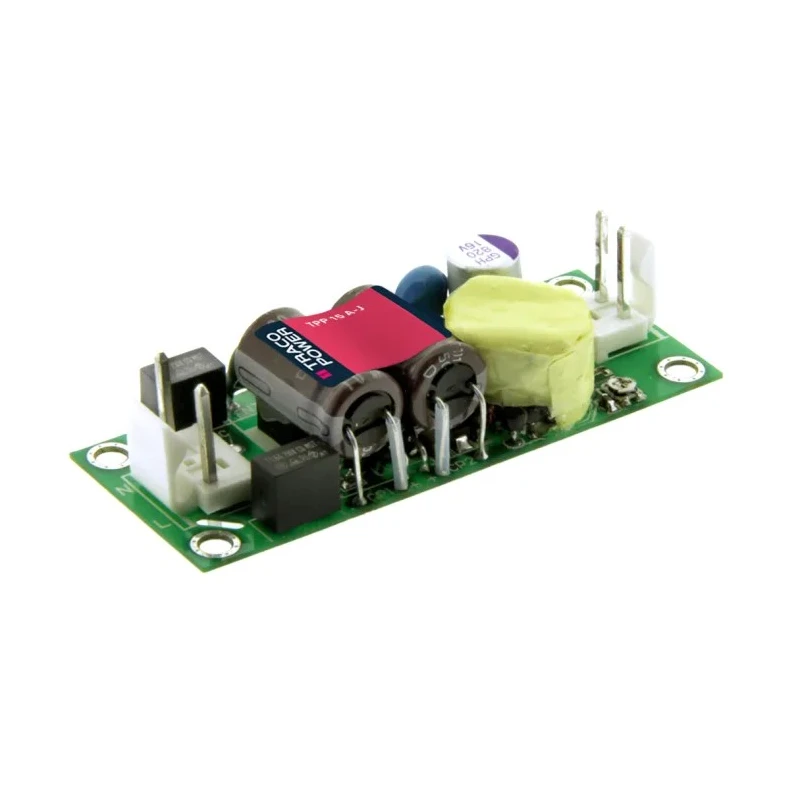

TRACOPOWER Switching Power Supply 48V DC, 15W, 85°C Operating Temp, Chassis Mount TPP 15-148A-J

TRACOPOWER TPP 15-148A-J switching power supply is a compact, high-efficiency 15 watt power supply designed for delivering 48V DC output through a chassis mount configuration. It targets industrial and medical applications where reliable, isolated power delivery is critical.

This product supports a wide input voltage range of 85V AC to 264V AC and operates over a broad temperature range from -40°C to 85°C. With its reinforced double I/O isolation system certified for medical safety standards IEC/EN/ES 60601-1 3rd edition, it provides 2 x MOPP protection, making it suitable for body floating (BF) applications with leakage current below 75 μA.

The unit measures 66.2 mm in length, 25.4 mm in width, and 15.7 mm in depth, weighing only 19 grams. Its efficiency level III and 89% energy efficiency rating ensure energy-conscious power conversion in compact packaging.

This power supply complies with multiple international standards including ANSI/AAMI ES 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, IEC 62368-1, and UL 62368-1. It is ideal for demanding industrial, laboratory, medical, and electronic equipment requiring a reliable isolated DC power source with robust safety certifications.

Additional features include a single output delivering 300mA current and robust construction allowing safe operation at altitudes up to 5000 meters.

This TRACOPOWER unit provides a trusted power solution for medical instrumentation, laboratory devices, and other industrial electronics demanding certified, efficient switching power supplies.

Provides a maximum output voltage of 48V DC with a single output. Operates efficiently with an energy efficiency level of III and 89% efficiency rating. Designed for a broad temperature range between -40°C and 85°C, suitable for demanding environments.

Has a compact chassis mount design with dimensions 66.2mm length, 25.4mm width, and 15.7mm depth. Features reinforced double I/O isolation meeting medical safety standards IEC/EN/ES 60601-1 for 2 x MOPP. Low earth leakage current below 75 μA suitable for BF (body floating) medical applications.

Supports input voltage range from 85V AC to 264V AC for versatile deployment. Certification includes ANSI/AAMI ES 60601-1, EN 60601-1, IEC 60601-1, UL 62368-1, ensuring compliance with multiple safety standards. Lightweight unit weighing only 19 grams for easy integration in applications.

Originates from Taiwan Province of China assuring quality manufacturing standards. Browse EnvMart to explore more quality Switching Power Supplies and power components suitable for industrial, medical, laboratory, and electronic applications.
