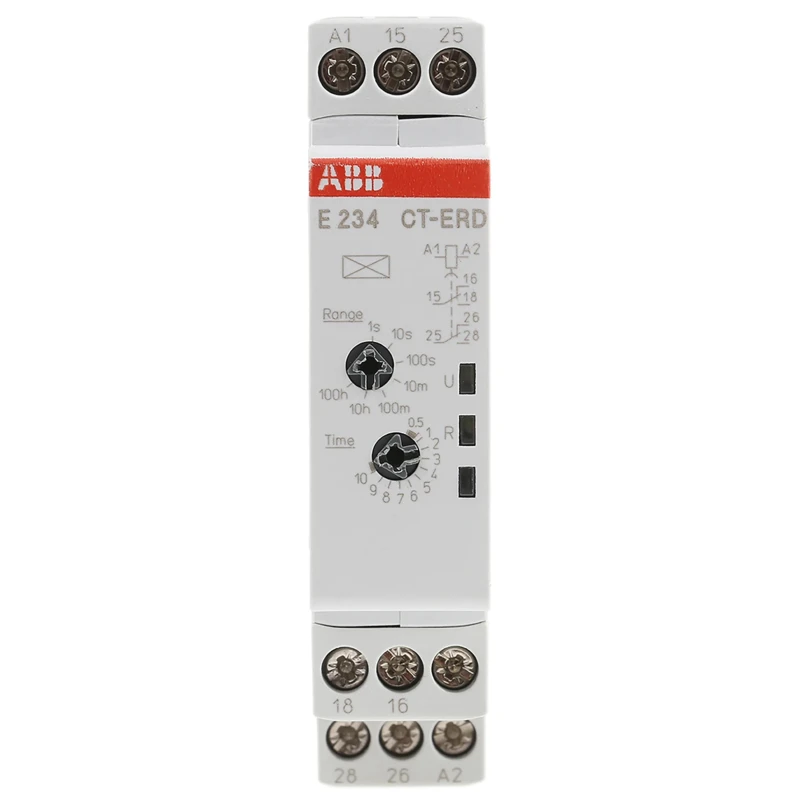

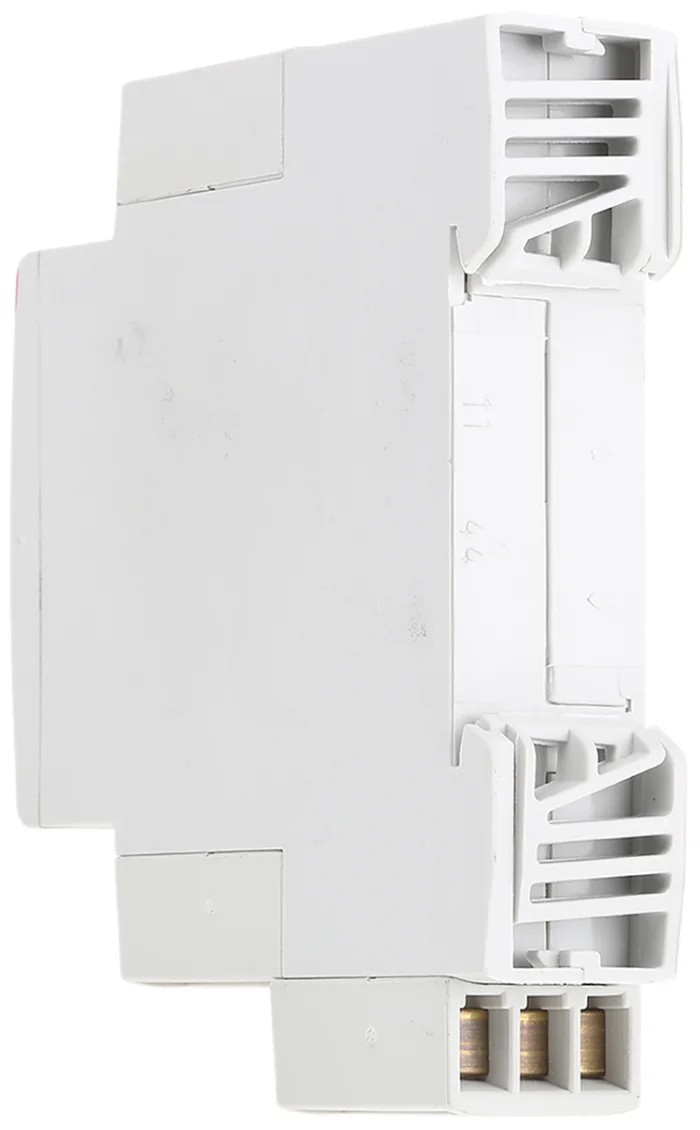

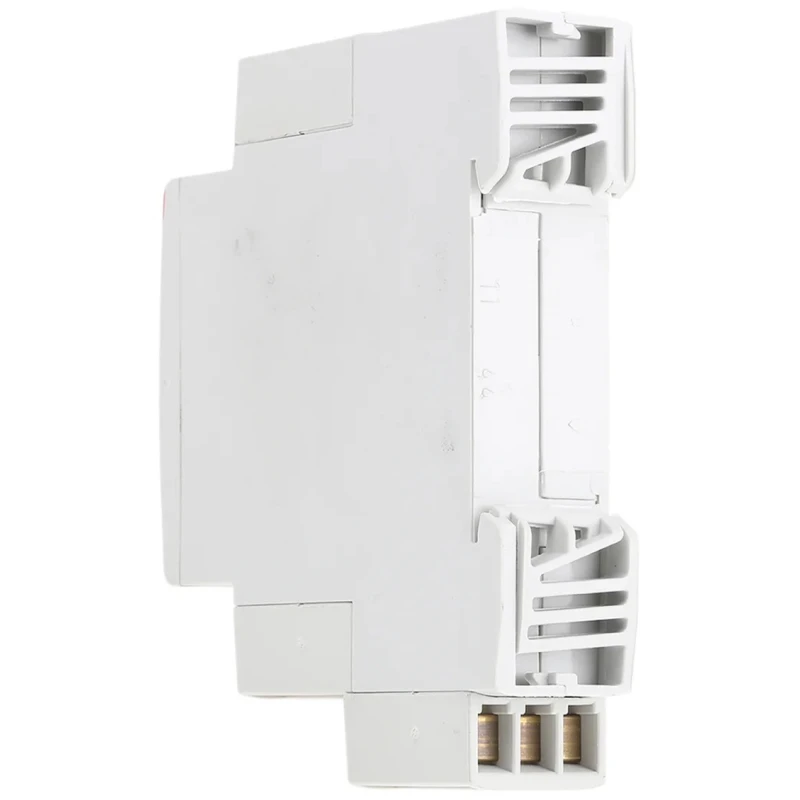

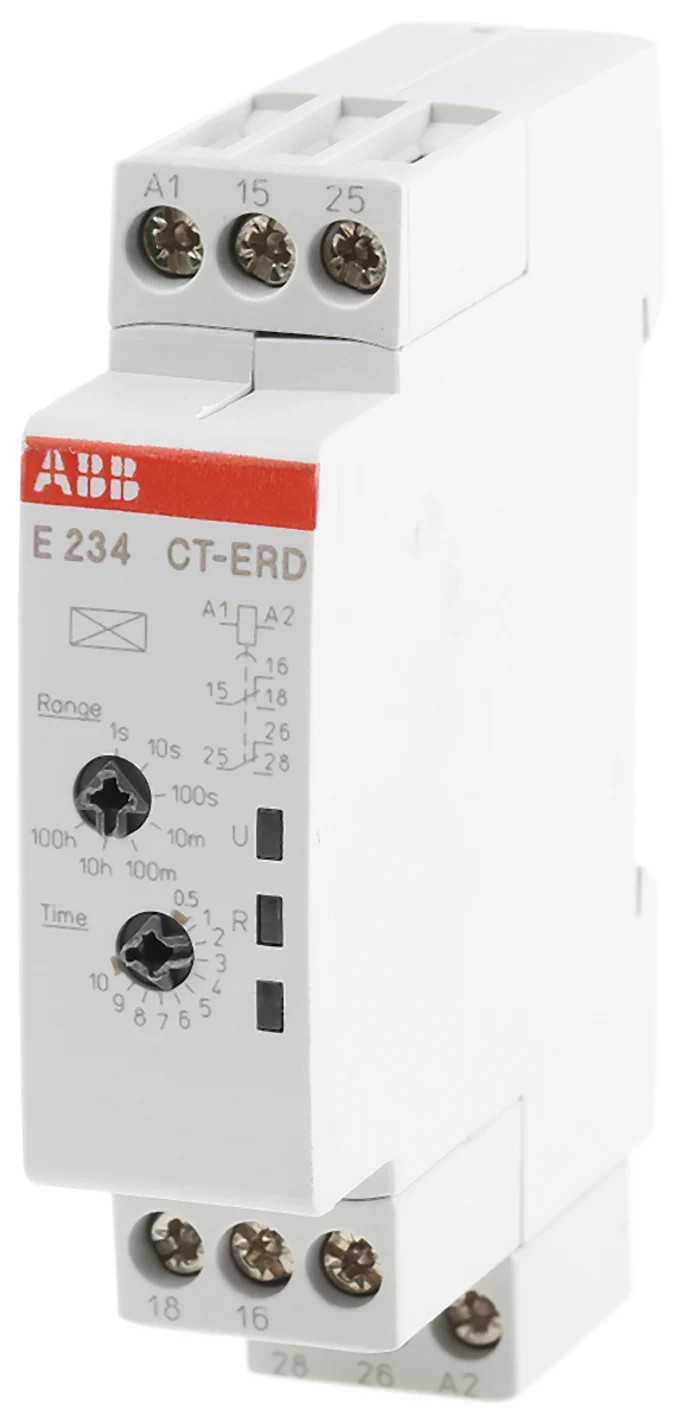

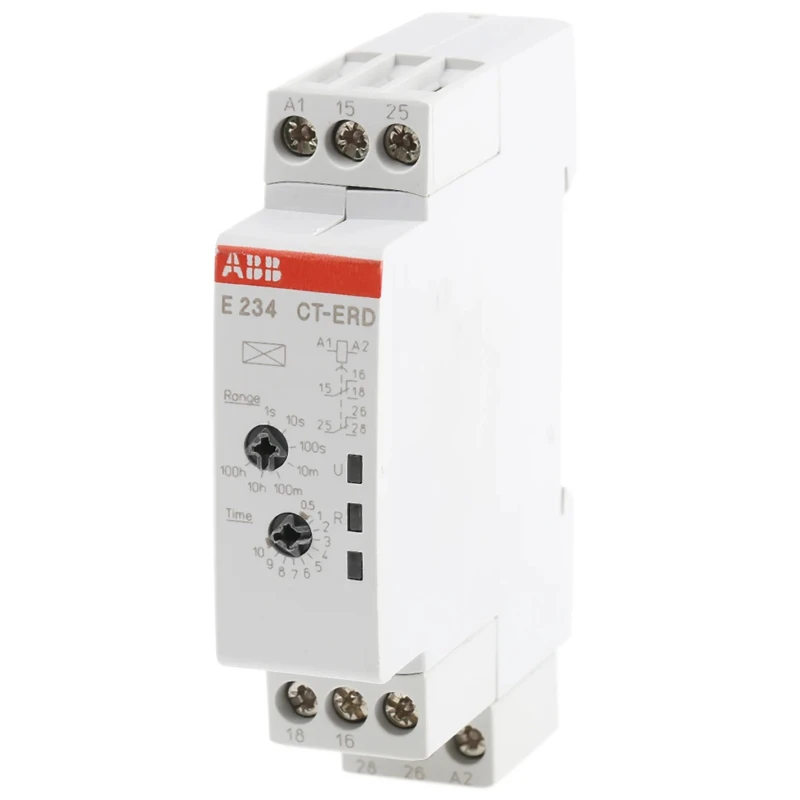

ABB 1SVR Series DIN Rail Timer Relay, 2-Contact, 48 V dc 24V ac 240 V ac, 0.05 s to 100 1SVR500100R0100 - CT-ERD.22,1SVR5001
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Brand | ABB |
| Height | 63mm |
| Length | 63mm |
| Model | 1SVR500100R0100 - CT-ERD.22,1SVR5001 |
| IP Rating | IP50 |
| Mode | ON Delay |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | 1SVR |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.05 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | RoHS, CE |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Switching Voltage | 12V |
| Contact Current | 3A |
| Supply DC Voltage | 48 V dc |
| Timing Adjustment | Screwdriver Slot |
| Supply AC Voltage | 24, 240V ac |
Key Features
- The timer relay mounts securely on DIN rails for ease of installation.
- Wide operating voltage range supports 24 to 240 V AC and 24 to 48 V DC power supplies.
- Features a precise ON-delay function for controlled automation timing.
- Switching voltage rated at 12V with a contact current capacity of 3A ensures reliable switching.
- Compact size with dimensions 17.5 mm width, 63 mm height, and 63 mm length conserves panel space.
- Durable screw terminals provide secure and easy wiring connections.
- Rated IP50 for protection against dust and low ingress of solids.
- Operates safely within -20 °C to 60 °C temperature range for versatile application.
Product Description
ABB 1SVR500100R0100 - CT-ERD.22,1SVR5001 DIN Rail Timer Relay is designed for precise timing control in various industrial, commercial, and automation systems. Supporting power inputs from 24 to 240 V AC and 24 to 48 V DC, this timer relay is versatile and suitable for a range of installations requiring reliable timing functions.
The single-function ON-delay timer offers adjustability from 0.05 seconds up to 100 hours, enabling fine-tuned control to match specific application requirements. The relay's compact dimensions (17.5 mm width, 63 mm height, 63 mm length) facilitate efficient space utilization in electrical panels.
The device features two SPDT contacts rated for 3A current at a switching voltage of 12V. Screw-type terminals ensure a secure, stable connection, simplifying wiring processes in the field. The relay conforms to IP50 standards, providing protection against dust ingress in typical industrial environments.
Operating safely between -20 °C and 60 °C, this timer relay is robust enough for various environmental conditions encountered in manufacturing, HVAC control, process automation, and safety interlock applications. The product complies with RoHS and CE standards, ensuring it meets essential environmental and safety regulations.
The DIN rail mounting format offers straightforward integration into standard electrical assemblies. Precise ON-delay timing enhances automation sequences in machinery and process control. SPDT contact configuration provides circuit switching flexibility for versatile applications.
Reliable switching current and voltage ratings support dependable operation. Compact and rugged design suited for industrial use cases.
This ABB timer relay is ideal for industrial automation, mechanical equipment control, lighting and HVAC sequencing, as well as safety interlocks designed to prevent unauthorized activations. Its adjustable timing range makes it adaptable for complex control tasks in manufacturing and process control systems.
Explore more ABB Timer Relays and related components in the Electronics & Electricals category on EnvMart for complete automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a timing adjustment range from 0.05 seconds to 100 hours, allowing for precise control in various applications.
It has a single-function configuration with two SPDT contacts, rated for a contact current capacity of 3A.
The timer relay supports a wide operating voltage range, accommodating 24 to 240 V AC and 24 to 48 V DC power supplies.
Its dimensions are 17.5 mm in width, 63 mm in height, and 63 mm in length, making it compact for installation in electrical panels.
It is rated IP50, providing protection against dust ingress and low levels of solid particles.
The maximum operating temperature is 60 °C, allowing it to function in various environmental conditions.
Timing adjustment is made using a screwdriver slot, allowing for easy configuration to meet specific application needs.
The timer relay complies with RoHS and CE standards, ensuring it meets essential environmental and safety regulations.
It features screw-type terminals, which provide secure and stable connections for wiring.
The minimum operating temperature is -20 °C, allowing it to operate effectively in colder environments.
It is suitable for various applications including industrial automation, HVAC control, lighting sequencing, and safety interlocks.
The switching voltage is rated at 12V, ensuring reliable operation within its specified limits.
