Siemens Contactor 230V AC Coil, 2-Pole, 20 A, 2.6 W Power Rating 5TT5000-8

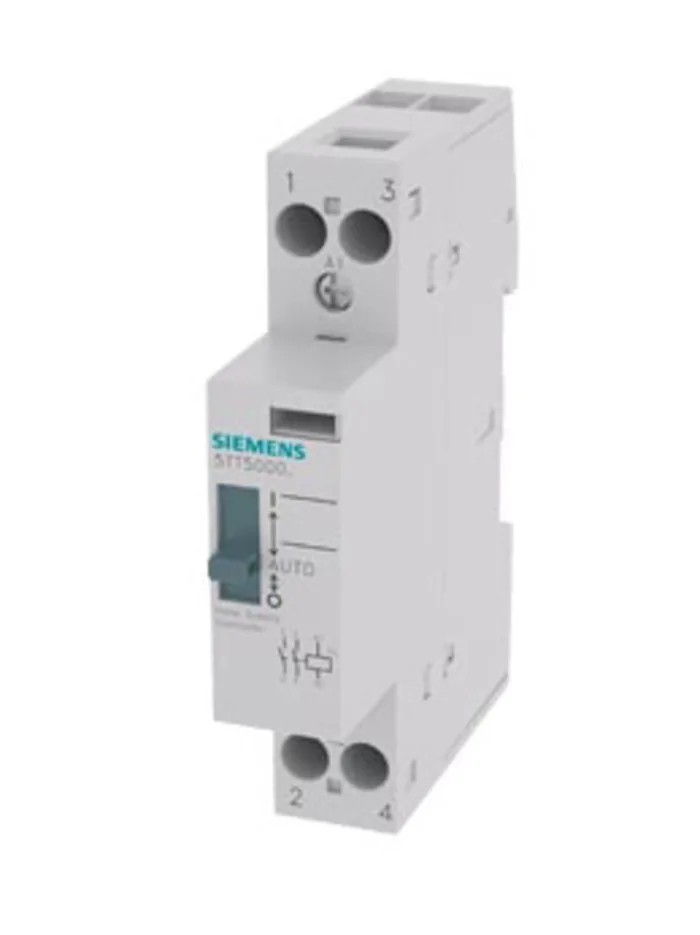

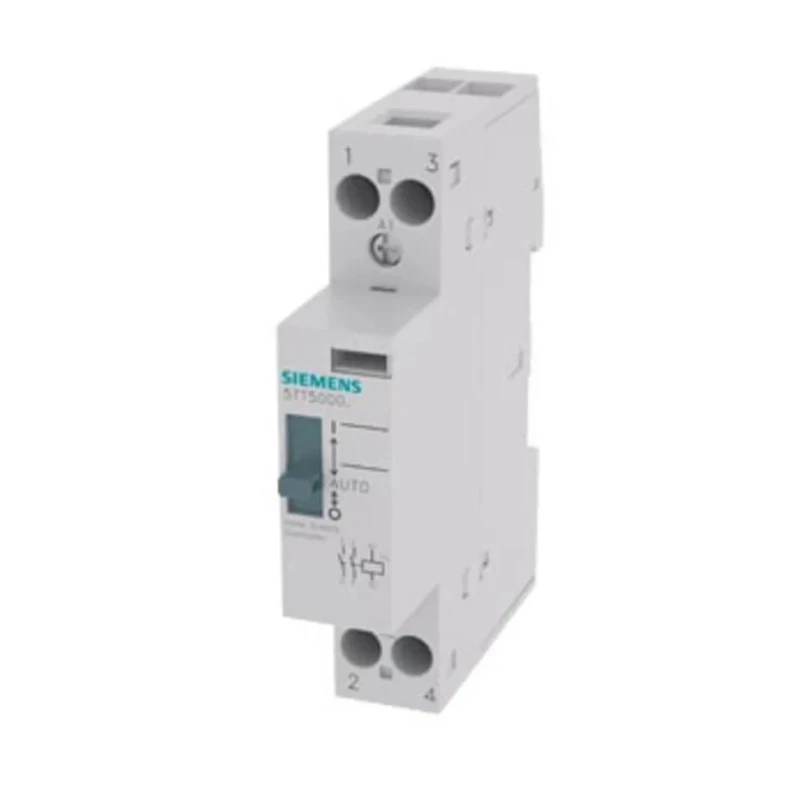

Name: Siemens Contactor 230V AC Coil, 2-Pole, 20 A, 2.6 W Power Rating 5TT5000-8
Brand: Siemens
SKU: 147616
Price: 146.13 USD
Availability: InStock



Category Contactor Brand Siemens Condition New

Specifications

Country of Origin	Slovenia
Brand	Siemens
Function	Motor Control
Length	17.5mm
Model	5TT5000-8
Depth	74.6mm
Width	90mm
Mount Type	Screw
Series	5TT
Power Rating	2.6W
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-15°C
Terminal type	Screw
Number of Poles	2
Standards/Approvals	CE, CSA, cUL, EAC, IEC, RoHS
Contact Voltage	230V ac
Coil Voltage	230V ac
Normal State Configuration	2 NO
Contact Current	20A
Number of Auxiliary Contacts	2
Operational Current Ie	20A
Control Circuit Voltage Uc	230V ac
Contactor Application	Motor Control
Pole and Throw Configuration	DPST

Key Features

Equipped with a 230V AC coil for reliable power management.
Features 2 poles and 2 normally open contacts for versatile switching.
Power rating of 2.6 W ensures efficient operation.
Mount type is screw to provide secure installation.
Operating temperature ranges from -15°C to 55°C for flexible usage conditions.
Complies with CE, CSA, cUL, EAC, IEC, and RoHS standards for safety and quality.
Ideal for industrial and automation motor control systems.

Product Description

Siemens 5TT5000-8 contactor is a high-quality switching device with a 230V AC coil designed for robust motor control in industrial and automation applications. It features a 2-pole design with 2 normally open contacts and 2 auxiliary contacts, delivering a contact current rating of 20 A and a power rating of 2.6 W.

This contactor is built with screw terminal types for secure connections and a screw mount type for stable installation. It is designed to operate reliably within a temperature range from -15°C to 55°C, suited for a wide range of environments. The device meets stringent industry standards including CE, CSA, cUL, EAC, IEC, and RoHS to ensure compliance and safety.

Compact dimensions of 74.6mm depth, 17.5mm length, and 90mm width make it suitable for integration in control panels where space is a consideration. The 5TT series contactors are ideal for the on/off switching of single-phase and three-phase motors with motor control applications, as well as for infrastructure and industrial uses.

Additional features include switching position indication for easy status recognition and operational use in electrical motor control circuits. The symmetrical load handling capability allows simultaneous switching of lamp loads at various phases using a single contactor.

Equipped with a 230V AC coil for power control and actuation. Two poles and two normally open contacts provide flexible application options. Built to meet multiple international approvals ensuring quality and reliability.

Suitable for motor control in industrial, manufacturing, automation, and HVAC systems. Designed for manual switch testing without control voltage application. Compact and robust construction with screw mount and terminal types.

Operational temperature range ensures versatility in different environments.

This Siemens 5TT contactor is a dependable solution for industrial automation and electrical control gear projects. Explore EnvMart for more Contactors and Siemens electrical components to suit your system requirements.
