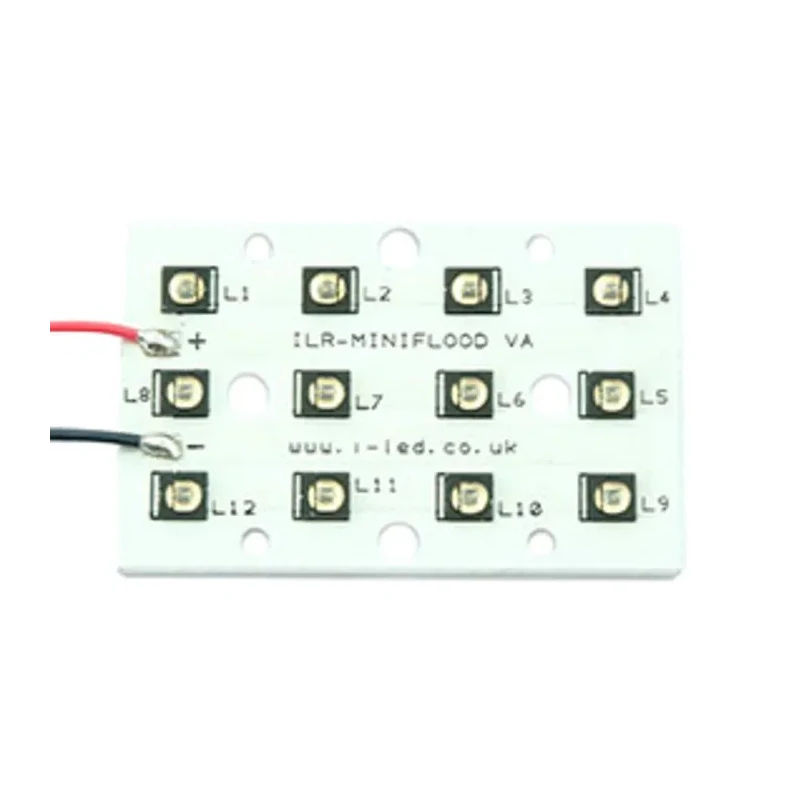

Intelligent LED Solutions ILR-IW12 850 nm IR LED Surface Package ILR-IW12-85SL-SC221-WIR200.

Intelligent LED Solutions ILR-IW12-85SL-SC221-WIR200. IR LED Surface Package emitting at a peak wavelength of 850 nm. This high-performance component features 12 OSRAM IR OSLON Black Series LEDs, recognized as the smallest infrared LEDs delivering over one watt of optical power each.

The compact rectangular lens package with an integrated lens design achieves superior power density while maintaining a small form factor suitable for dense and compact optical arrangements. The unit is surface-mounted with 2 pins and incorporates aluminium substrates that contribute to excellent thermal management, crucial for maintaining LED performance and longevity.

The device offers a radiant intensity of 15,240 mW with a 75° angle of half intensity, ensuring efficient infrared illumination for a variety of industrial and electronic applications. It is rated for a maximum supply voltage of 38.4 V and supports operating currents ranging from 100 mA nominal to pulses up to 5 A for demanding burst performance.

With a product lifetime exceeding 100,000 hours to 70% original brightness, this IR LED package is engineered for long-term reliability in applications including industrial sensing, surveillance, machine vision, and other infrared illumination uses.

The package features mounting holes designed for M3 screws facilitating easy and secure installation. Standard 200 mm wiring length enables flexible integration into custom electronic assemblies. Additionally, secondary lenses and compatible heat sinks are available to tailor optical and thermal characteristics to application-specific requirements.

This IR LED product is CE-certified, ensuring compliance with European quality and safety standards. Made in United Kingdom, it offers trusted quality and performance for high-demand electromechanical and electronic component needs.

Features 12 OSRAM IR OSLON Black Series LEDs delivering over one watt of optical power per LED. Compact rectangular lens design with a 75° angle of half intensity. Surface mount package with 2 pins and integrated lenses for superior power density.

Operates up to a maximum supply voltage of 38.4 V with radiant intensity of 15,240 mW. Offers up to 100,000 hours lifetime at 70% original brightness for reliable long-term use. Designed with aluminium substrates for optimal thermal management.

Standard 200 mm wiring for ease of installation and connection. Mounting holes compatible with M3 screws for secure fixture mounting. Secondary lenses and matching heat sinks available to customize output and thermal control.

Capable of current pulse operation from 100 mA to 5 A for flexible application needs.

This IR LED package is ideal for industrial, electronics, laboratory, and machine vision applications requiring compact, powerful infrared illumination. Explore related components and other LED solutions in the Electronics Components category on EnvMart for further integration and system design.
