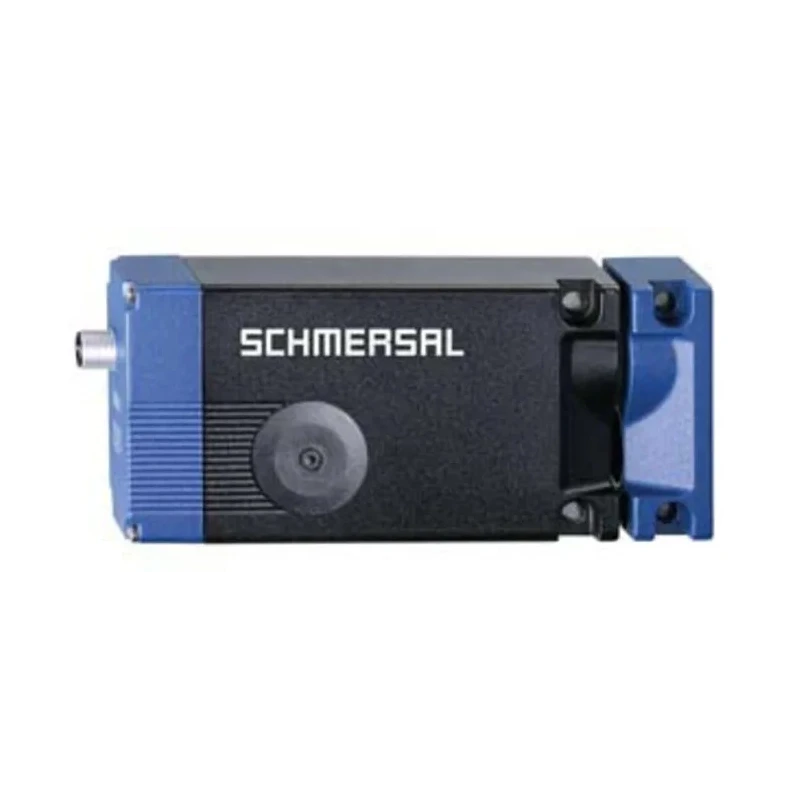

Schmersal RFID Solenoid Interlock Switch Die Cast Housing 24V DC 2 NO Contacts M12 AZM400Z-ST-1P2P

Free Delivery in India | Lowest Global Shipping Charges

Schmersal RFID Solenoid Interlock Switch Die Cast Housing 24V DC 2 NO Contacts M12 AZM400Z-ST-1P2P

Name: Schmersal RFID Solenoid Interlock Switch Die Cast Housing 24V DC 2 NO Contacts M12 AZM400Z-ST-1P2P
Brand: SCHMERSAL
SKU: 147375



Category Safety Interlock Switch Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Length	166.7mm
Model	AZM400Z-ST-1P2P
Connection Type	M12
Depth	46.7mm
IP Rating	IP66, IP67
Width	77.8mm
Housing Material	Die Cast
Series	AZM400Z
Actuator Type	Magnetic
Safety Category	4
Switching Current	50mA
Terminal type	M12
Sensor Principle	RFID
Body Style	Rectangular
Standards/Approvals	TUV, cULus, EAC, CE
Switching DC Voltage	24V dc
Housing Colour	Blue, Black
Safety Contacts	2 NO
Switching Distance	30 mm

Key Features

Durable die-cast aluminium housing ensures corrosion resistance.
Operates at 24V DC with low switching current of 50 mA for energy efficiency.
Equipped with 2 normally open (2 NO) safety contacts for reliable control.
Rated IP66 and IP67 for dust tightness and water immersion protection.
Compact rectangular design measuring 166.7 mm length by 77.8 mm width and 46.7 mm depth.
Utilizes M12 connection and terminal type for secure installation.
Complies with IEC 60947-5-1 international standards for control circuit devices.
Includes TÜV, cULus, EAC, CE approvals ensuring global safety compliance.

Product Description

Schmersal AZM400Z-ST-1P2P RFID Solenoid Interlock Switch features a robust die-cast aluminium rectangular housing designed to safeguard industrial machinery by preventing operation when access doors are open.

This model functions at 24V DC and incorporates RFID technology for tamper-proof safety interlocks, providing enhanced security for automated machinery. The switch is equipped with 2 normally open safety contacts, ensuring safe control circuit integration.

The device offers compact dimensions (166.7 mm length, 77.8 mm width, 46.7 mm depth) and robust ingress protection with IP66 and IP67 ratings, guarding against dust ingress and water immersion up to 1 meter for 30 minutes. Its magnetic actuator design and M12 connectors support reliable and straightforward installation.

Engineered to meet IEC 60947-5-1 standards and approved by TÜV, cULus, EAC, and CE, this interlock switch ensures compliance with international safety regulations. Its electrical specifications include a switching current of 50 mA and a switching distance of 30 mm.

Durable die-cast housing for corrosion resistance and long service life. RFID-based non-contact actuation for secure and tamper-resistant operation. Compact rectangular design suitable for space-limited applications. IP66, IP67 rated for harsh industrial environments.

Suitable for use in hazardous areas and gas plants. Compliant with international safety and performance standards. Mechanical life expectancy of 1,000,000 operations guarantees reliability. Low power consumption enhances energy efficiency and reduces operational costs.

M12 connection supports secure wiring and installation. Ideal for process automation, packaging machinery, and industrial safety systems.

Made in Germany, Schmersal’s AZM400Z-ST-1P2P interlock switch balances safety, durability, and advanced RFID technology for demanding industrial safety applications. Browse more Safety Interlock Switches and Schmersal products at EnvMart.
